E5471NO1

E5471NO1

SKU DOR5976357
by Dormer Pramet
Primary Use: Possible Use:

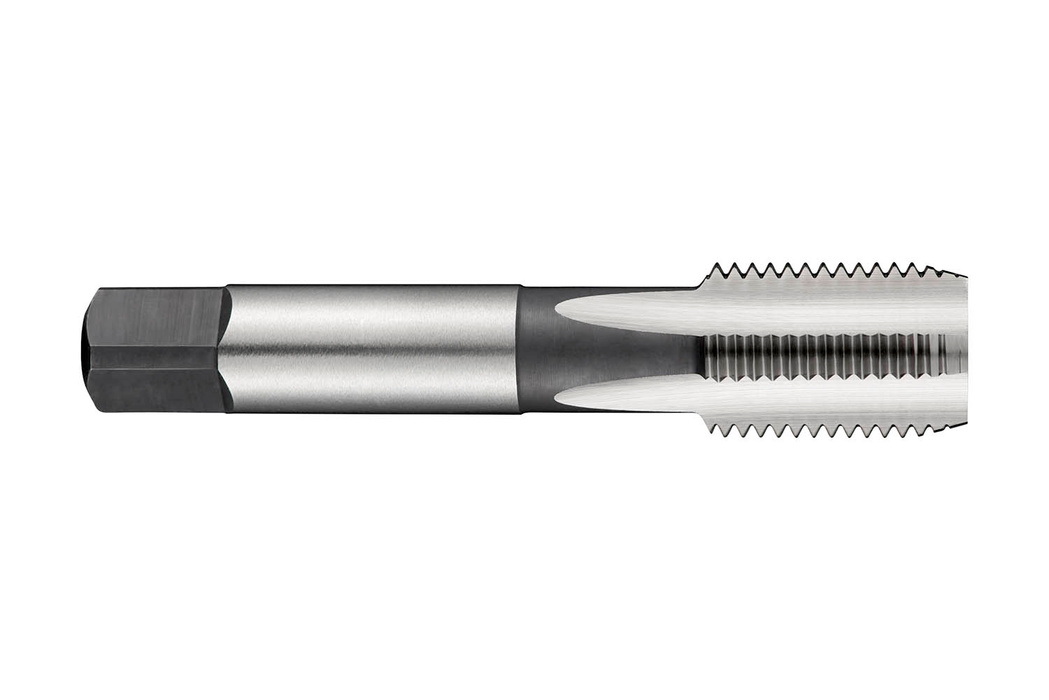

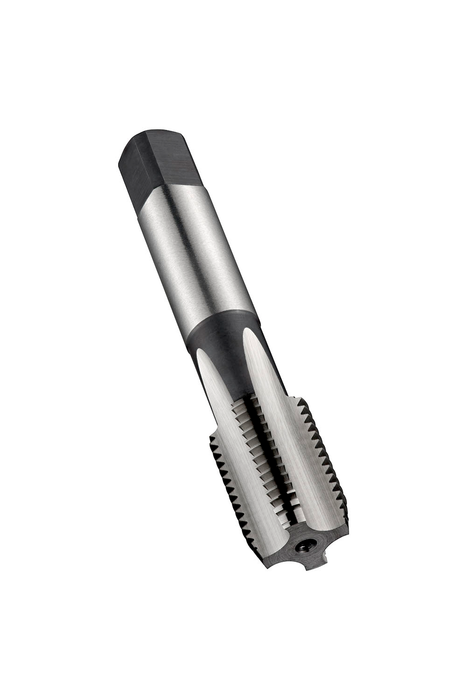

Straight flute hand tap NO1 with a 6-8xP taper lead, for British Standard Pipe thread G 1" with 11 TPI and Normal class of fit, dimensions according to ISO 2284 standard with 25.0mm shank and 20.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$224.79 - $224.79
$224.79
$224.79 - $224.79
$224.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

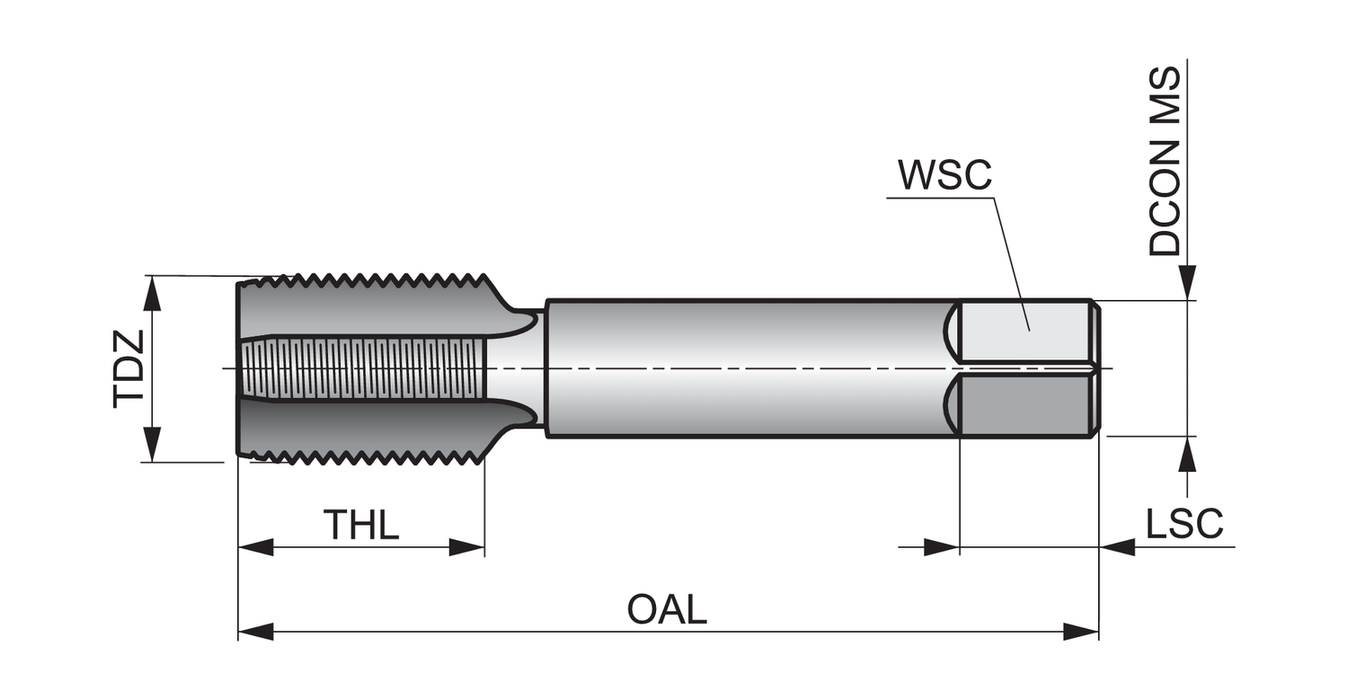

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 4.2913

Connetion Diameter: 0.9843

Tool Direction: Right

Diameter Size: 1"

Thread Diameter - in: 1.309

Thread Diameter - mm: 33.249

TPI: 11.0

Thread Form: G - British standard pipe fastening - G series

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 157312

EAN: 7320760157312

MFG Part Number: 5976357
