E5331/4BLUE

E5331/4BLUE

SKU DOR5976488
by Dormer Pramet
Primary Use: Possible Use:

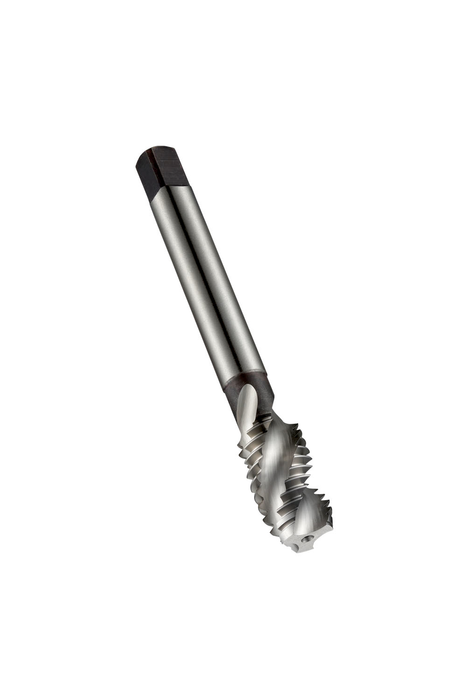

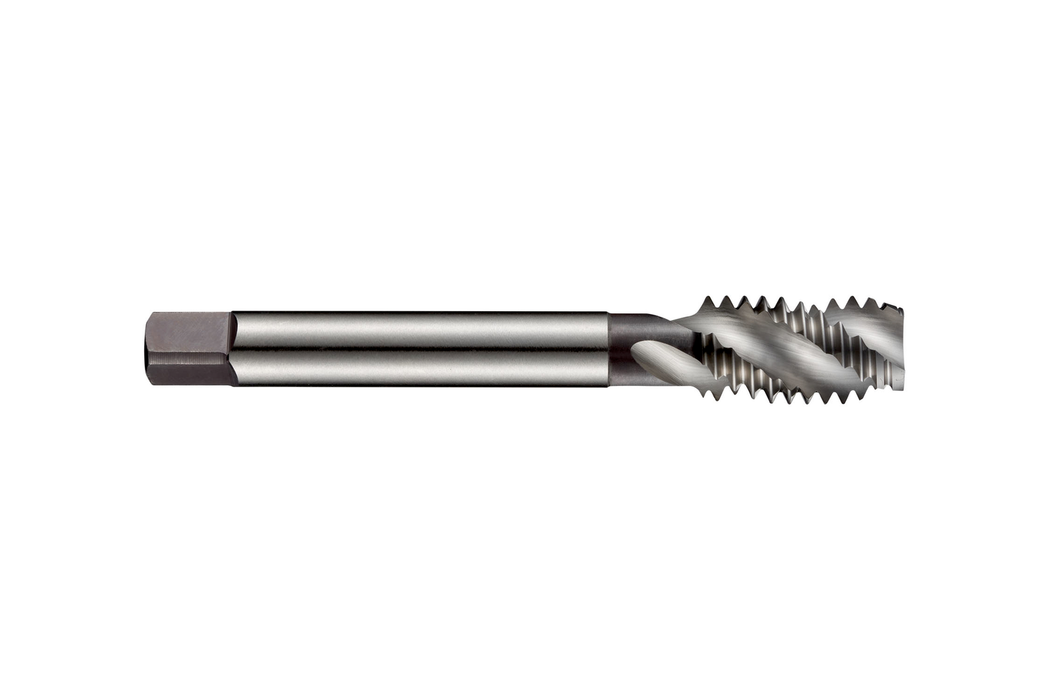

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for British Standard Whitworth thread BSW 1/4" with 20 TPI and Medium class of fit, dimensions according to ISO 529 standard with 6.3mm shank and 5.0mm square drive, HSS with bright finish with steam tempering and 40° helix angle for 2xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$32.71 - $32.71
$32.71
$32.71 - $32.71
$32.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

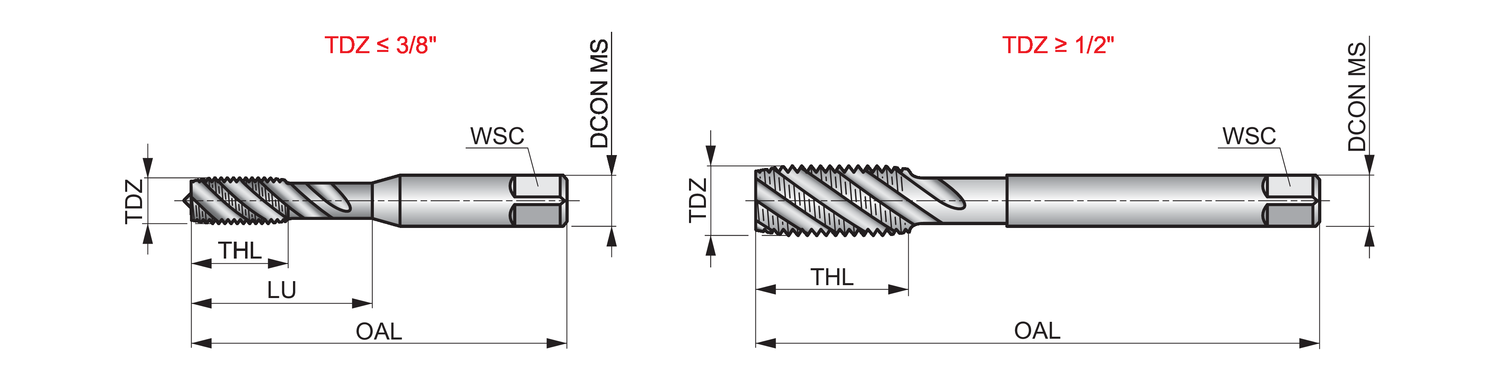

Material: HSS

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 2.5984

Connetion Diameter: 0.248

Tool Direction: Right

Diameter Size: 1/4

Thread Diameter - in: 0.25

Thread Diameter - mm: 6.35

TPI: 20.0

Thread Form: BSW - British standard Whitworth

Shank: Cylindrical shank with Square

Usable Length: 1.0236

Grade: Bright/ST

EDP: 201510

EAN: 7320760201510

MFG Part Number: 5976488
