E5333/16BLUE

E5333/16BLUE

SKU DOR5976495
by Dormer Pramet
Primary Use: Possible Use:

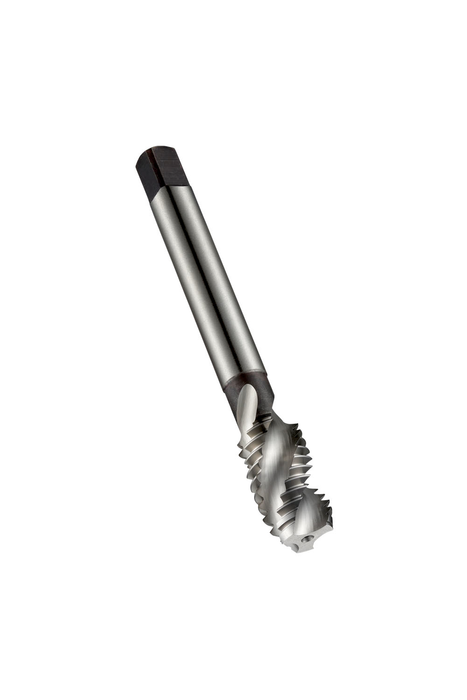

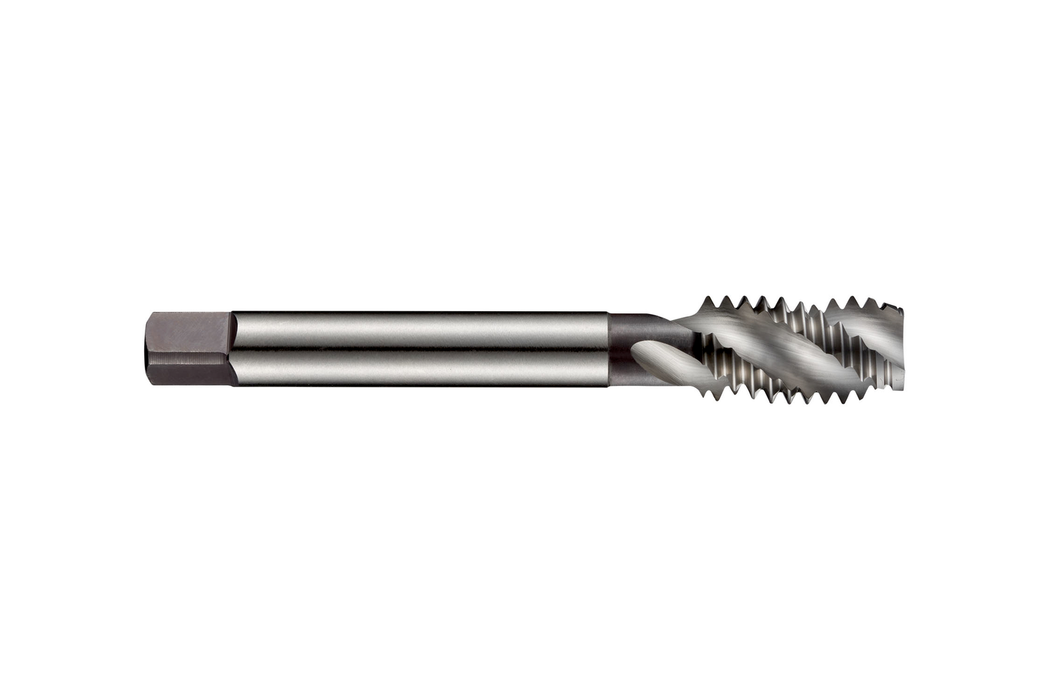

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for British Standard Whitworth thread BSW 3/16" with 24 TPI and Medium class of fit, dimensions according to ISO 529 standard with 5.0mm shank and 4.0mm square drive, HSS with bright finish with steam tempering and 40° helix angle for 2xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$34.67 - $34.67
$34.67
$34.67 - $34.67
$34.67
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

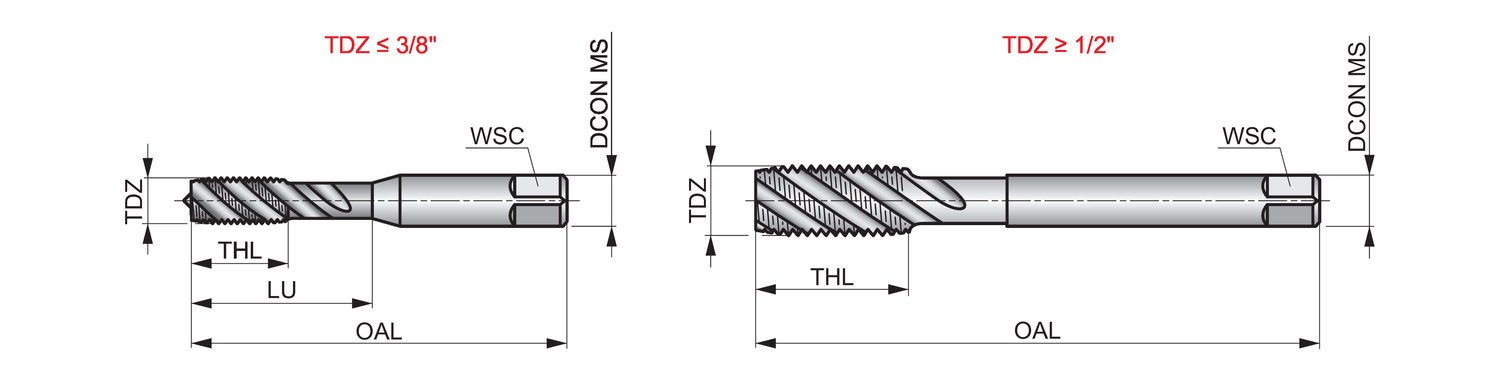

Material: HSS

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 2.2835

Connetion Diameter: 0.1969

Tool Direction: Right

Diameter Size: 3/16

Thread Diameter - in: 0.1875

Thread Diameter - mm: 4.763

TPI: 24.0

Thread Form: BSW - British standard Whitworth

Shank: Cylindrical shank with Square

Usable Length: 0.7874

Grade: Bright/ST

EDP: 201497

EAN: 7320760201497

MFG Part Number: 5976495
