E5369/16NO3

E5369/16NO3

SKU DOR5976570
by Dormer Pramet
Primary Use: Possible Use:

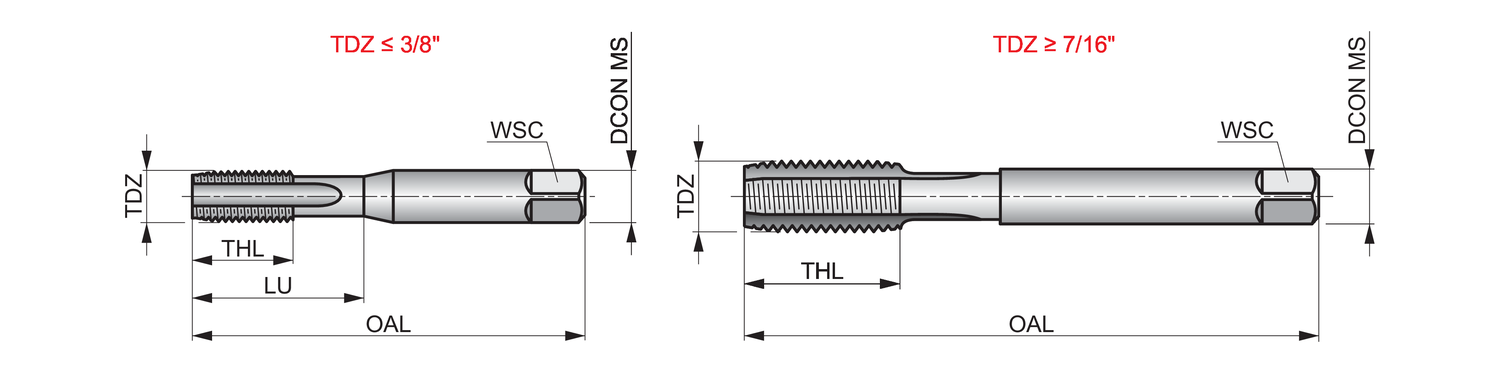

Straight flute hand tap NO3 with a 2-3xP plug lead, for British Standard Fine thread BSF 9/16" with 16 TPI and Medium class of fit, dimensions according to ISO 529 standard with 11.2mm shank and 9.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$64.49 - $64.49
$64.49
$64.49 - $64.49
$64.49
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 3.7402

Connetion Diameter: 0.4409

Tool Direction: Right

Diameter Size: 9/16

Thread Diameter - in: 0.5622

Thread Diameter - mm: 14.28

TPI: 16.0

Thread Form: BSF - British standard fine

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 216156

EAN: 7320760216156

MFG Part Number: 5976570
