E5381/2BLUE

E5381/2BLUE

SKU DOR5976589
by Dormer Pramet
Primary Use: Possible Use:

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for British Standard Fine thread BSF 1/2" with 16 TPI and Medium class of fit, dimensions according to ISO 529 standard with 9.0mm shank and 7.1mm square drive, HSS with bright finish with steam tempering and 40° helix angle for 2xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$68.04 - $68.04
$68.04
$68.04 - $68.04
$68.04
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

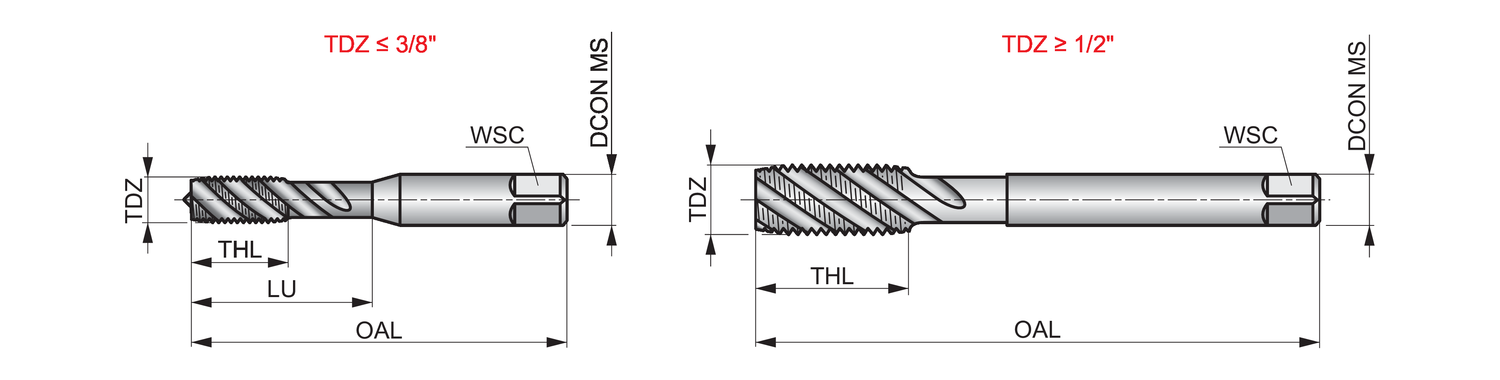

Material: HSS

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 3.5039

Connetion Diameter: 0.3543

Tool Direction: Right

Diameter Size: 1/2

Thread Diameter - in: 0.5

Thread Diameter - mm: 12.7

TPI: 16.0

Thread Form: BSF - British standard fine

Shank: Cylindrical shank with Square

Grade: Bright/ST

EDP: 202197

EAN: 7320760202197

MFG Part Number: 5976589
