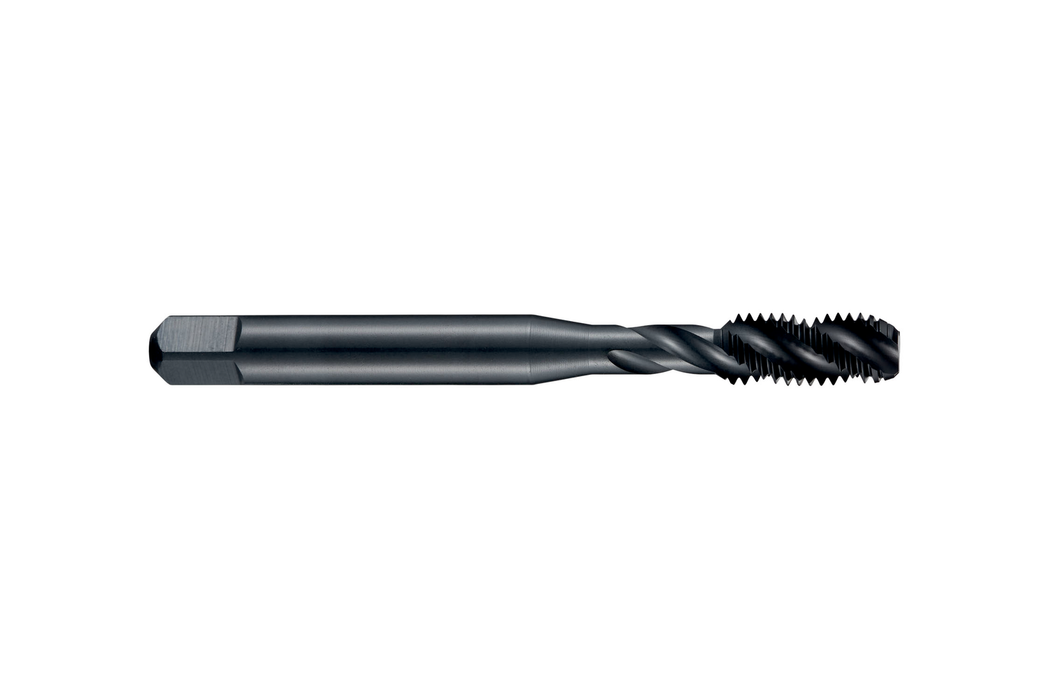

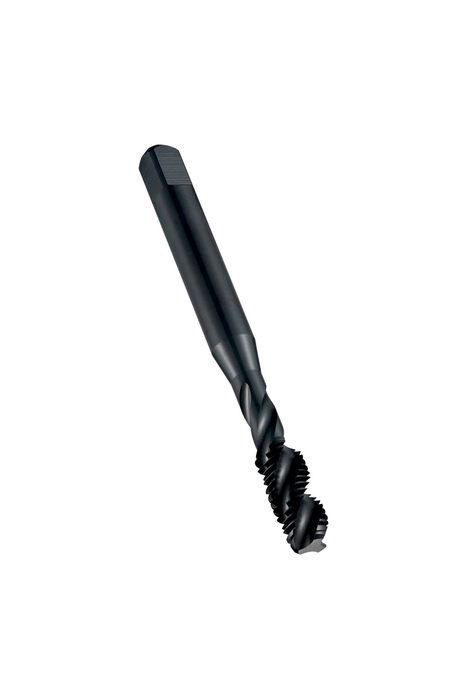

E5383/8BLUE

E5383/8BLUE

SKU DOR5976616
by Dormer Pramet
Primary Use: Possible Use:

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for British Standard Fine thread BSF 3/8" with 20 TPI and Medium class of fit, dimensions according to ISO 529 standard with 10.0mm shank and 8.0mm square drive, HSS with bright finish with steam tempering and 40° helix angle for 2xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$52.20 - $52.20
$52.20
$52.20 - $52.20
$52.20
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 3.1496

Connetion Diameter: 0.3937

Tool Direction: Right

Diameter Size: 3/8

Thread Diameter - in: 0.375

Thread Diameter - mm: 9.525

TPI: 20.0

Thread Form: BSF - British standard fine

Shank: Cylindrical shank with Square

Usable Length: 1.3386

Grade: Bright/ST

EDP: 202166

EAN: 7320760202166

MFG Part Number: 5976616
