E5385/16BLUE

E5385/16BLUE

SKU DOR5976623
by Dormer Pramet
Primary Use: Possible Use:

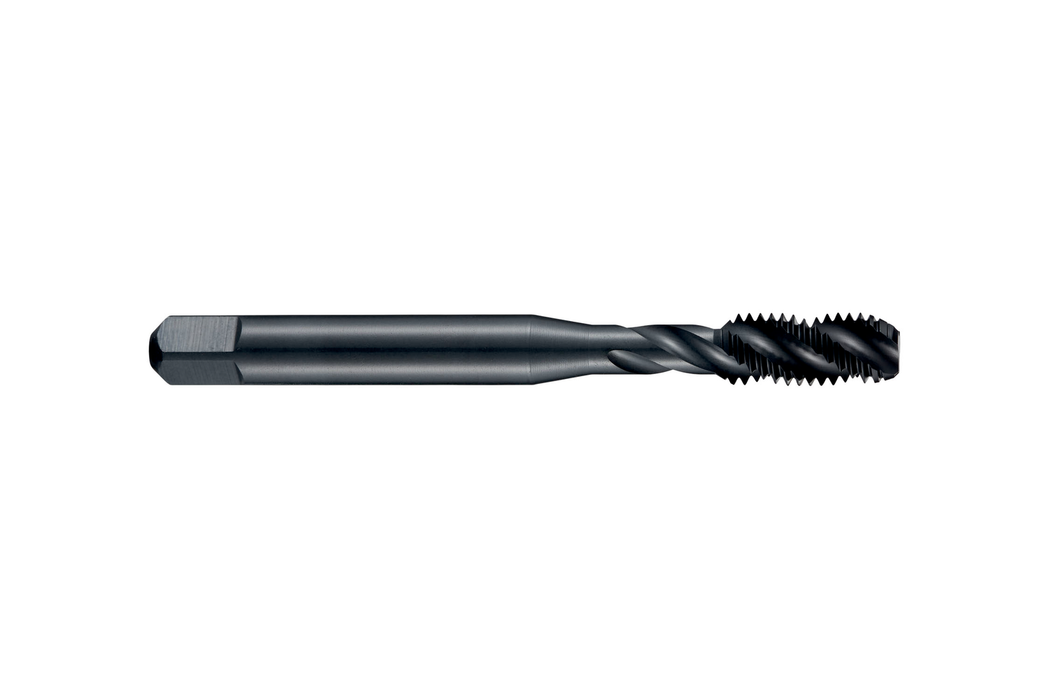

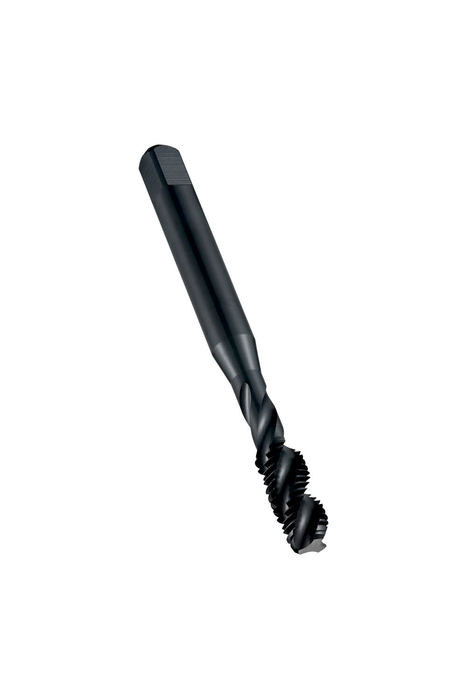

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for British Standard Fine thread BSF 5/16" with 22 TPI and Medium class of fit, dimensions according to ISO 529 standard with 8.0mm shank and 6.3mm square drive, HSS with bright finish with steam tempering and 40° helix angle for 2xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$42.79 - $42.79
$42.79
$42.79 - $42.79
$42.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 2.8346

Connetion Diameter: 0.315

Tool Direction: Right

Diameter Size: 5/16

Thread Diameter - in: 0.3125

Thread Diameter - mm: 7.938

TPI: 22.0

Thread Form: BSF - British standard fine

Shank: Cylindrical shank with Square

Usable Length: 1.2205

Grade: Bright/ST

EDP: 202142

EAN: 7320760202142

MFG Part Number: 5976623
