E5393/8

E5393/8

SKU DOR5976642
by Dormer Pramet
Primary Use: Possible Use:

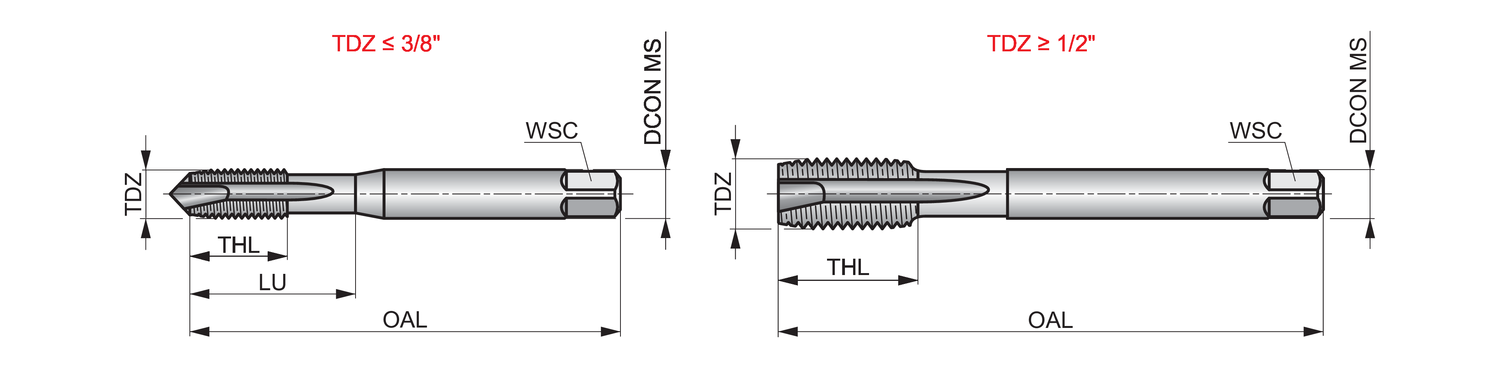

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for British Standard Fine thread BSF 3/8" with 20 TPI and Medium class of fit, dimensions according to ISO 529 standard with 10.0mm shank and 8.0mm square drive, HSS with steam tempered surface finish for 2.5xD through hole threading in plain carbon and alloy steel and ferritic and austenitic stainless steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$42.67 - $42.67
$42.67
$42.67 - $42.67
$42.67
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.1496

Connetion Diameter: 0.3937

Tool Direction: Right

Diameter Size: 3/8

Thread Diameter - in: 0.3752

Thread Diameter - mm: 9.53

TPI: 20.0

Thread Form: BSF - British standard fine

Shank: Cylindrical shank with Square

Usable Length: 1.2598

Grade: Steam Tempered

EDP: 202005

EAN: 7320760202005

MFG Part Number: 5976642
