E542BA0NO3

E542BA0NO3

SKU DOR5976660
by Dormer Pramet
Primary Use: Possible Use:

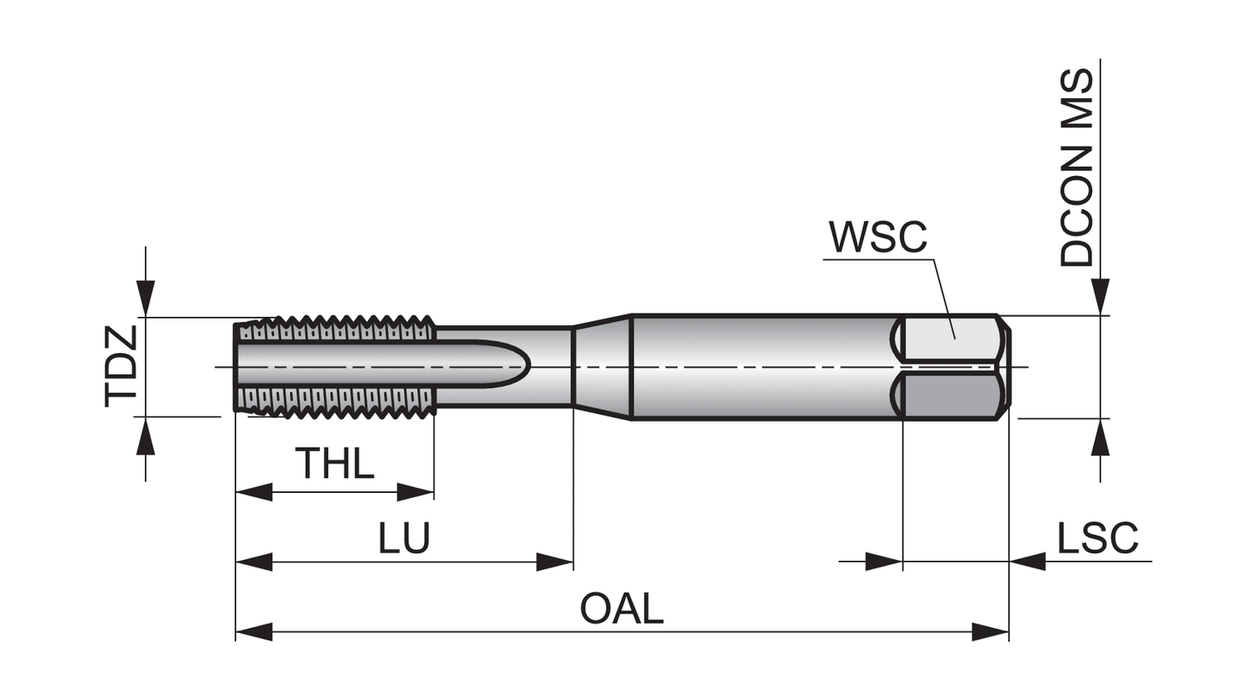

Straight flute hand tap NO3 with a 2-3xP plug lead, for British Association thread BA 0 with 1.00 mm pitch and Normal class of fit, dimensions according to ISO 529 standard with 6.3mm shank and 5.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$20.33 - $20.33
$20.33
$20.33 - $20.33
$20.33
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 2.5984

Connetion Diameter: 0.248

Tool Direction: Right

Diameter Size: BA 0

Thread Diameter - in: 0.2362

Thread Diameter - mm: 6.0

Pitch - mm: 1.0

Pitch - in: 0.0394

Thread Form: BA - British association

Shank: Cylindrical shank with Square

Usable Length: 1.0236

Grade: Bright

EDP: 99087

EAN: 7320760099087

MFG Part Number: 5976660
