E544BA2BLUE

E544BA2BLUE

SKU DOR5976675
by Dormer Pramet
Primary Use: Possible Use:

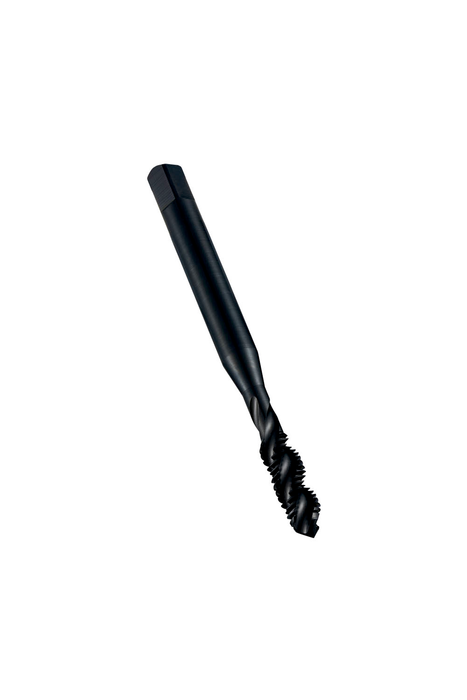

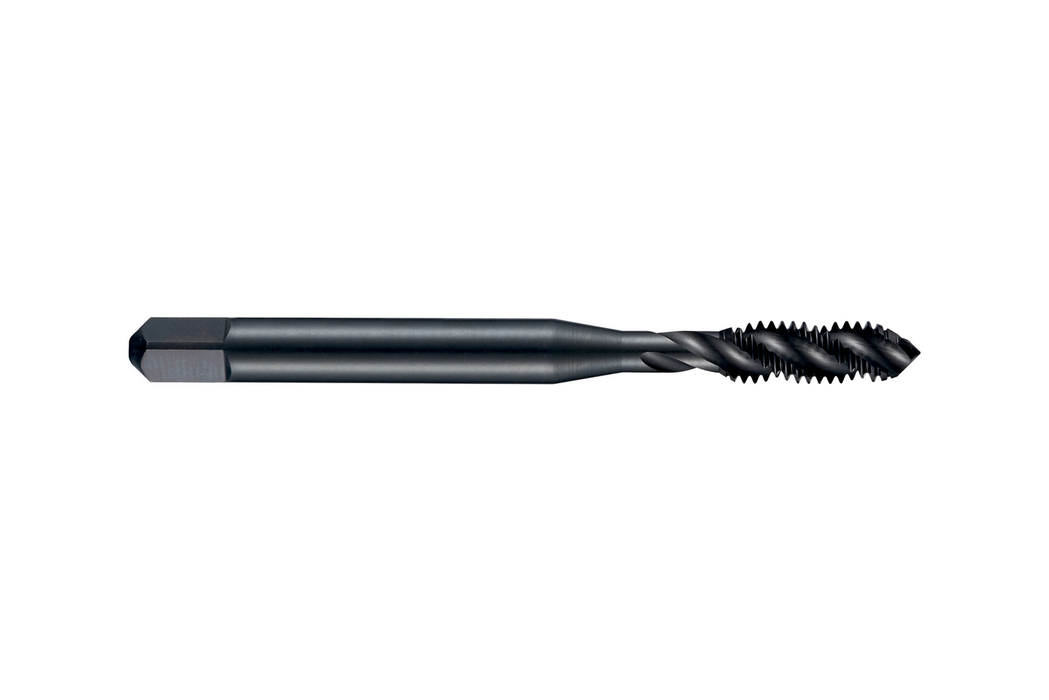

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for British Association thread BA 2 with 0.81 mm pitch and Normal class of fit, dimensions according to ISO 529 standard with 5.0mm shank and 4.0mm square drive, HSS with bright finish with steam tempering and 40° helix angle for 2xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$23.73 - $23.73
$23.73
$23.73 - $23.73
$23.73
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

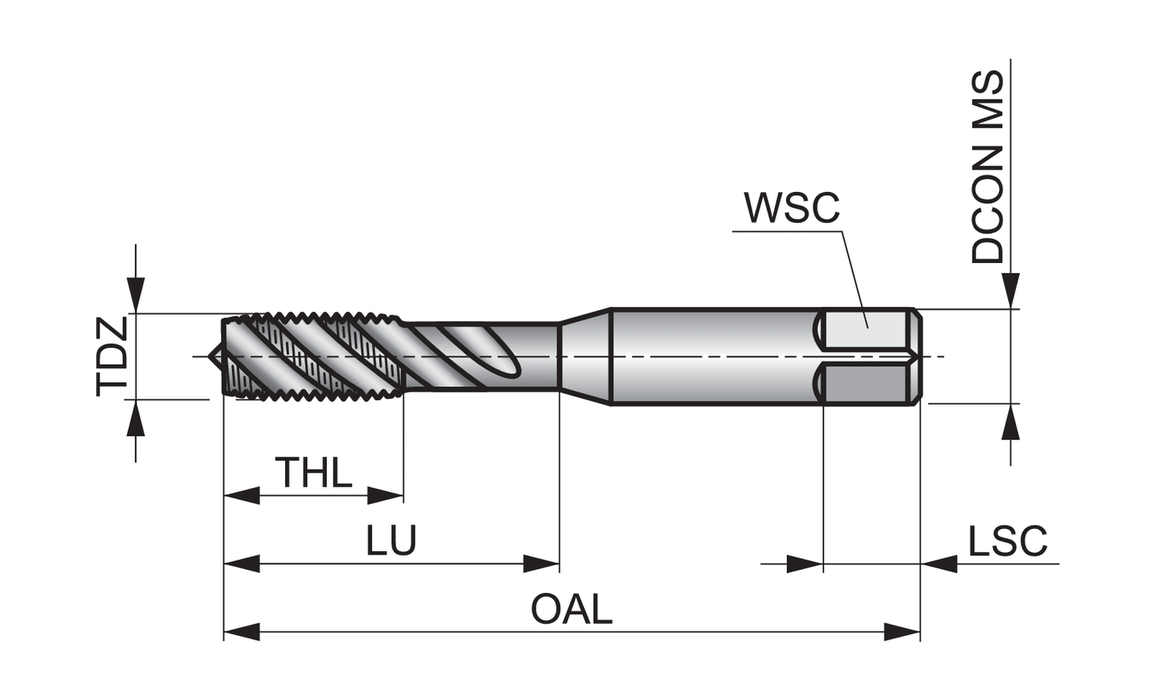

Material: HSS

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 2.2835

Connetion Diameter: 0.1969

Tool Direction: Right

Diameter Size: BA 2

Thread Diameter - in: 0.185

Thread Diameter - mm: 4.7

Pitch - mm: 0.81

Pitch - in: 0.0319

Thread Form: BA - British association

Shank: Cylindrical shank with Square

Usable Length: 0.7874

Grade: Bright/ST

EDP: 204092

EAN: 7320760204092

MFG Part Number: 5976675
