E544BA4

E544BA4

SKU DOR5976678
by Dormer Pramet
Primary Use: Possible Use:

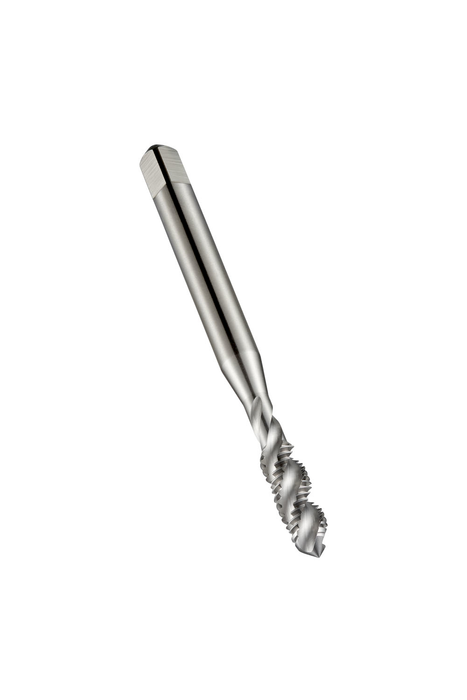

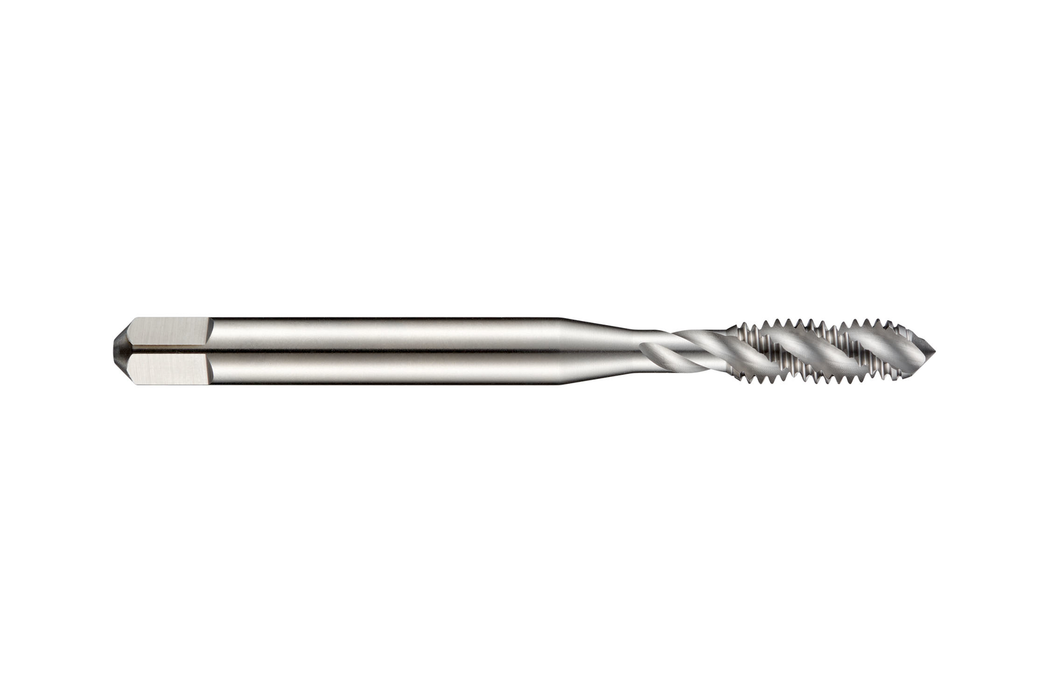

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for British Association thread BA 4 with 0.66 mm pitch and Normal class of fit, dimensions according to ISO 529 standard with 3.55mm shank and 2.8mm square drive, HSS with bright finish with steam tempering and 40° helix angle for 2xD blind hole threading in free machining, plain carbon and alloy steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$24.33 - $24.33
$24.33
$24.33 - $24.33
$24.33
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

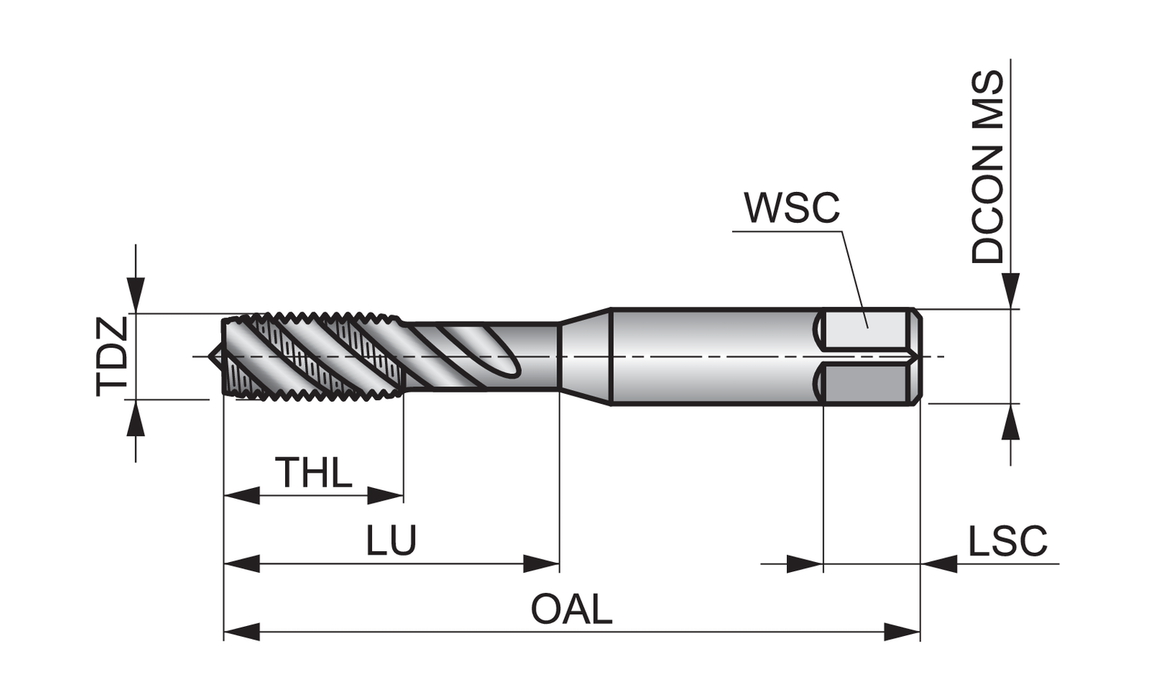

Material: HSS

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 1.9685

Connetion Diameter: 0.1398

Tool Direction: Right

Diameter Size: BA 4

Thread Diameter - in: 0.1417

Thread Diameter - mm: 3.6

Pitch - mm: 0.66

Pitch - in: 0.026

Thread Form: BA - British association

Shank: Cylindrical shank with Square

Usable Length: 0.6496

Grade: Bright/ST

EDP: 204054

EAN: 7320760204054

MFG Part Number: 5976678
