E544BA6

E544BA6

SKU DOR5976689
by Dormer Pramet
Primary Use: Possible Use:

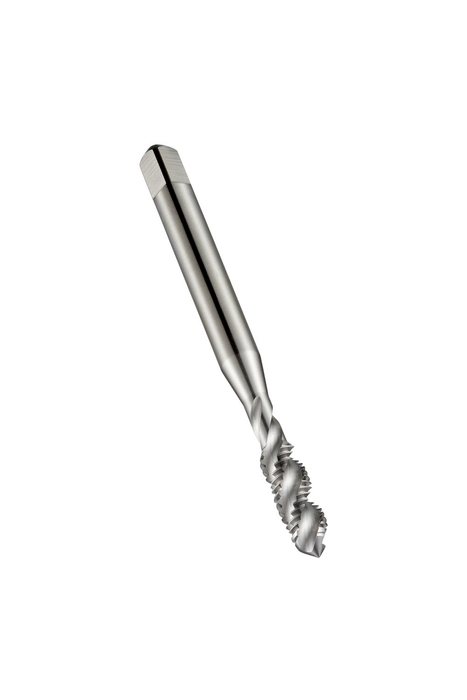

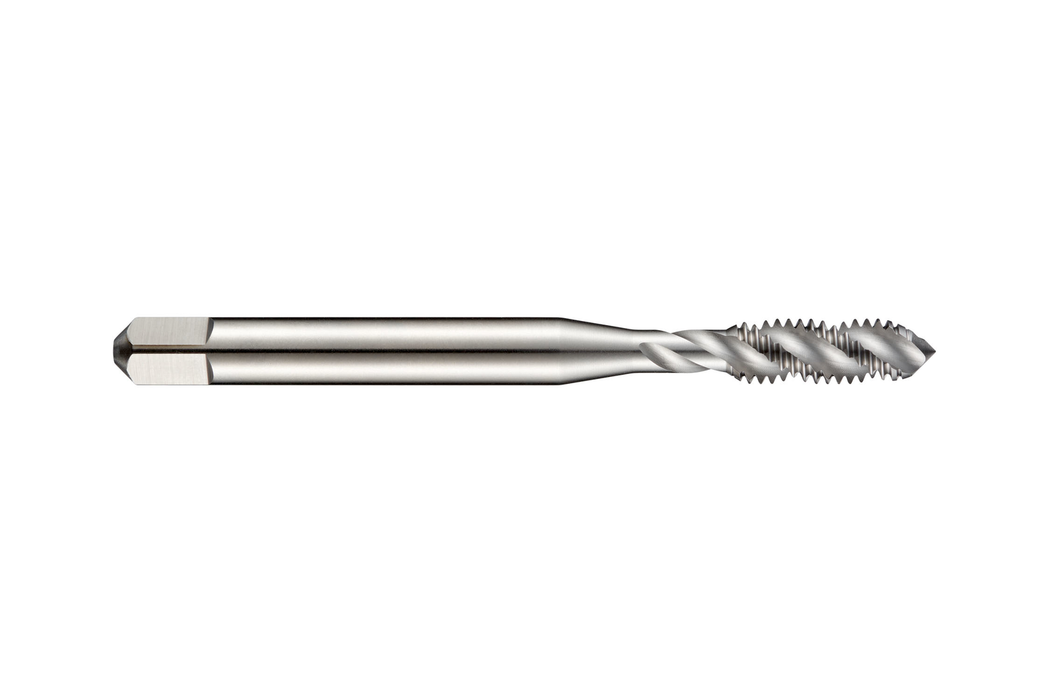

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for British Association thread BA 6 with 0.53 mm pitch and Normal class of fit, dimensions according to ISO 529 standard with 2.8mm shank and 2.2mm square drive, HSS with bright finish with steam tempering and 40° helix angle for 2xD blind hole threading in free machining, plain carbon and alloy steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$26.73 - $26.73
$26.73
$26.73 - $26.73
$26.73
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

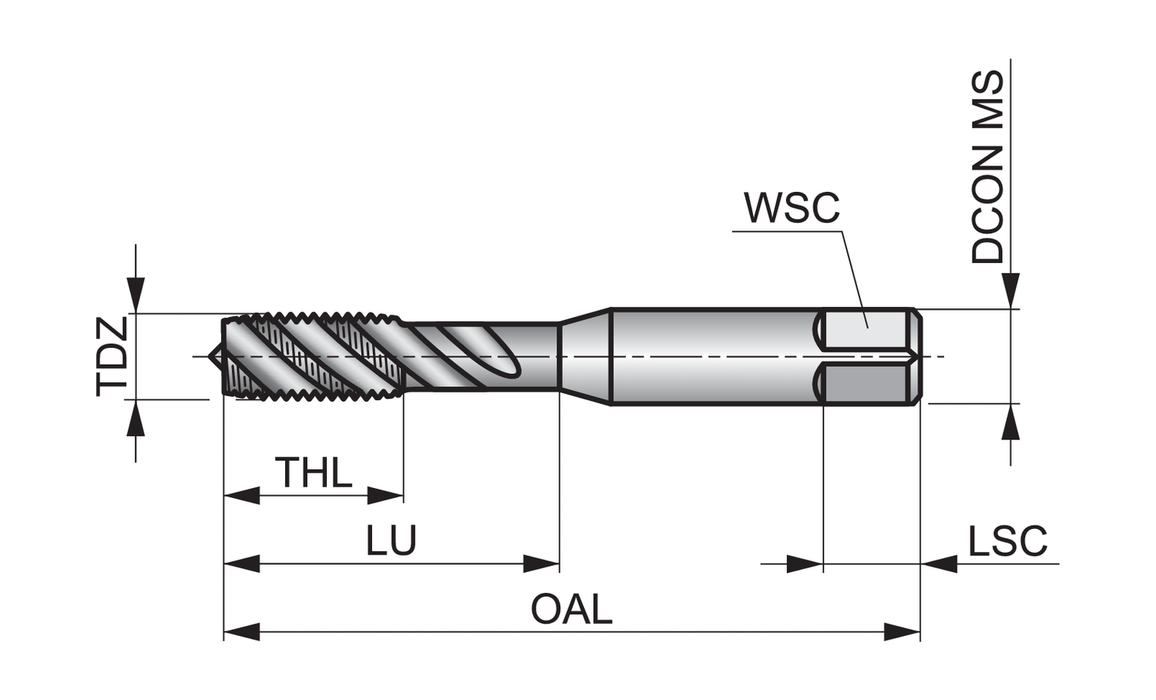

Material: HSS

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 1.752

Connetion Diameter: 0.1102

Tool Direction: Right

Diameter Size: BA 6

Thread Diameter - in: 0.1102

Thread Diameter - mm: 2.8

Pitch - mm: 0.53

Pitch - in: 0.0209

Thread Form: BA - British association

Shank: Cylindrical shank with Square

Usable Length: 0.374

Grade: Bright/ST

EDP: 204023

EAN: 7320760204023

MFG Part Number: 5976689
