E545BA10

E545BA10

SKU DOR5976701
by Dormer Pramet
Primary Use: Possible Use:

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for British Association thread BA 10 with 0.35 mm pitch and Normal class of fit, dimensions according to ISO 529 standard with 2.5mm shank and 2.0mm square drive, HSS with steam tempered surface finish for 2.5xD through hole threading in plain carbon and alloy steel and ferritic and austenitic stainless steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$84.91 - $84.91
$84.91
$84.91 - $84.91
$84.91
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

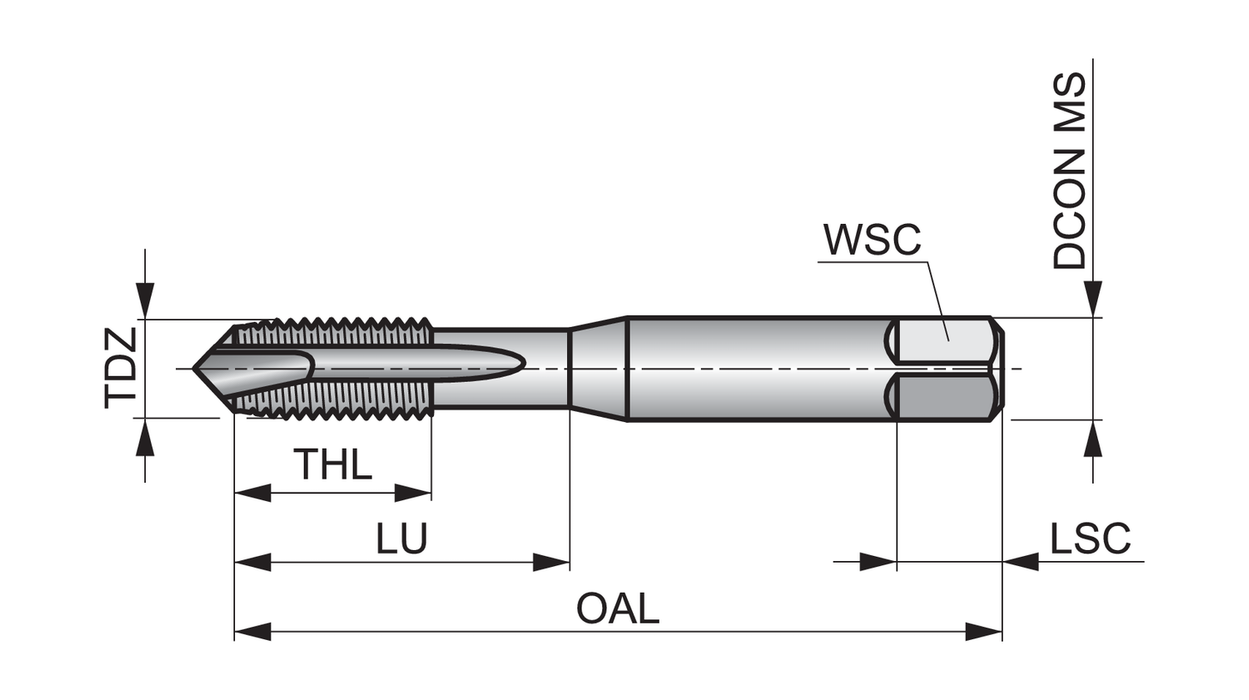

Material: HSS

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 1.6142

Connetion Diameter: 0.0984

Tool Direction: Right

Diameter Size: BA10

Thread Diameter - in: 0.0669

Thread Diameter - mm: 1.7

Pitch - mm: 0.35

Pitch - in: 0.0138

Thread Form: BA - British association

Shank: Cylindrical shank with Square

Usable Length: 0.2756

Grade: Steam Tempered

EDP: 203798

EAN: 7320760203798

MFG Part Number: 5976701
