E545BA2

E545BA2

SKU DOR5976706
by Dormer Pramet
Primary Use: Possible Use:

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for British Association thread BA 2 with 0.81 mm pitch and Normal class of fit, dimensions according to ISO 529 standard with 5.0mm shank and 4.0mm square drive, HSS with steam tempered surface finish for 2.5xD through hole threading in plain carbon and alloy steel and ferritic and austenitic stainless steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$19.37 - $19.37
$19.37
$19.37 - $19.37
$19.37
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

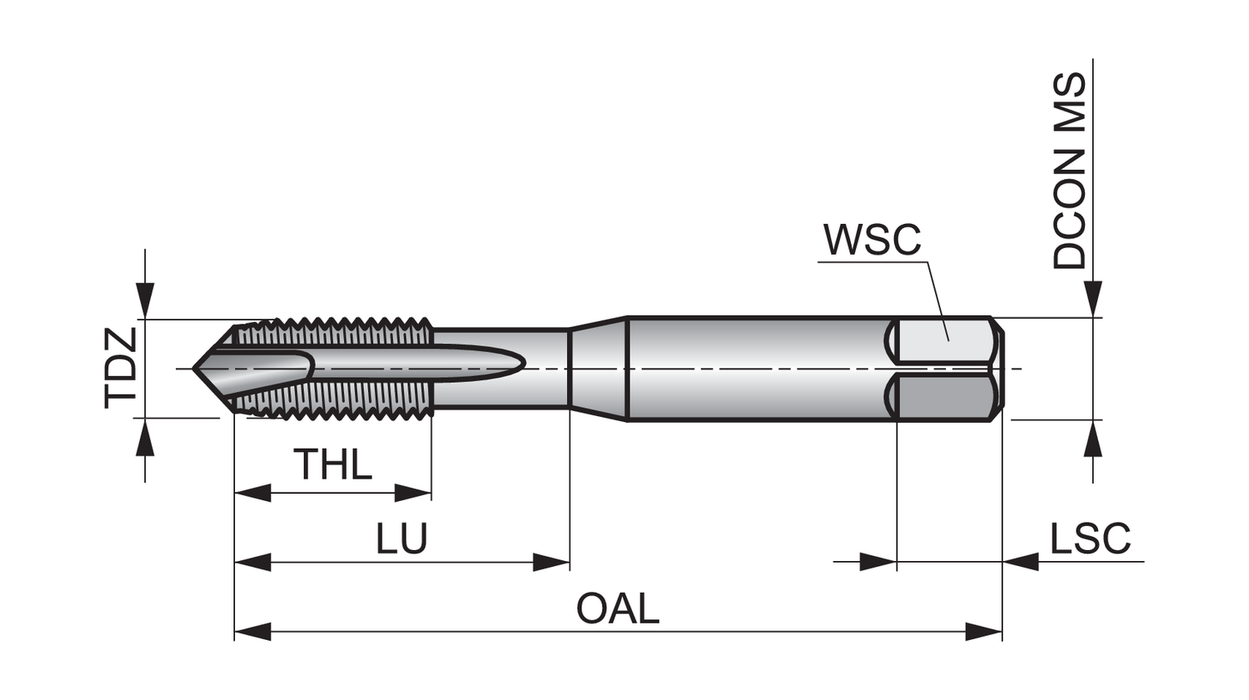

Material: HSS

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.2835

Connetion Diameter: 0.1969

Tool Direction: Right

Diameter Size: BA 2

Thread Diameter - in: 0.185

Thread Diameter - mm: 4.7

Pitch - mm: 0.81

Pitch - in: 0.0319

Thread Form: BA - British association

Shank: Cylindrical shank with Square

Usable Length: 0.7874

Grade: Steam Tempered

EDP: 203941

EAN: 7320760203941

MFG Part Number: 5976706
