E500M4.5NO6

E500M4.5NO6

SKU DOR5976757
by Dormer Pramet
Primary Use: Possible Use:

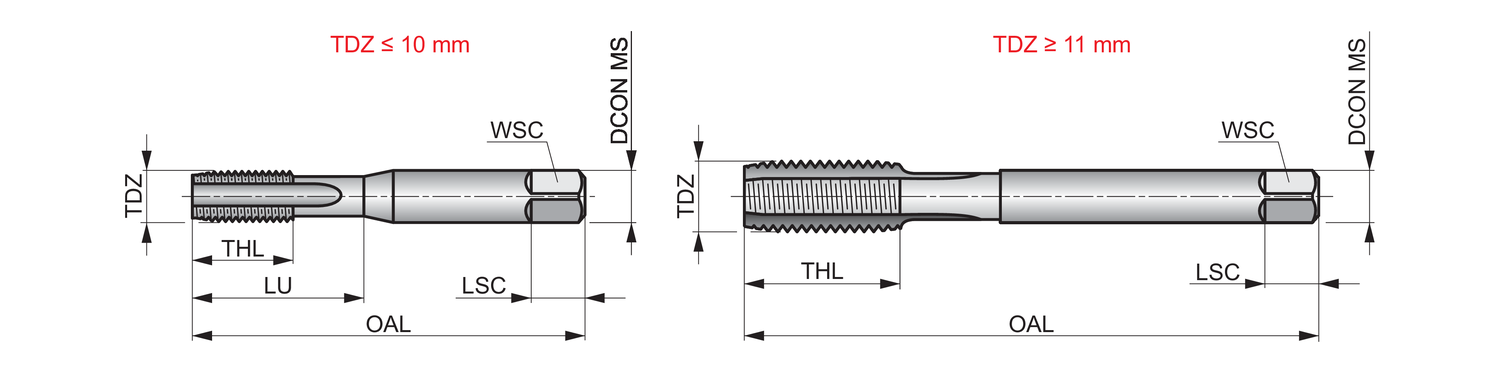

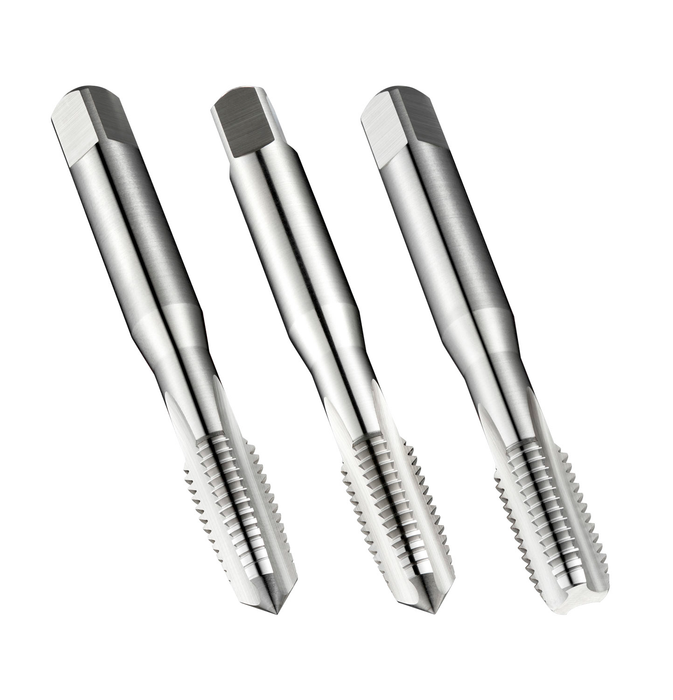

Set of straight flute hand taps NO6 for ISO-Metric thread M4.5 with 0.75 mm pitch and 6H class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 529 standard with 4.5mm shank and 3.55mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$37.96 - $37.96
$37.96
$37.96 - $37.96
$37.96
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 2.0866

Connetion Diameter: 0.1772

Tool Direction: Right

Diameter Size: 4.5

Pitch - mm: 0.75

Pitch - in: 0.0295

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.7087

Grade: Bright

EDP: 154755

EAN: 7320760154755

MFG Part Number: 5976757
