E500M4X.75NO1

E500M4X.75NO1

SKU DOR5976795
by Dormer Pramet
Primary Use: Possible Use:

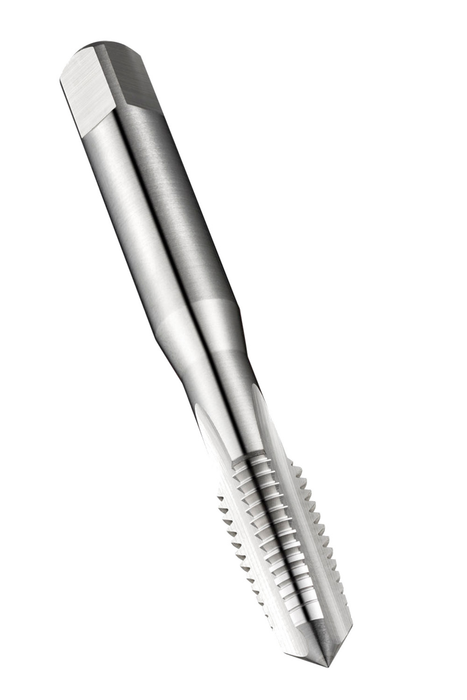

Straight flute hand tap NO1 with a 6-8xP taper lead, for ISO-Metric thread M4 with 0.75 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 4.0mm shank and 3.15mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$25.93 - $25.93
$25.93
$25.93 - $25.93
$25.93
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 2.0866

Connetion Diameter: 0.1575

Tool Direction: Right

Diameter Size: 4

Pitch - mm: 0.75

Pitch - in: 0.0295

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.5512

Grade: Bright

EDP: 160213

EAN: 7320760160213

MFG Part Number: 5976795
