E504M5NO3

E504M5NO3

SKU DOR5976848
by Dormer Pramet
Primary Use: Possible Use:

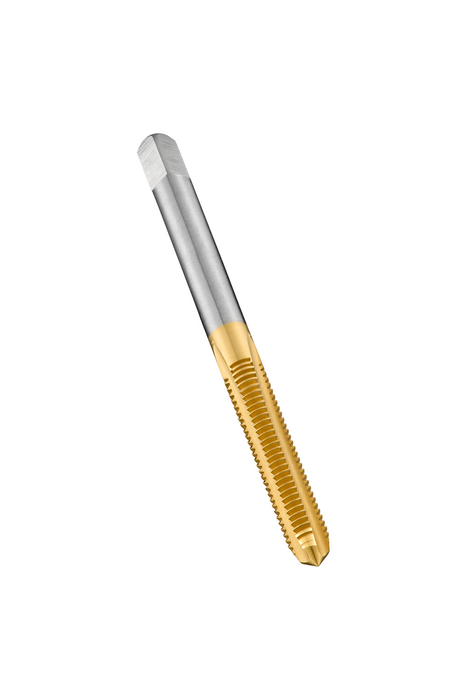

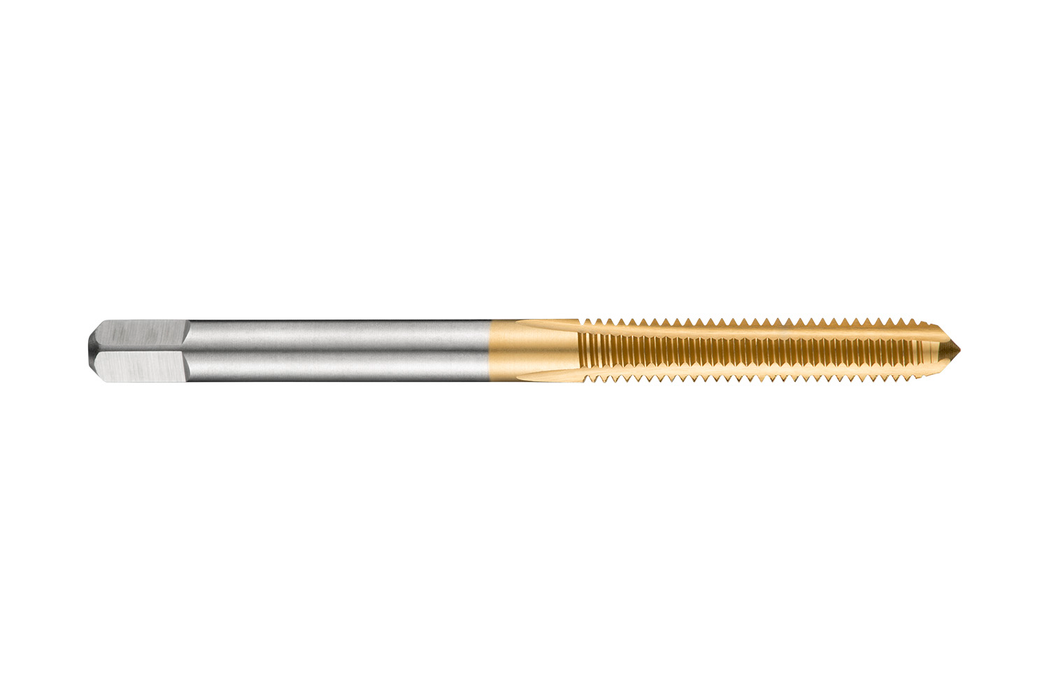

Straight flute hand tap NO3 with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 5.0mm shank and 4.0mm square drive, HSS with TiN coating for 1.5xD through or blind hole threading in free machining steel and cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$18.34 - $18.34
$18.34
$18.34 - $18.34
$18.34
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

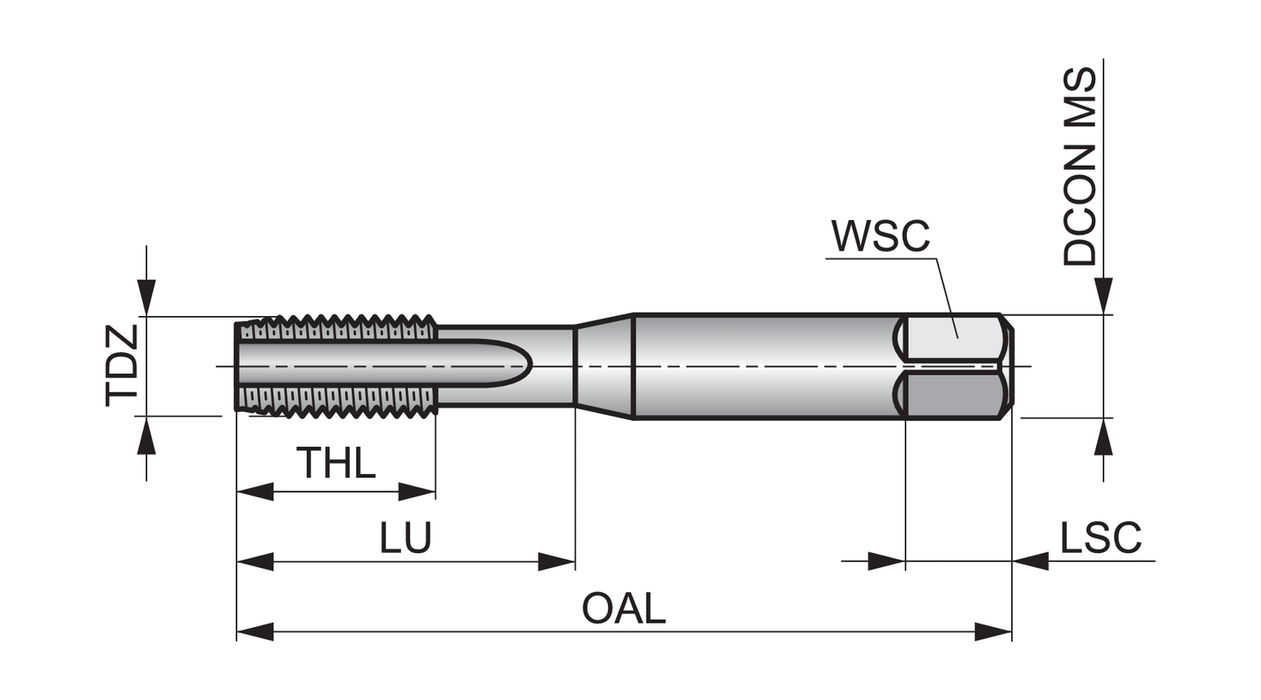

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 2.2835

Connetion Diameter: 0.1969

Tool Direction: Right

Diameter Size: 5

Pitch - mm: 0.8

Pitch - in: 0.0315

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.8661

Grade: TiN

EDP: 122501

EAN: 7320760122501

MFG Part Number: 5976848
