E500M5X.9NO3

E500M5X.9NO3

SKU DOR5976910
by Dormer Pramet
Primary Use: Possible Use:

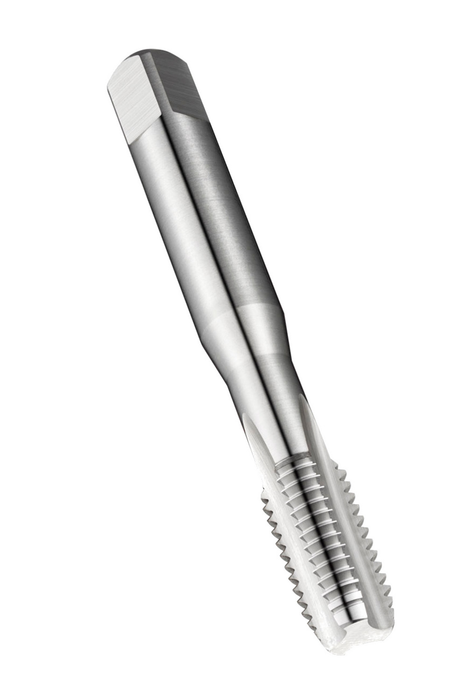

Straight flute hand tap NO3 with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.90 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 5.0mm shank and 4.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$27.76 - $27.76
$27.76
$27.76 - $27.76
$27.76
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 2.2835

Connetion Diameter: 0.1969

Tool Direction: Right

Diameter Size: 5

Pitch - mm: 0.9

Pitch - in: 0.0354

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.8661

Grade: Bright

EDP: 159972

EAN: 7320760159972

MFG Part Number: 5976910
