E500M1NO2

E500M1NO2

SKU DOR5977031
by Dormer Pramet
Primary Use: Possible Use:

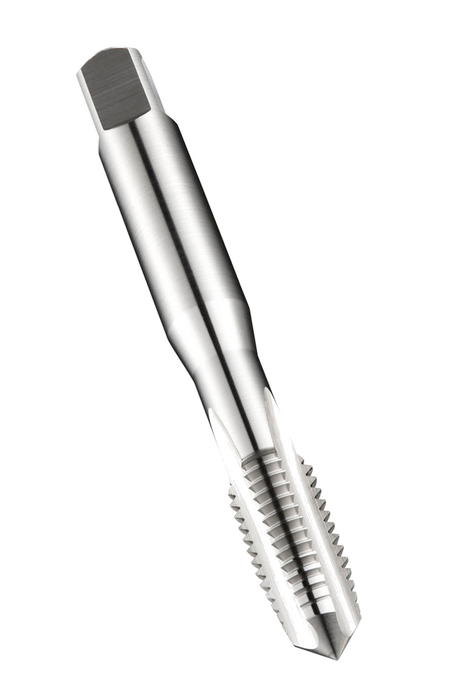

Straight flute hand tap NO2 with a 4-6xP second lead, for ISO-Metric thread M1 with 0.25 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 2.5mm shank and 2.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$100.96 - $100.96
$100.96
$100.96 - $100.96
$100.96
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 1.4961

Connetion Diameter: 0.0984

Tool Direction: Right

Diameter Size: 1

Pitch - mm: 0.25

Pitch - in: 0.0098

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.1772

Grade: Bright

EDP: 160169

EAN: 7320760160169

MFG Part Number: 5977031
