E500M56NO3

E500M56NO3

SKU DOR5977032
by Dormer Pramet
Primary Use: Possible Use:

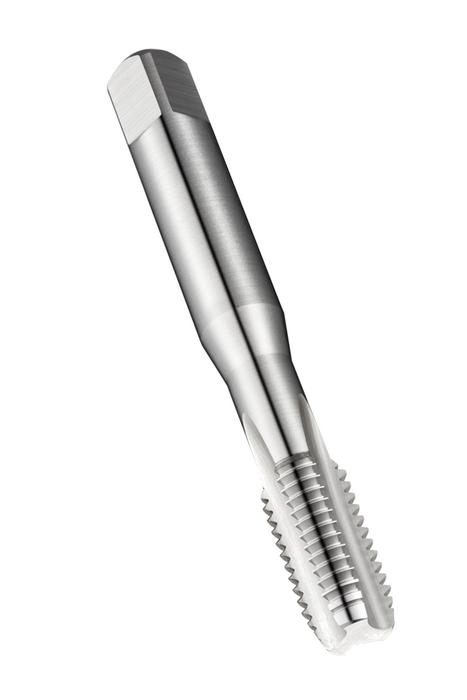

Straight flute hand tap NO3 with a 2-3xP plug lead, for ISO-Metric thread M56 with 5.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 35.5mm shank and 28.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$1,242.67 - $1,242.67
$1,242.67
$1,242.67 - $1,242.67
$1,242.67
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 7.874

Connetion Diameter: 1.3976

Tool Direction: Right

Diameter Size: 56

Pitch - mm: 5.5

Pitch - in: 0.2165

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 122457

EAN: 7320760122457

MFG Part Number: 5977032
