E5701.5/16X12NO3

Name: E5701.5/16X12NO3
Brand: Dormer Pramet
SKU: DOR5977457
Price: 635.73 CAD
Availability: InStock

SKU DOR5977457

by Dormer Pramet

Primary Use: Possible Use:

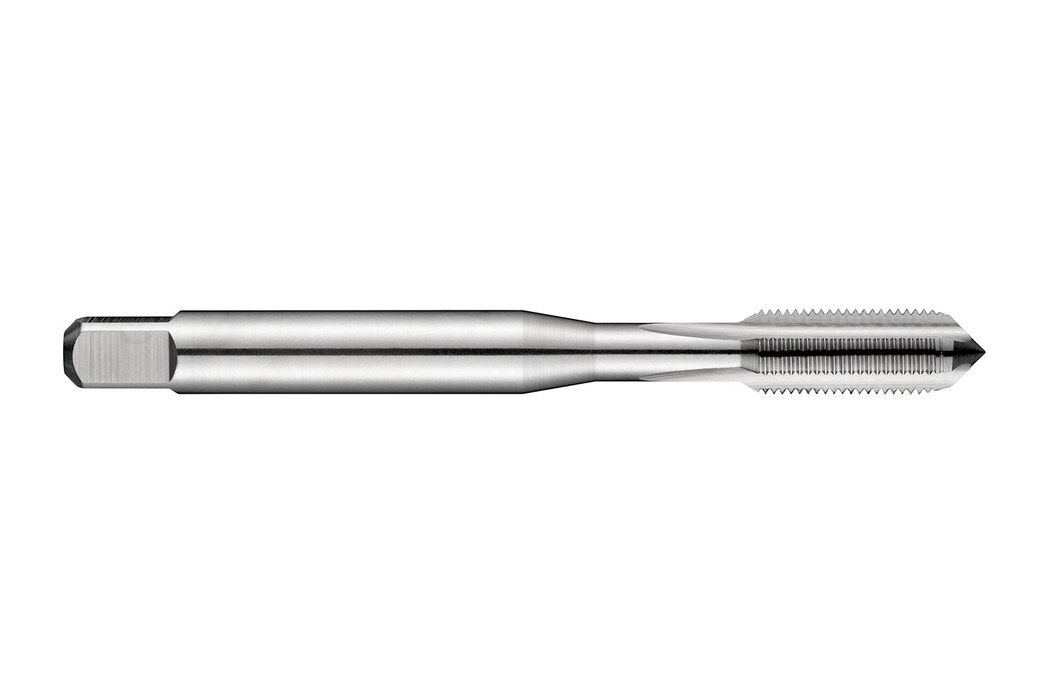

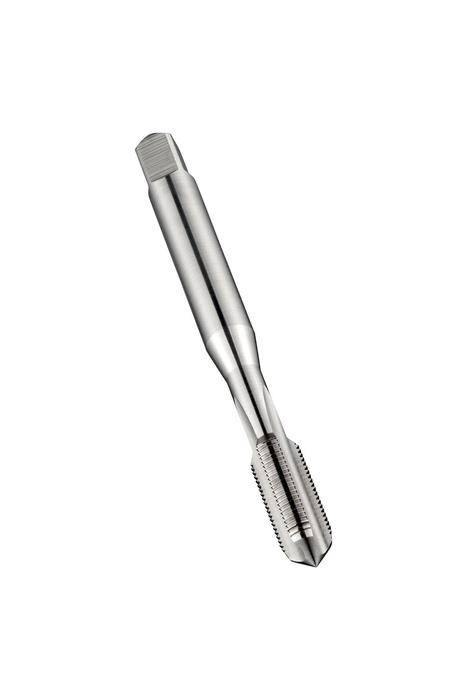

Straight flute hand tap NO3 with a 2-3xP plug lead, for Unified National thread UN 1.5/16" with 12 TPI and 2B class of fit, dimensions according to ISO 529 standard with 22.4mm shank and 18.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here

$635.73 - $635.73

$635.73

$635.73 - $635.73

$635.73

For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

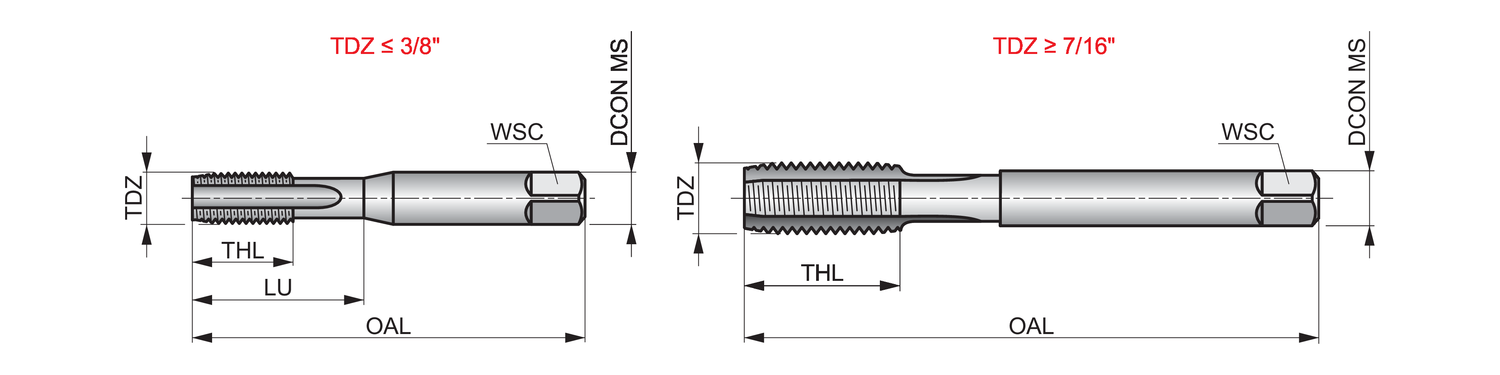

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 5.3937

Connetion Diameter: 0.8819

Tool Direction: Right

Diameter Size: 1.5/16

Thread Diameter - in: 1.3125

Thread Diameter - mm: 33.338

TPI: 12.0

Thread Form: UN - Unified

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 201008

EAN: 7320760201008

MFG Part Number: 5977457
