E5705/8X24NO3

E5705/8X24NO3

SKU DOR5977467
by Dormer Pramet
Primary Use: Possible Use:

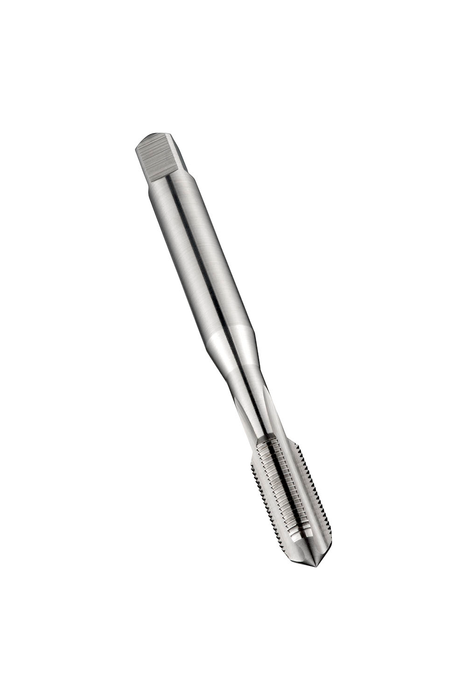

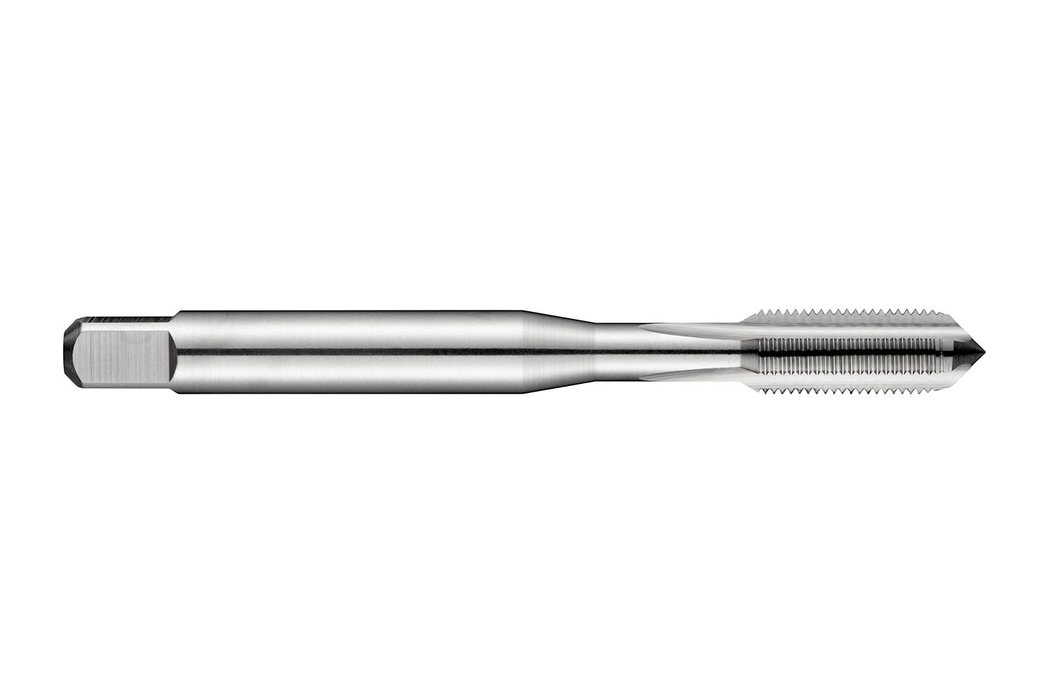

Straight flute hand tap NO3 with a 2-3xP plug lead, for Unified National thread UN 5/8" with 24 TPI and 2B class of fit, dimensions according to ISO 529 standard with 12.5mm shank and 10.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$89.81 - $89.81
$89.81
$89.81 - $89.81
$89.81
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

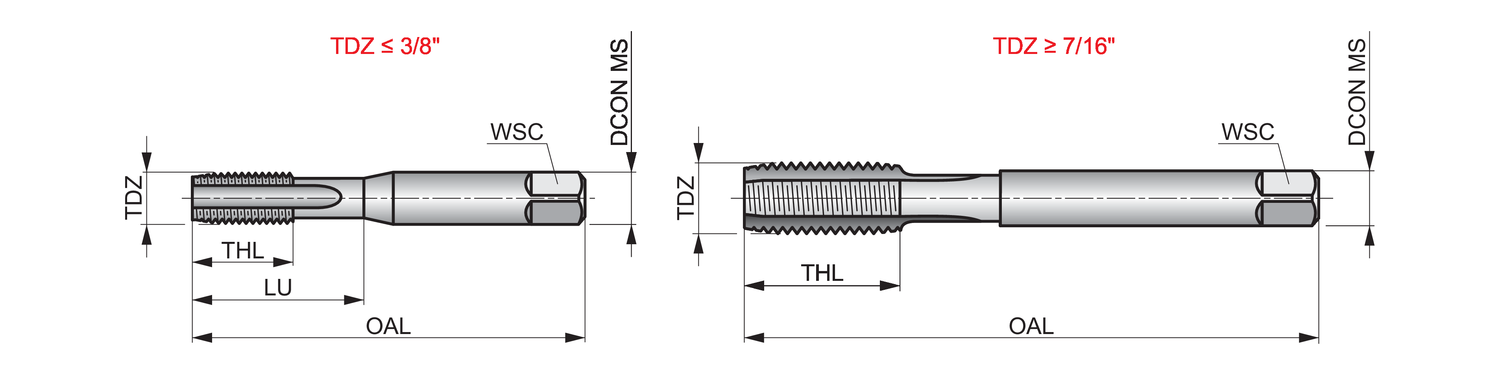

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 4.0157

Connetion Diameter: 0.4921

Tool Direction: Right

Diameter Size: 5/8

Thread Diameter - in: 0.625

Thread Diameter - mm: 15.875

TPI: 24.0

Thread Form: UN - Unified

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 200490

EAN: 7320760200490

MFG Part Number: 5977467
