E5503/8NO7

E5503/8NO7

SKU DOR5977475
by Dormer Pramet
Primary Use: Possible Use:

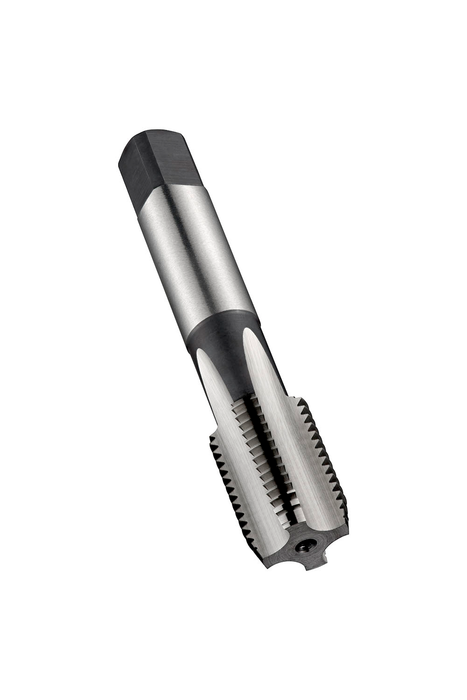

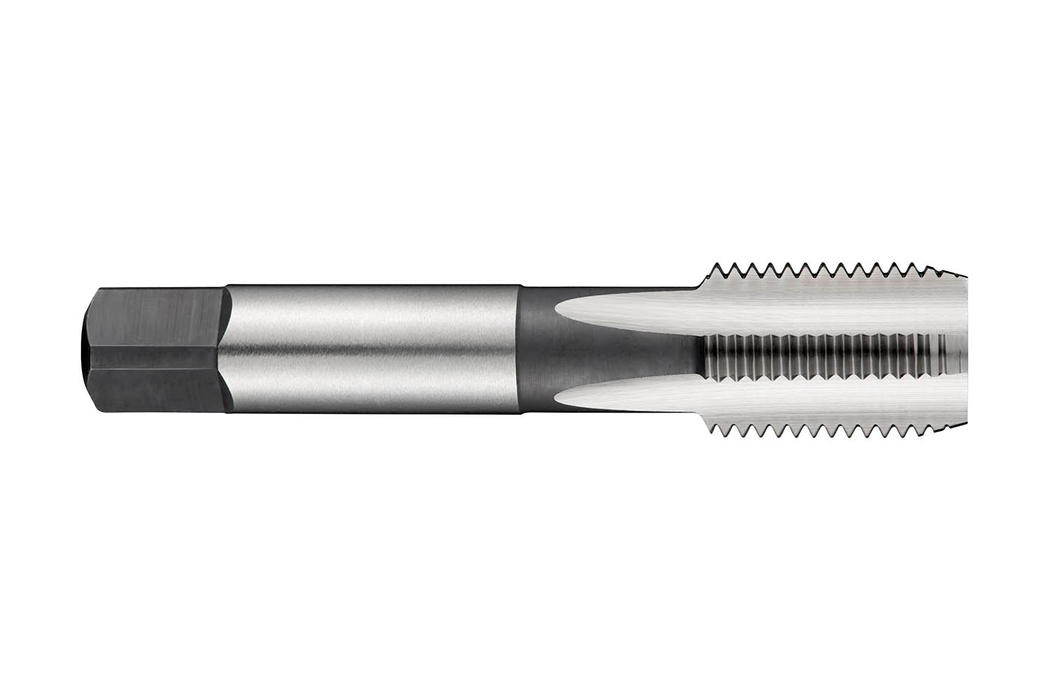

Set of straight flute hand taps NO7 for British Standard Pipe Taper thread Rc 3/8" with 19 TPI and Normal class of fit, consisting of 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 2284 standard with 12.5mm shank and 10.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$150.77 - $150.77
$150.77
$150.77 - $150.77
$150.77
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

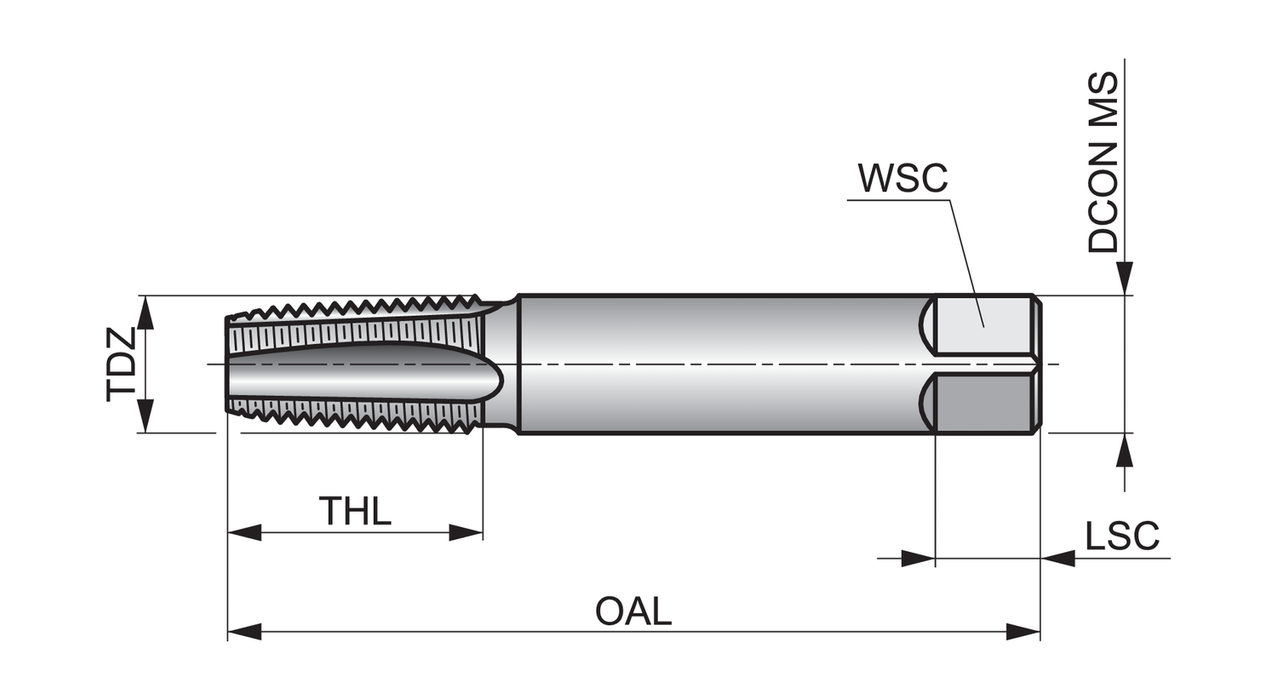

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 2.9528

Connetion Diameter: 0.4921

Tool Direction: Right

Diameter Size: 3/8

Thread Diameter - in: 0.656

Thread Diameter - mm: 16.662

TPI: 19.0

Thread Form: Rc - British standard pipe taper - Rc Series

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 159446

EAN: 7320760159446

MFG Part Number: 5977475
