E7141

E7141

SKU DOR5977548
by Dormer Pramet
Primary Use: Possible Use:

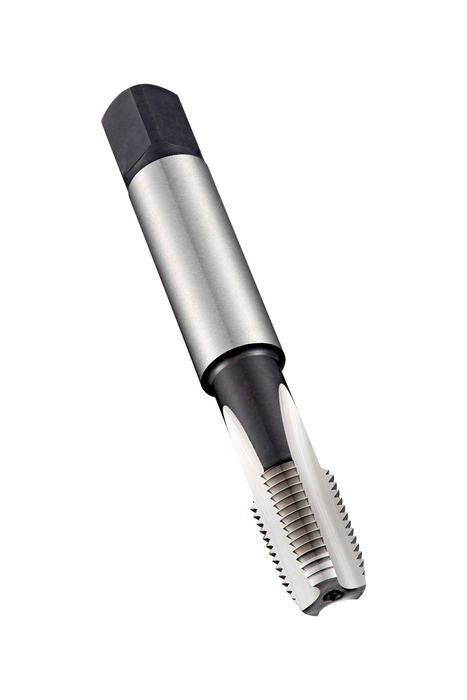

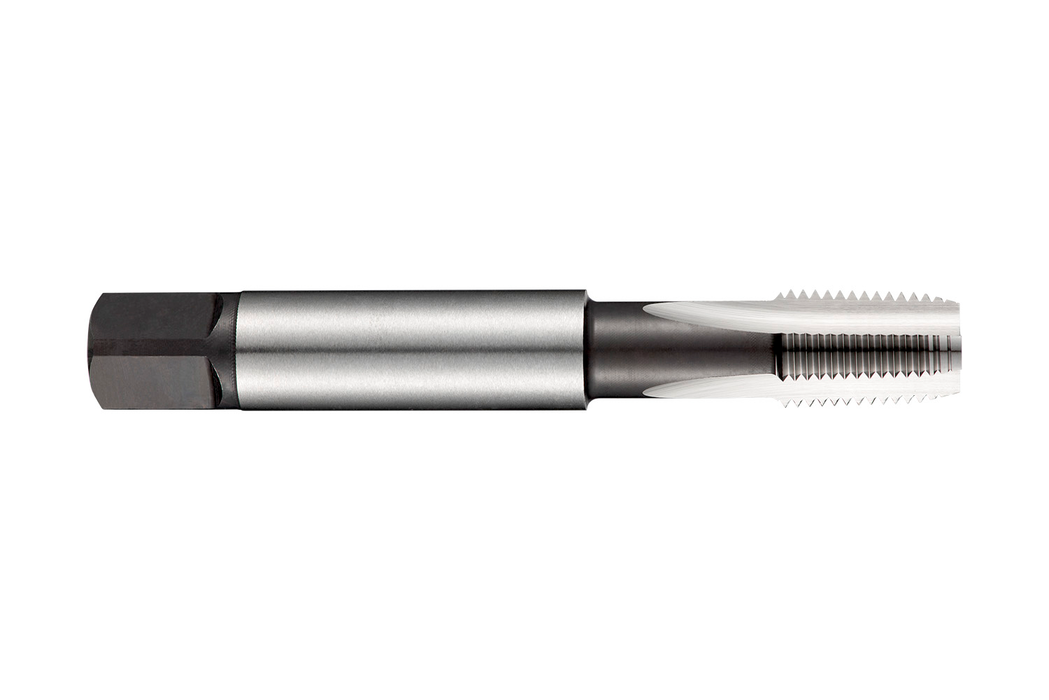

Straight flute tap with chamfer form C with a 2-3xP plug lead, for National Pipe Taper thread NPT 1" with 11.5 TPI and Normal class of fit, dimensions according to DORMER-ANSI standard with 28.0mm shank and 22.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining, plain carbon and alloy steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$272.19 - $272.19
$272.19
$272.19 - $272.19
$272.19
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

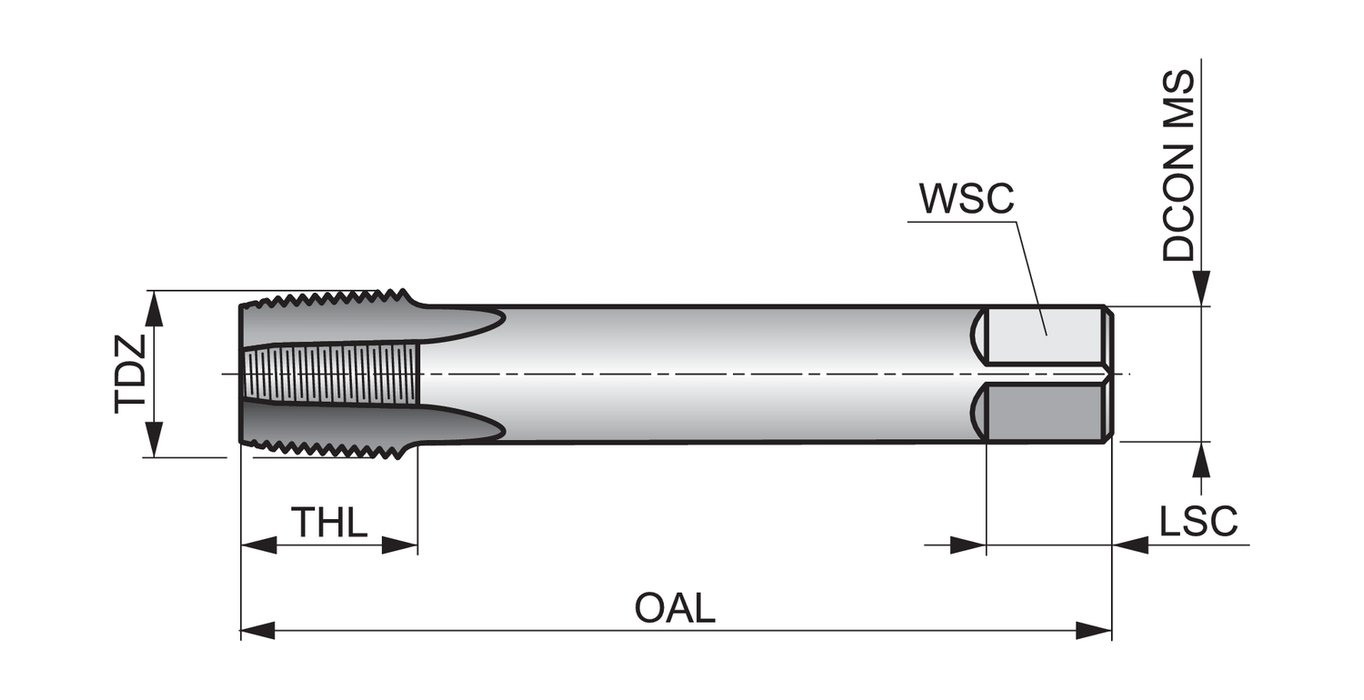

Material: HSS-E-PM

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 5.9055

Connetion Diameter: 1.1024

Tool Direction: Right

Diameter Size: 1"

Thread Diameter - in: 1.3071

Thread Diameter - mm: 33.2

TPI: 11.5

Thread Form: NPT - National taper pipe

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 127599

EAN: 7320760127599

MFG Part Number: 5977548
