E7081/8

E7081/8

SKU DOR5977560
by Dormer Pramet
Primary Use: Possible Use:

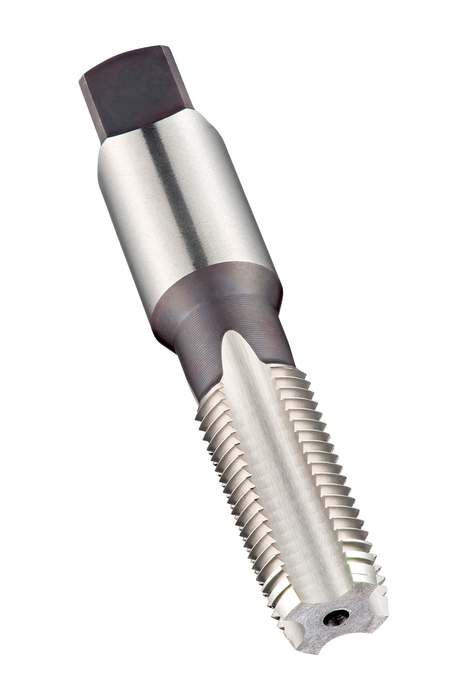

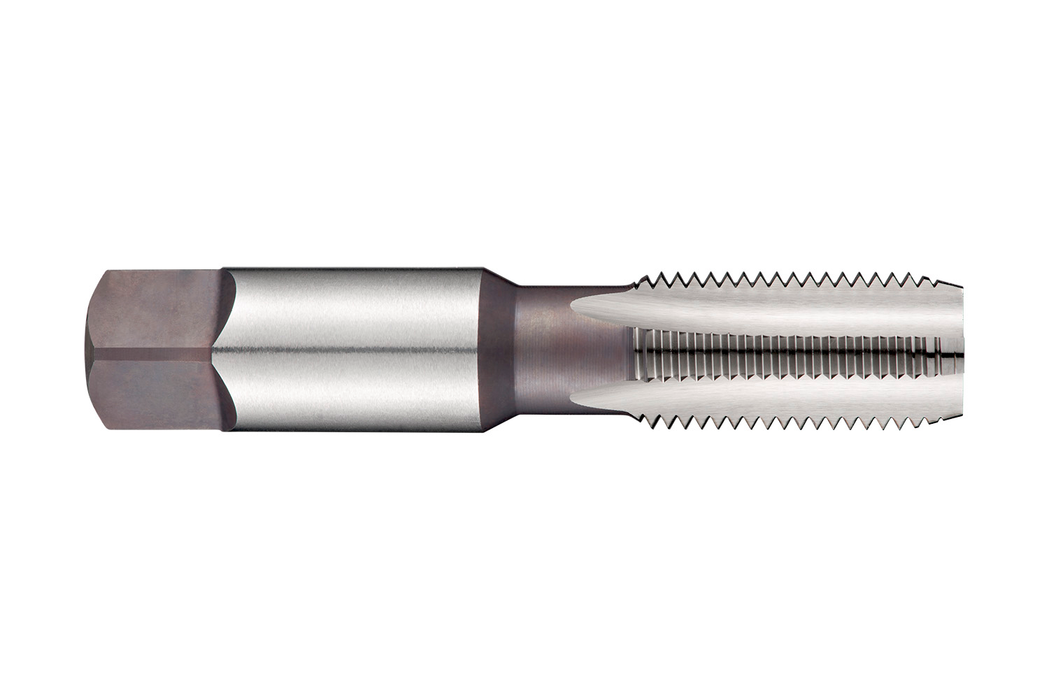

Straight flute tap with chamfer form C with a 2-3xP plug lead, for National Pipe Straight thread for Mechanical joints NPSM1/8" with 27 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 11.1mm shank and 8.3mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and alloy steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$41.94 - $41.94
$41.94
$41.94 - $41.94
$41.94
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

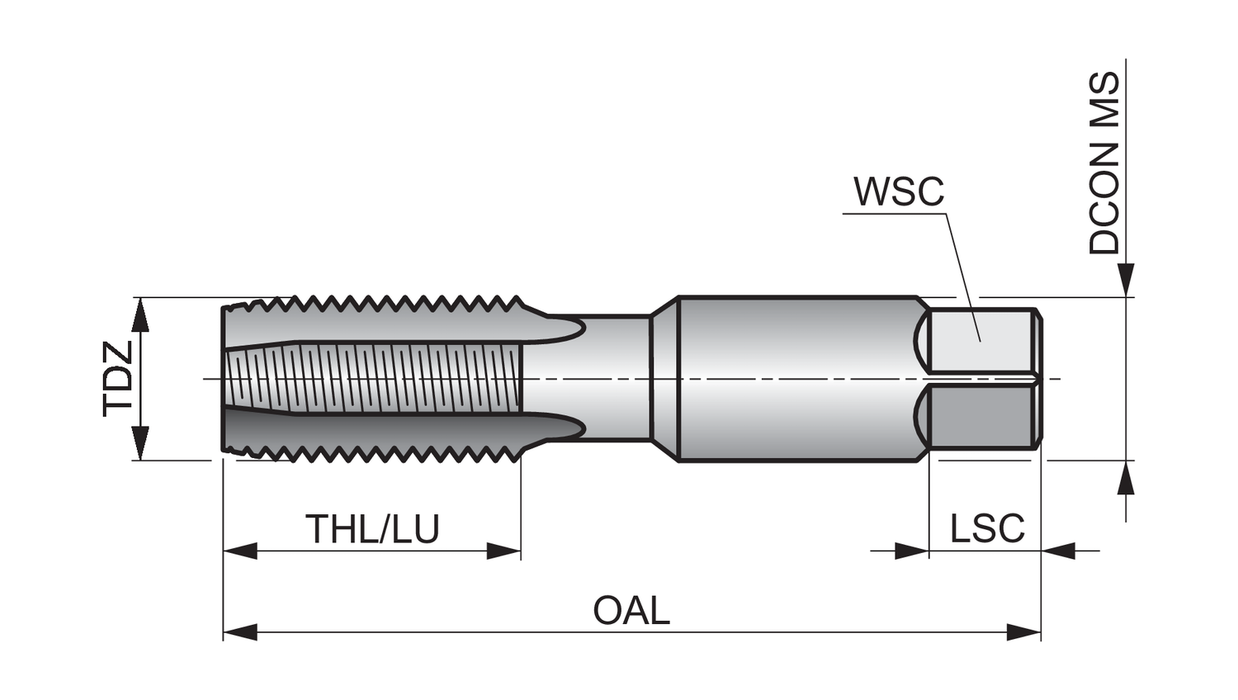

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 2.7559

Connetion Diameter: 0.437

Tool Direction: Right

Diameter Size: 1/8

Thread Diameter - in: 0.4051

Thread Diameter - mm: 10.29

TPI: 27.0

Thread Form: NPSM - National straight pipe mechanical

Shank: Cylindrical shank with Square

Usable Length: 0.748

Grade: Bright

EDP: 99759

EAN: 7320760099759

MFG Part Number: 5977560
