E7143/8

E7143/8

SKU DOR5977566
by Dormer Pramet
Primary Use: Possible Use:

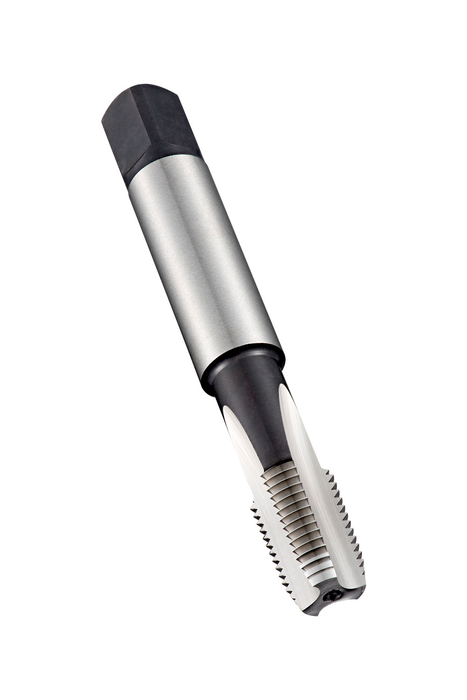

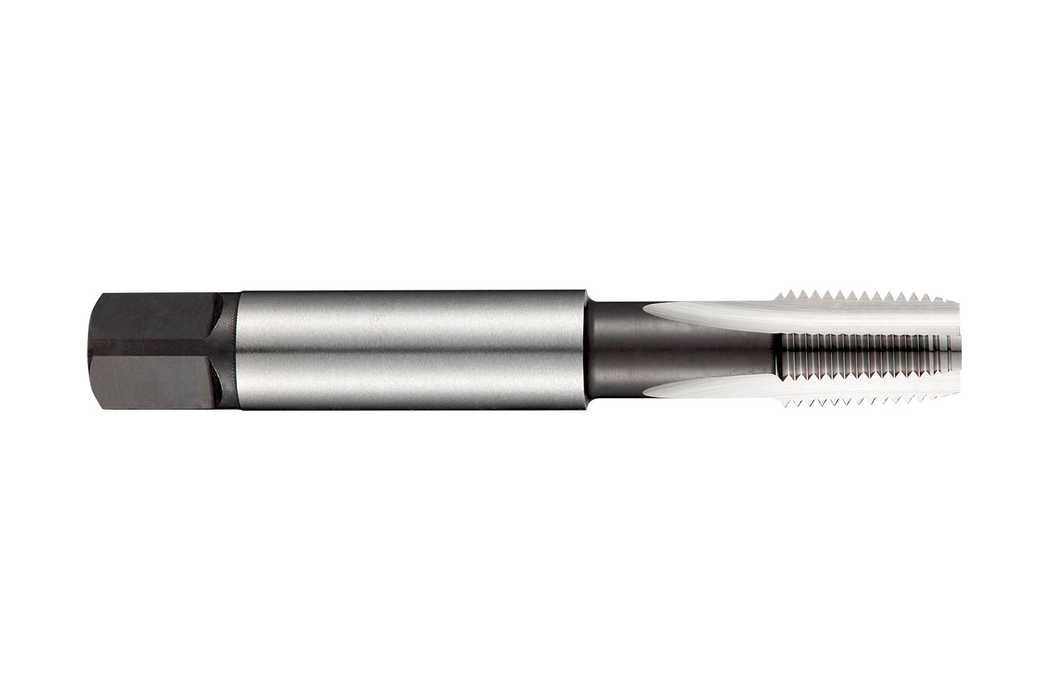

Straight flute tap with chamfer form C with a 2-3xP plug lead, for National Pipe Taper thread NPT 3/8" with 18 TPI and Normal class of fit, dimensions according to DORMER-ANSI standard with 16.0mm shank and 12.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining, plain carbon and alloy steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$99.60 - $99.60
$99.60
$99.60 - $99.60
$99.60
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

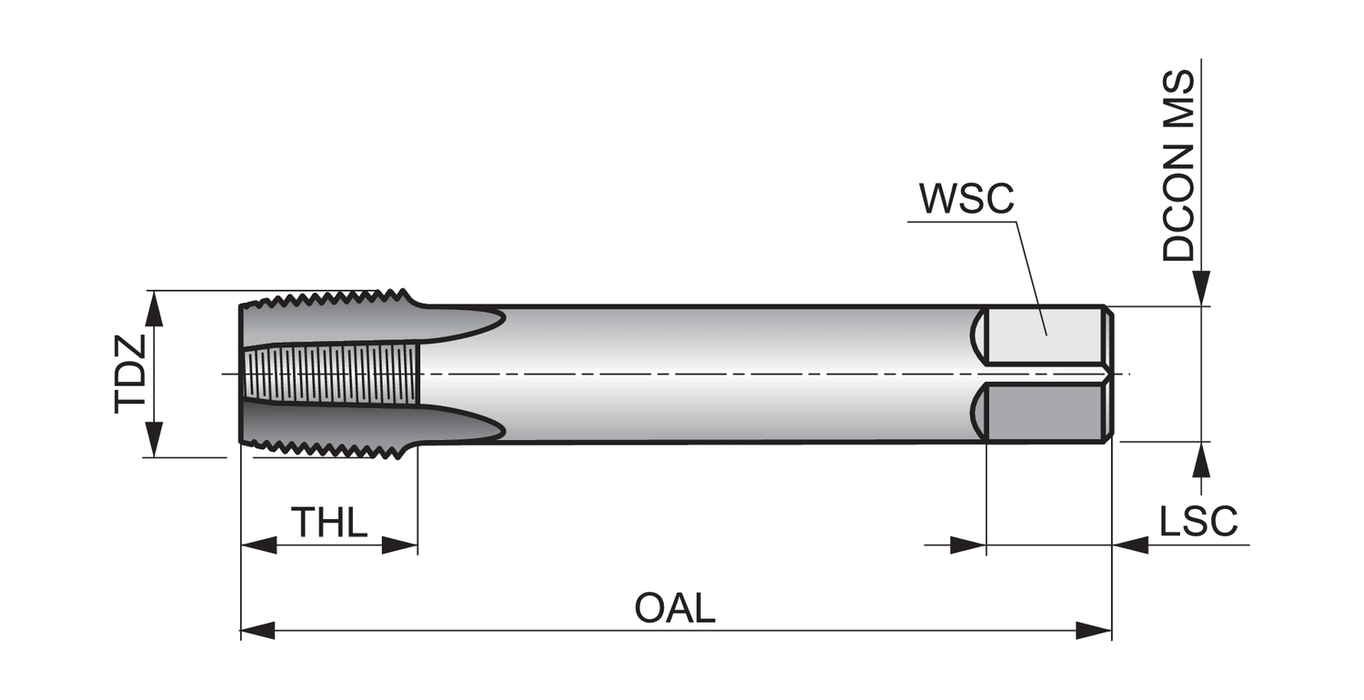

Material: HSS-E-PM

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 4.3307

Connetion Diameter: 0.6299

Tool Direction: Right

Diameter Size: 3/8

Thread Diameter - in: 0.6709

Thread Diameter - mm: 17.04

TPI: 18.0

Thread Form: NPT - National taper pipe

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 127698

EAN: 7320760127698

MFG Part Number: 5977566
