E7083/8

E7083/8

SKU DOR5977572
by Dormer Pramet
Primary Use: Possible Use:

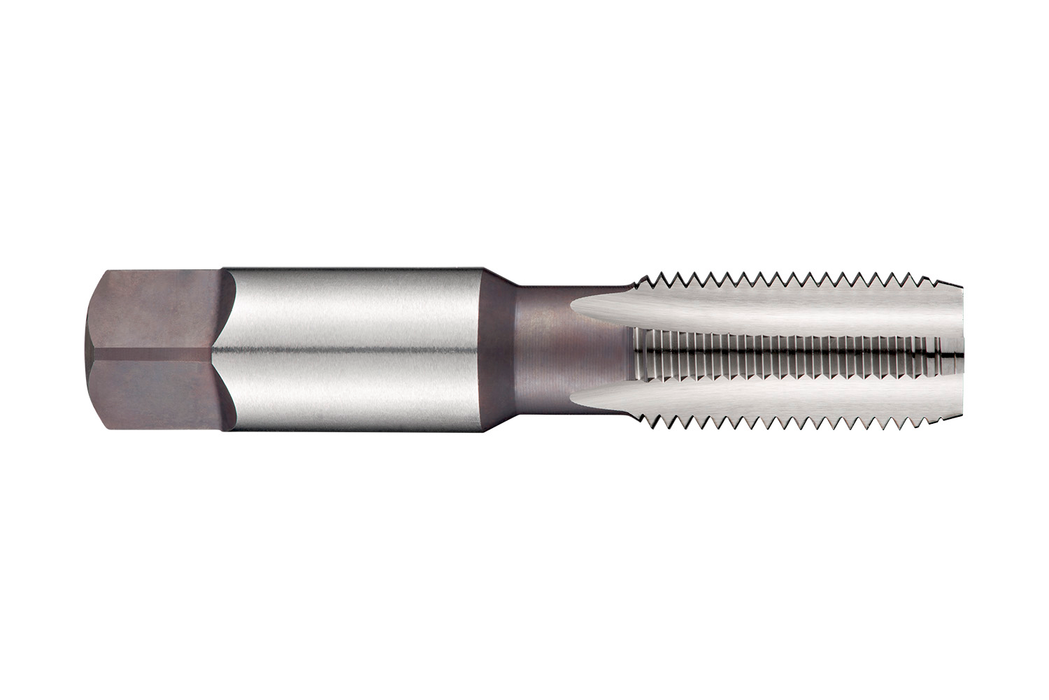

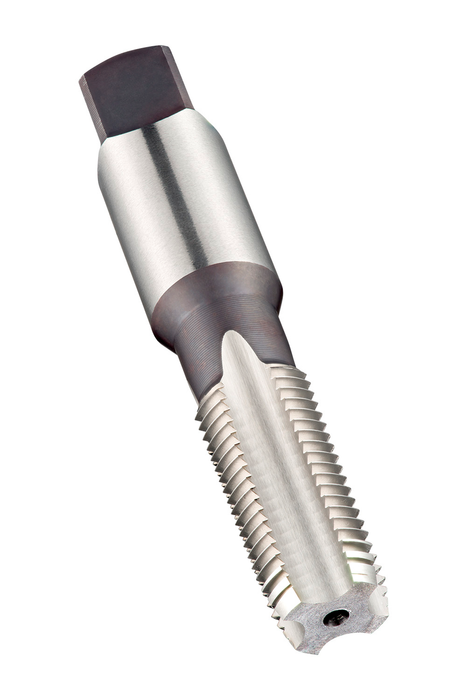

Straight flute tap with chamfer form C with a 2-3xP plug lead, for National Pipe Straight thread for Mechanical joints NPSM3/8" with 18 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 17.8mm shank and 13.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and alloy steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$63.33 - $63.33
$63.33
$63.33 - $63.33
$63.33
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

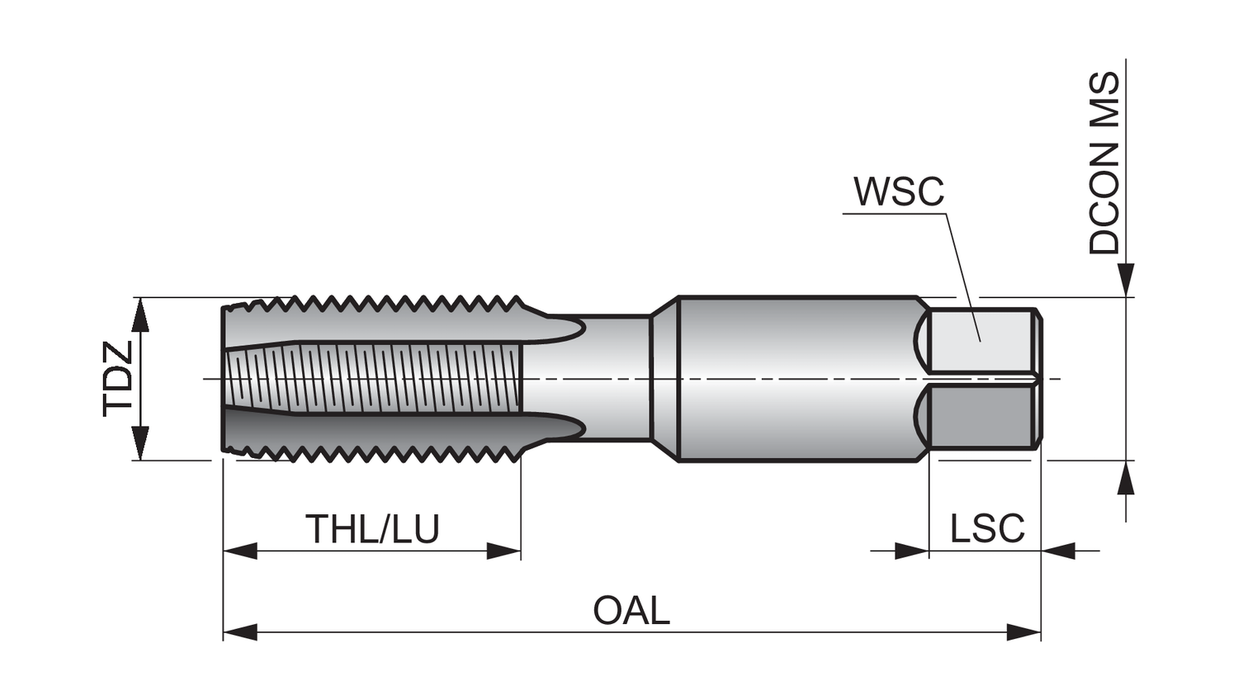

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 3.1496

Connetion Diameter: 0.7008

Tool Direction: Right

Diameter Size: 3/8

Thread Diameter - in: 0.6752

Thread Diameter - mm: 17.15

TPI: 18.0

Thread Form: NPSM - National straight pipe mechanical

Shank: Cylindrical shank with Square

Usable Length: 1.063

Grade: Bright

EDP: 99773

EAN: 7320760099773

MFG Part Number: 5977572
