E7203/8NO3

E7203/8NO3

SKU DOR5977588
by Dormer Pramet
Primary Use:

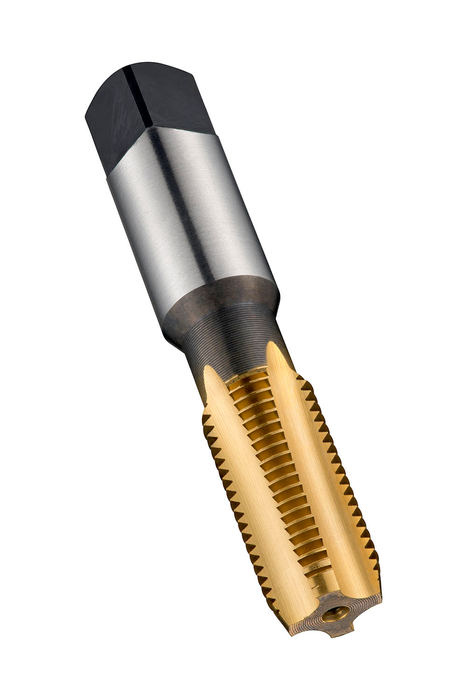

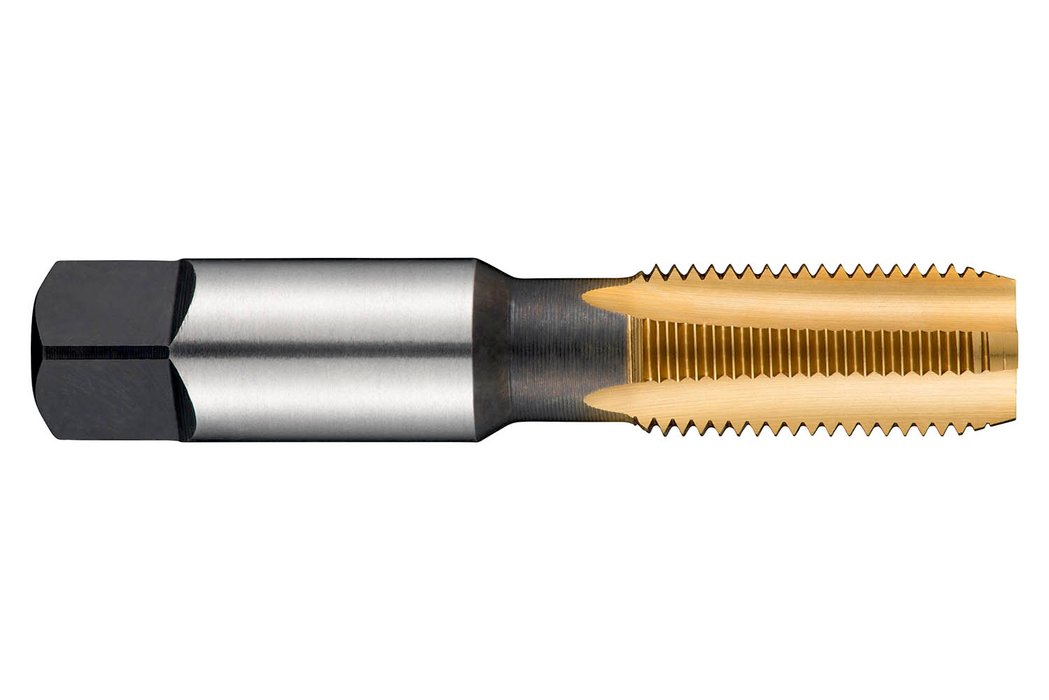

Straight flute tap NO3 with a 2-3xP plug lead, for (Dryseal) National Pipe Straight thread for Fuel lines NPSF 3/8" with 18 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 17.8mm shank and 13.5mm square drive, HSS with TiN coating for 1.5xD through or blind hole threading in alloy steel, cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$92.56 - $92.56
$92.56
$92.56 - $92.56
$92.56
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

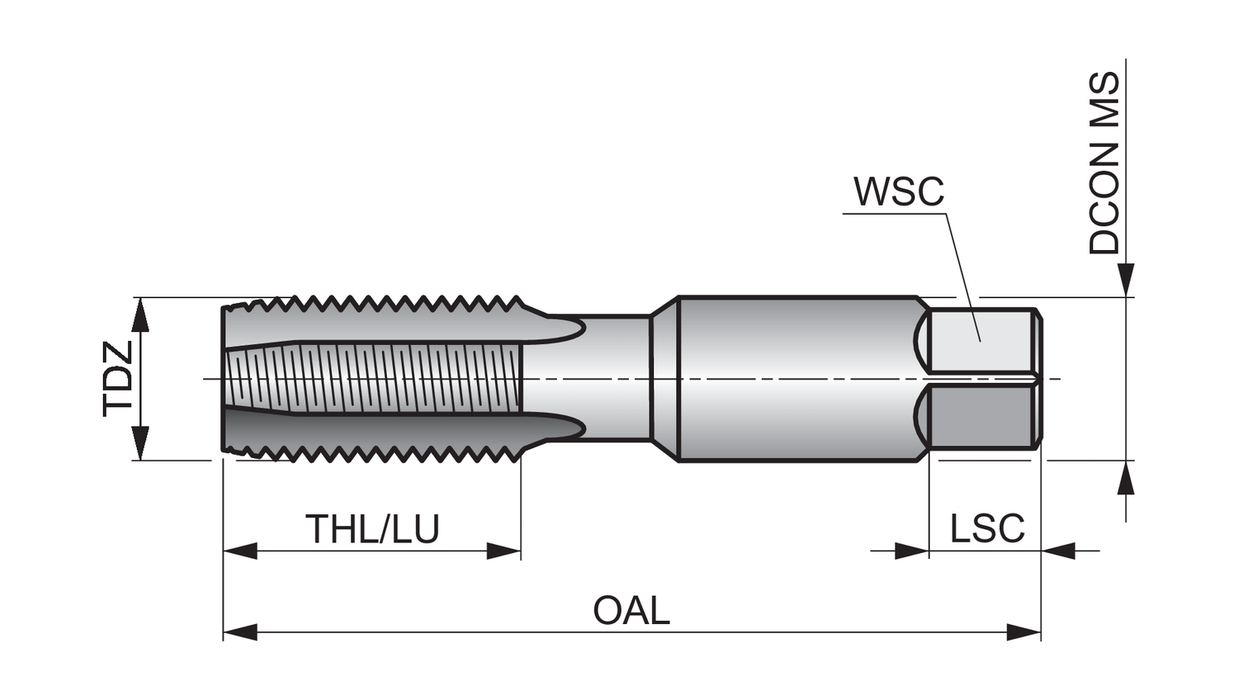

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 3.1496

Connetion Diameter: 0.7008

Tool Direction: Right

Diameter Size: 3/8

Thread Diameter - in: 0.6752

Thread Diameter - mm: 17.15

TPI: 18.0

Thread Form: NPSF - National straight pipe fuel

Shank: Cylindrical shank with Square

Usable Length: 1.063

Grade: TiN

EDP: 161548

EAN: 7320760161548

MFG Part Number: 5977588
