E7111.1/2

E7111.1/2

SKU DOR5977658
by Dormer Pramet
Primary Use: Possible Use:

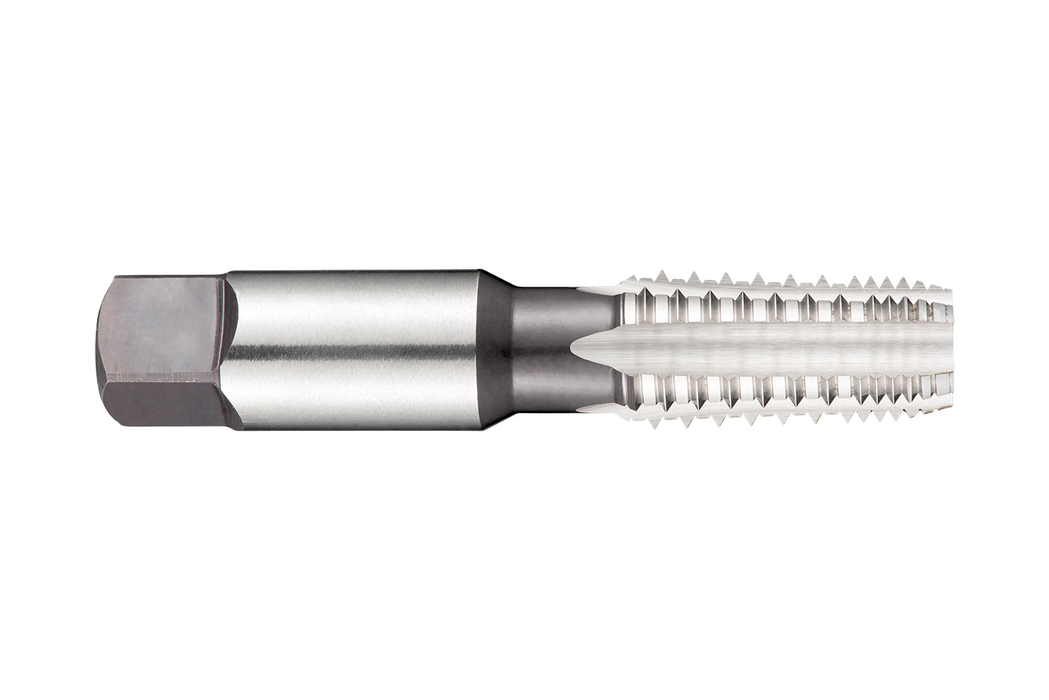

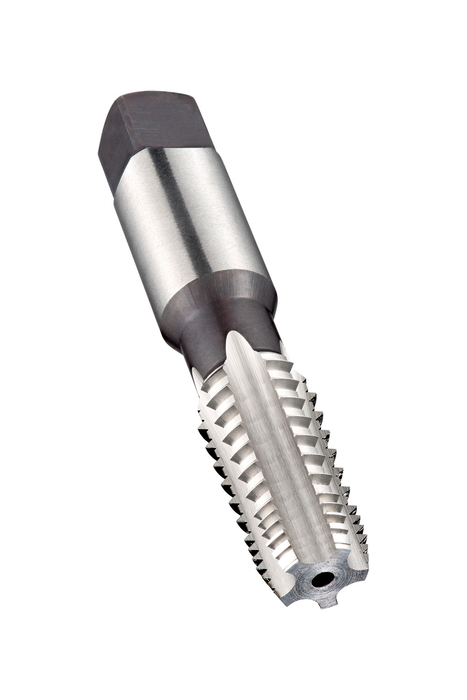

Straight flute tap with chamfer form C with a 2-3xP plug lead, for National Pipe Taper thread NPT 1.1/2" with 11.5 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 38.1mm shank and 28.6mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in alloy steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$534.89 - $534.89
$534.89
$534.89 - $534.89
$534.89
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

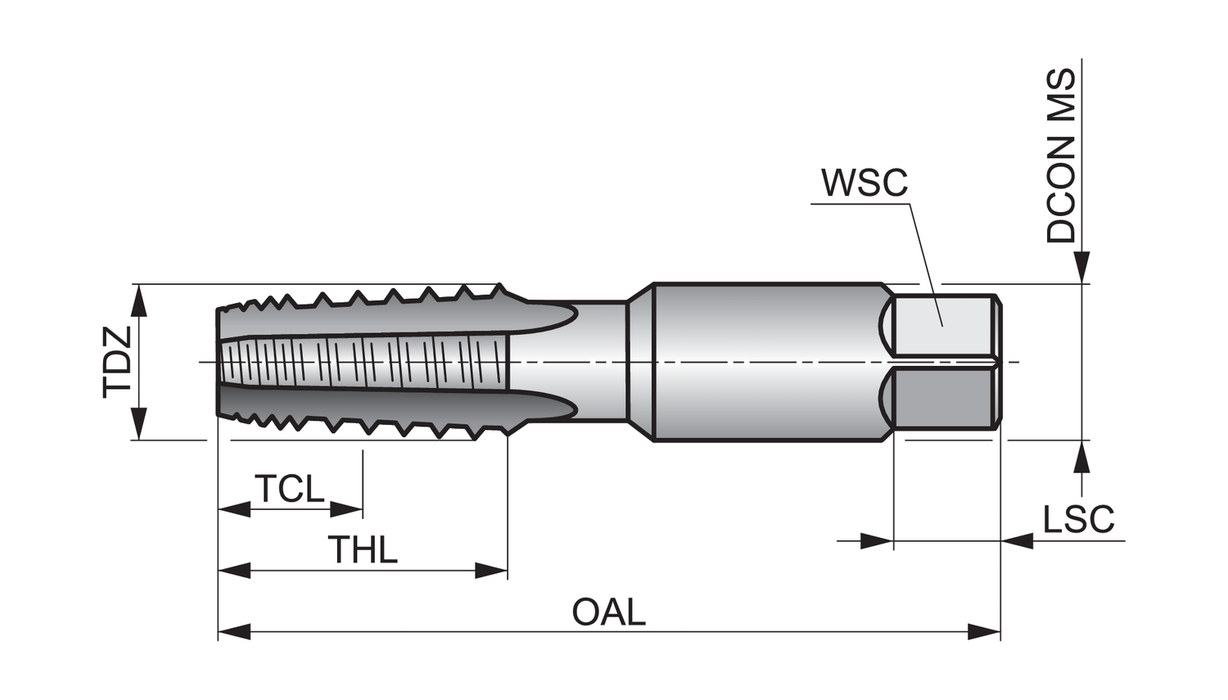

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 5.315

Connetion Diameter: 1.5

Tool Direction: Right

Diameter Size: 1.1/2

Thread Diameter - in: 1.9

Thread Diameter - mm: 48.26

TPI: 11.5

Thread Form: NPT - National taper pipe

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 124079

EAN: 7320760124079

MFG Part Number: 5977658
