E7111/2

E7111/2

SKU DOR5977660
by Dormer Pramet
Primary Use: Possible Use:

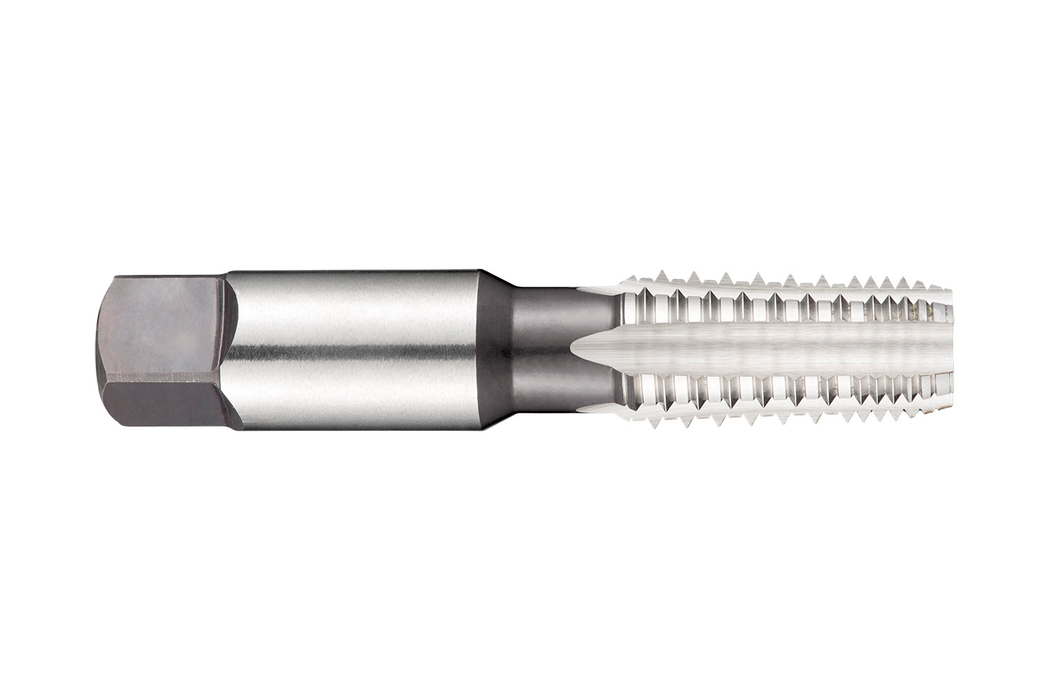

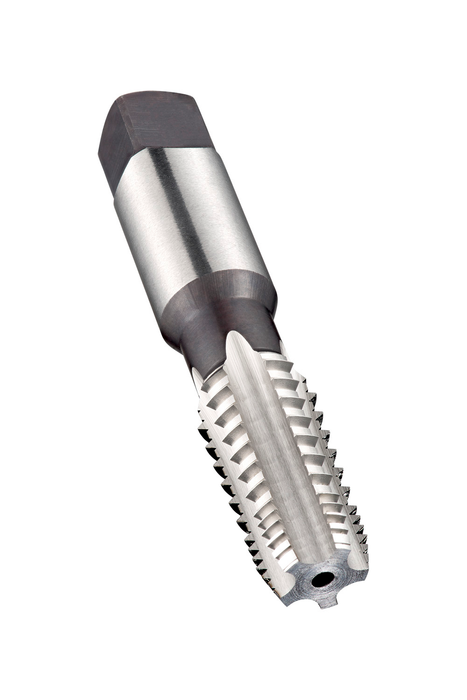

Straight flute tap with chamfer form C with a 2-3xP plug lead, for National Pipe Taper thread NPT 1/2" with 14 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 17.5mm shank and 13.1mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in alloy steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$130.56 - $130.56
$130.56
$130.56 - $130.56
$130.56
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

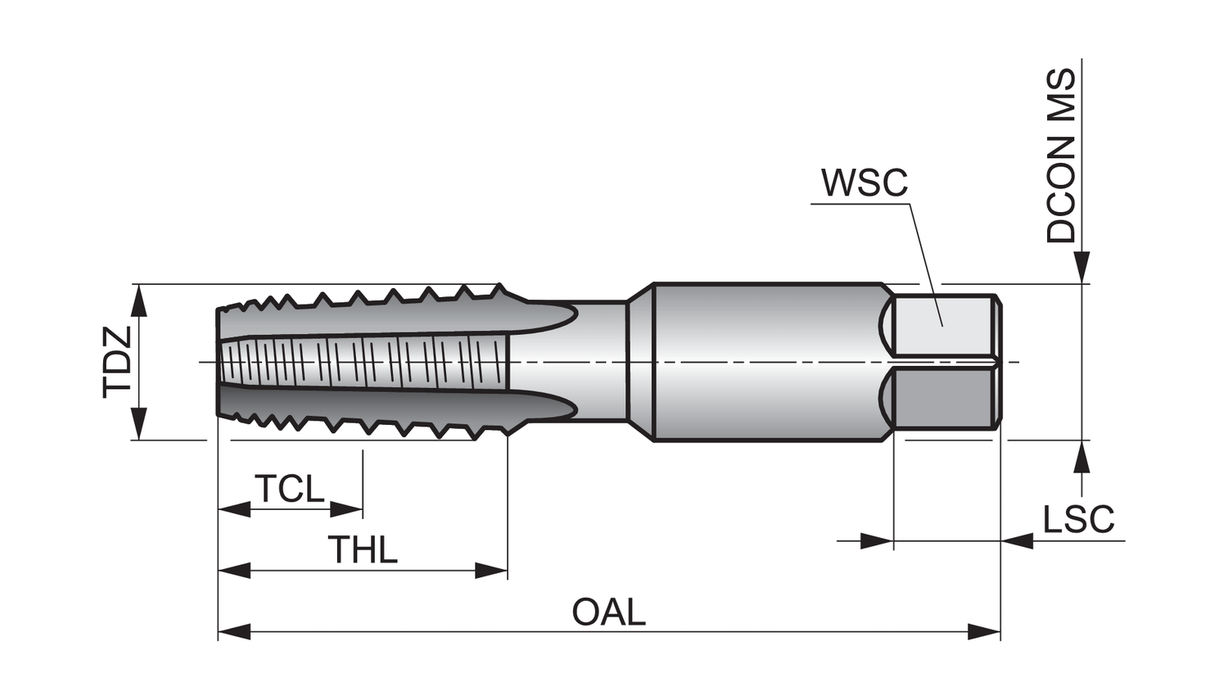

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 3.937

Connetion Diameter: 0.689

Tool Direction: Right

Diameter Size: 1/2

Thread Diameter - in: 0.8398

Thread Diameter - mm: 21.33

TPI: 14.0

Thread Form: NPT - National taper pipe

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 99933

EAN: 7320760099933

MFG Part Number: 5977660
