E7111/4

E7111/4

SKU DOR5977662
by Dormer Pramet
Primary Use: Possible Use:

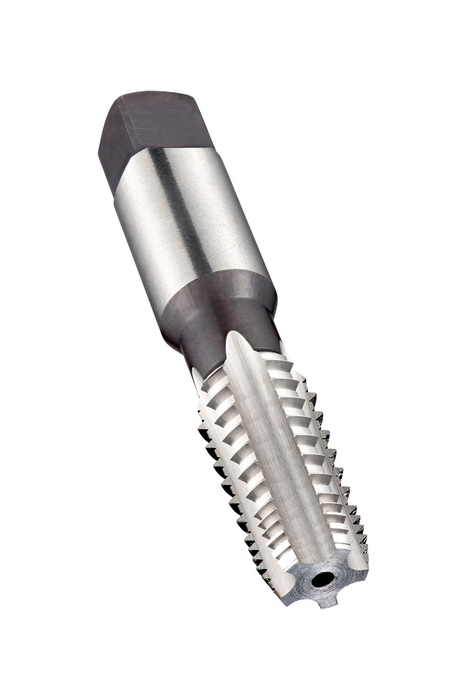

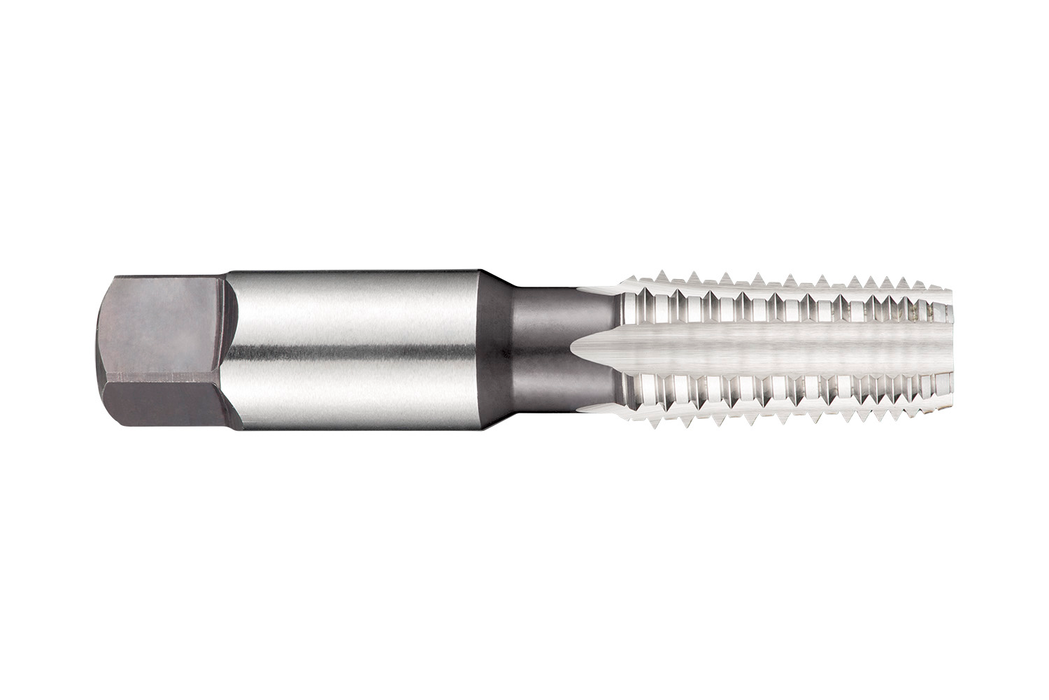

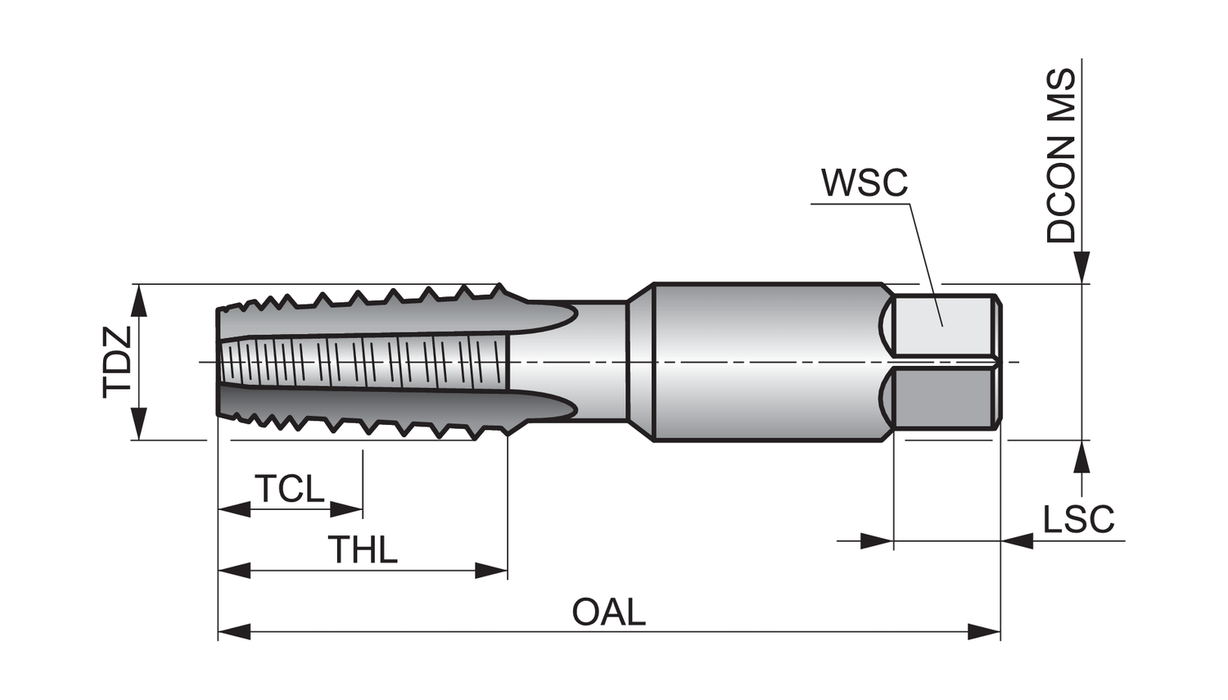

Straight flute tap with chamfer form C with a 2-3xP plug lead, for National Pipe Taper thread NPT 1/4" with 18 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 14.3mm shank and 10.7mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in alloy steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$64.30 - $64.30
$64.30
$64.30 - $64.30
$64.30
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 2.9528

Connetion Diameter: 0.563

Tool Direction: Right

Diameter Size: 1/4

Thread Diameter - in: 0.5402

Thread Diameter - mm: 13.72

TPI: 18.0

Thread Form: NPT - National taper pipe

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 99940

EAN: 7320760099940

MFG Part Number: 5977662
