E7121/4

E7121/4

SKU DOR5977685
by Dormer Pramet
Primary Use: Possible Use:

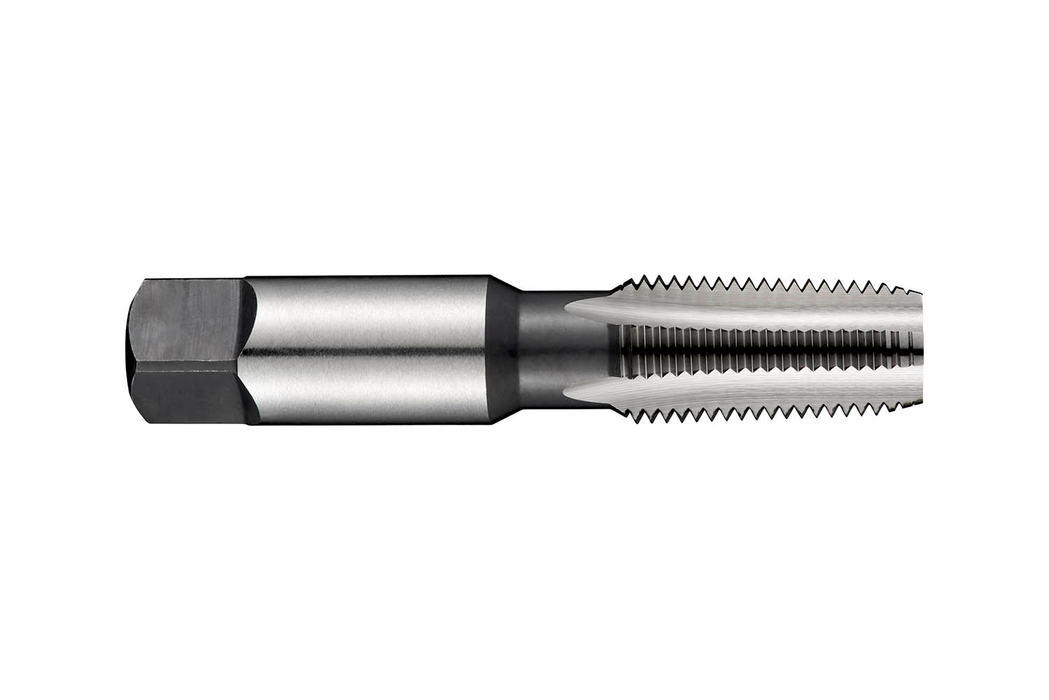

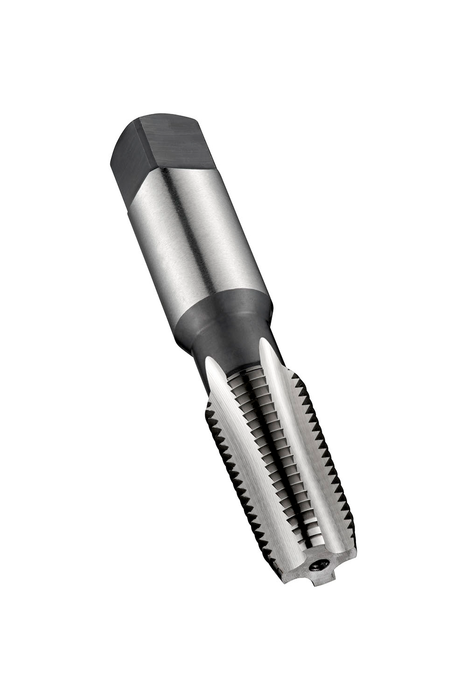

Straight flute tap with chamfer form C with a 2-3xP plug lead, for (Dryseal) National Pipe Taper thread for Fuel lines NPTF 1/4" with 18 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 14.3mm shank and 10.7mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$44.53 - $44.53
$44.53
$44.53 - $44.53
$44.53
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

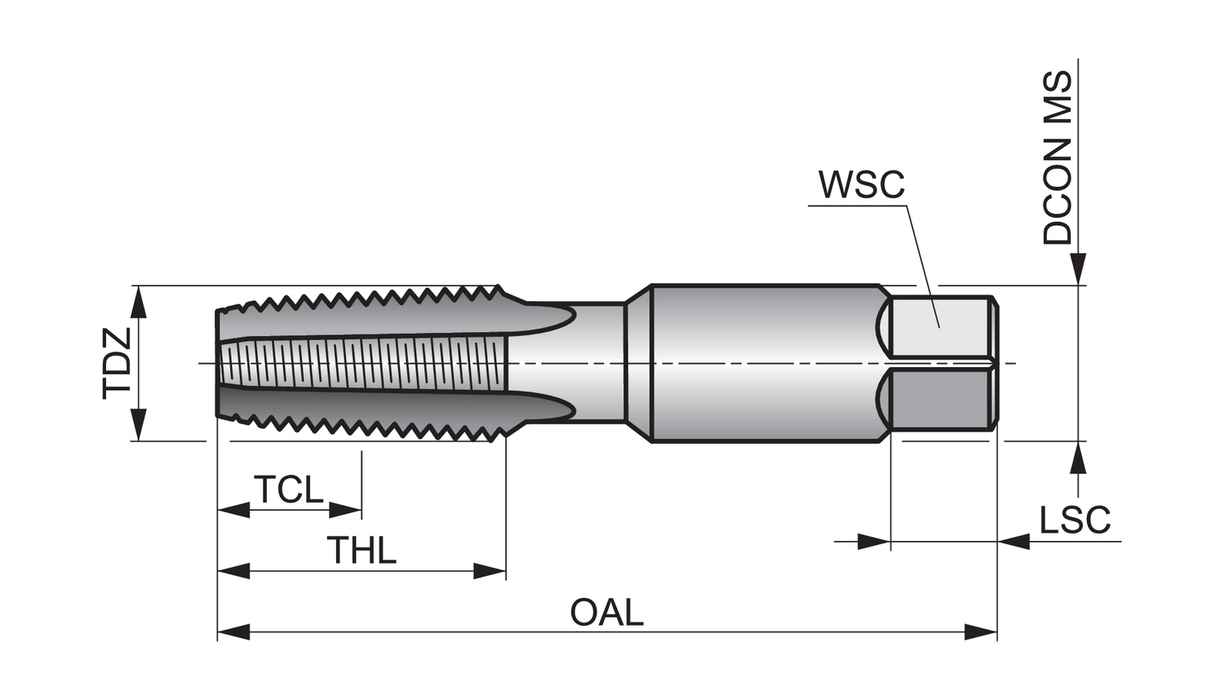

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 2.9528

Connetion Diameter: 0.563

Tool Direction: Right

Diameter Size: 1/4

Thread Diameter - in: 0.5402

Thread Diameter - mm: 13.72

TPI: 18.0

Thread Form: NPTF - National taper pipe dryseal

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 100028

EAN: 7320760100028

MFG Part Number: 5977685
