E7123/4

E7123/4

SKU DOR5977691
by Dormer Pramet
Primary Use: Possible Use:

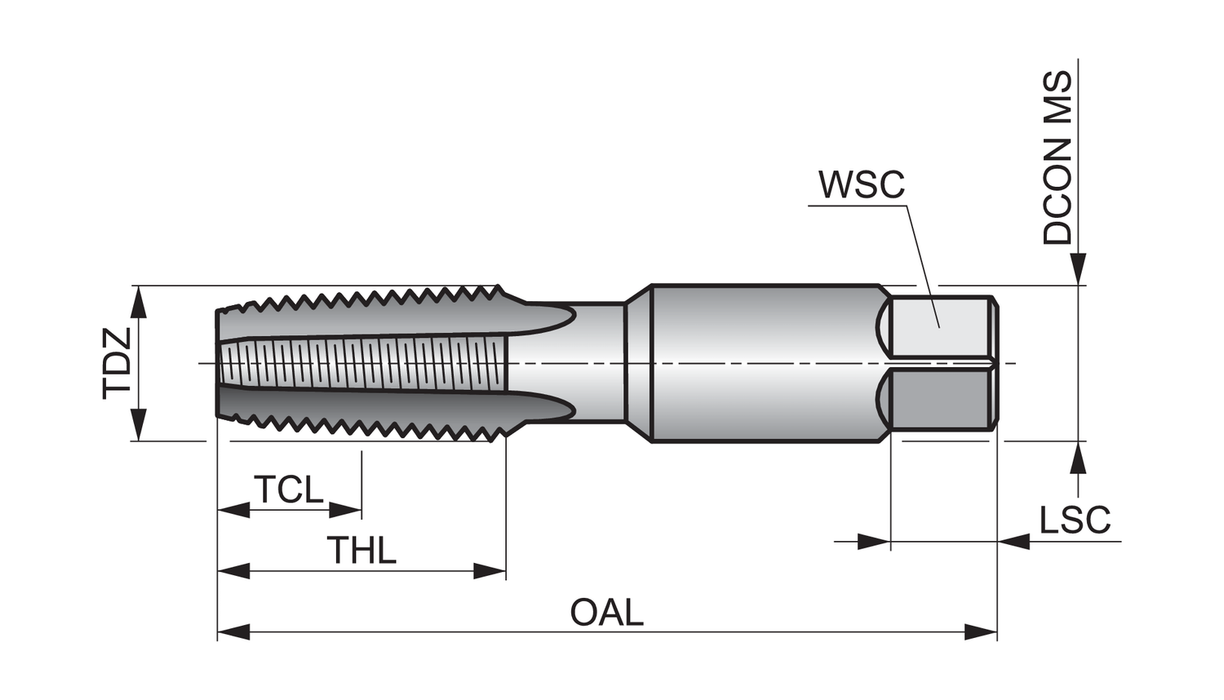

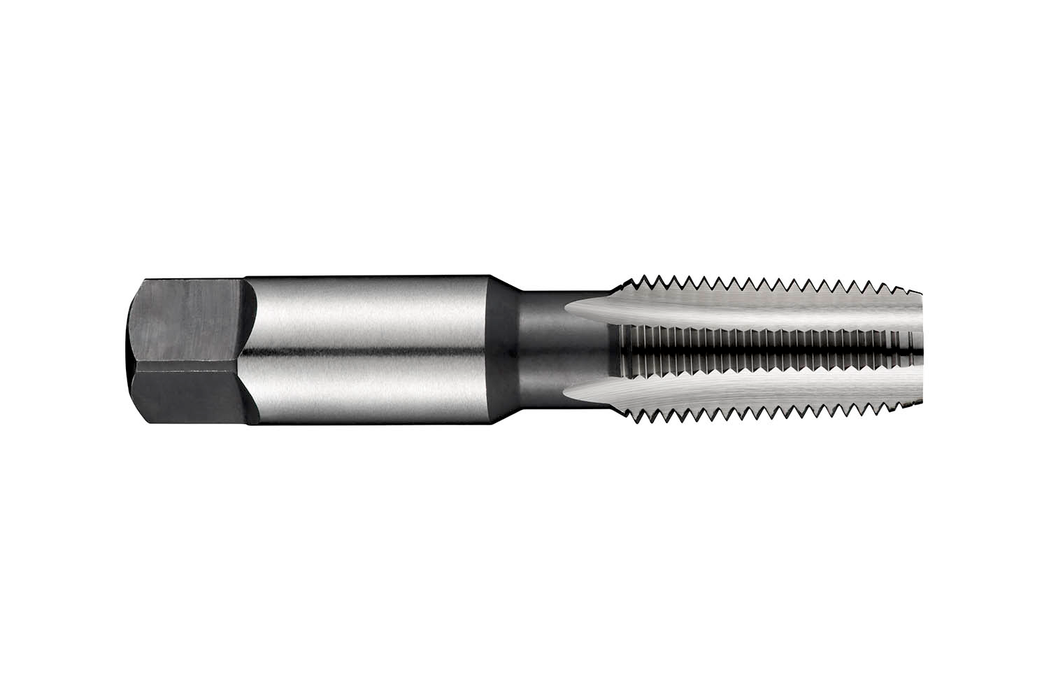

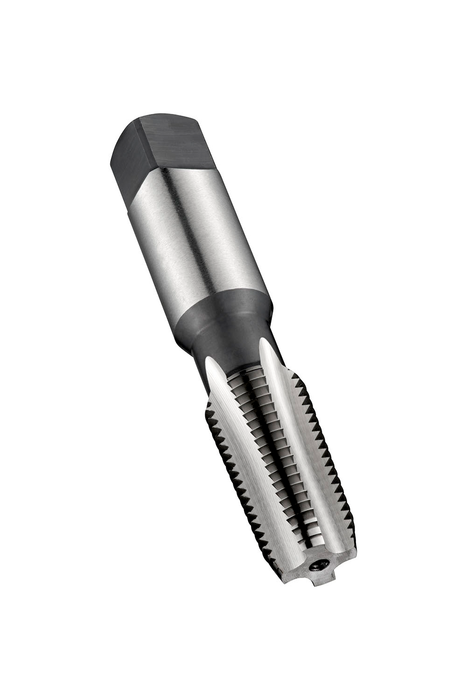

Straight flute tap with chamfer form C with a 2-3xP plug lead, for (Dryseal) National Pipe Taper thread for Fuel lines NPTF 3/4" with 14 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 23.0mm shank and 17.2mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$132.01 - $132.01
$132.01
$132.01 - $132.01
$132.01
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 4.1339

Connetion Diameter: 0.9055

Tool Direction: Right

Diameter Size: 3/4

Thread Diameter - in: 1.05

Thread Diameter - mm: 26.67

TPI: 14.0

Thread Form: NPTF - National taper pipe dryseal

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 100042

EAN: 7320760100042

MFG Part Number: 5977691
