F1501/2

F1501/2

SKU DOR5977751
by Dormer Pramet
Primary Use:

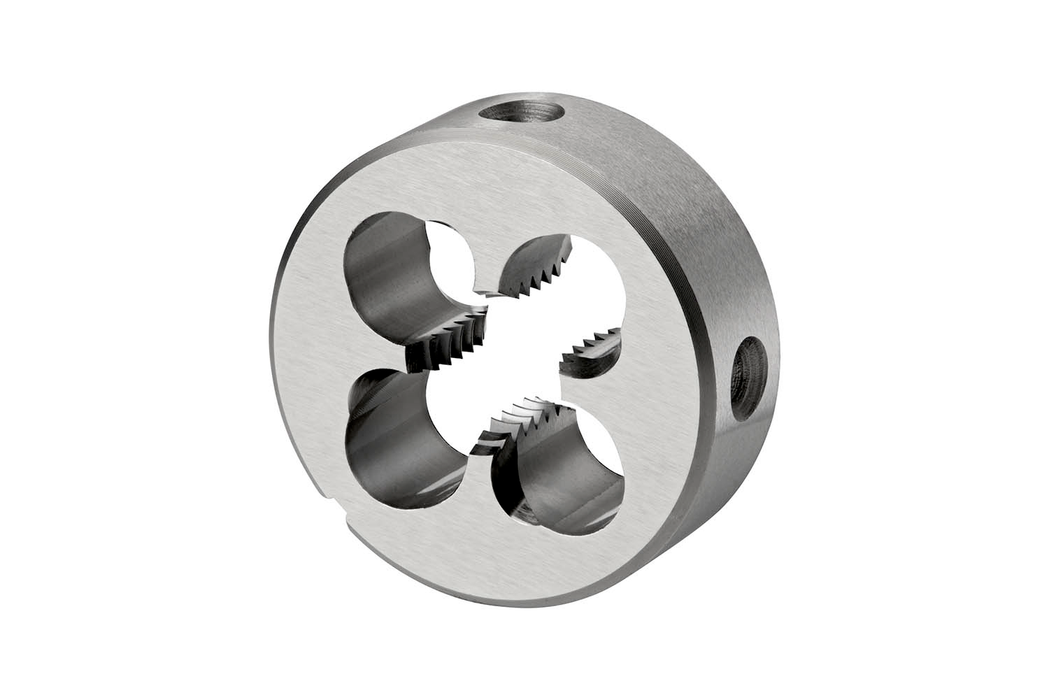

Solid round die with a gun nose, for British Standard Fine thread BSF 1/2" with 16 TPI and medium class of fit, dimensions according to ISO 2568 standard with 38mm outside diameter and 10mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$116.29 - $116.29
$116.29
$116.29 - $116.29
$116.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Overall Length (OAL): 0.3937

Tool Direction: Right

Diameter Size: 1/2

Thread Diameter - mm: 12.7

TPI: 16.0

Thread Form: BSF - British standard fine

Grade: Bright

EDP: 104736

EAN: 7320760104736

MFG Part Number: 5977751
