F201M8

F201M8

SKU DOR5977866
by Dormer Pramet
Primary Use:

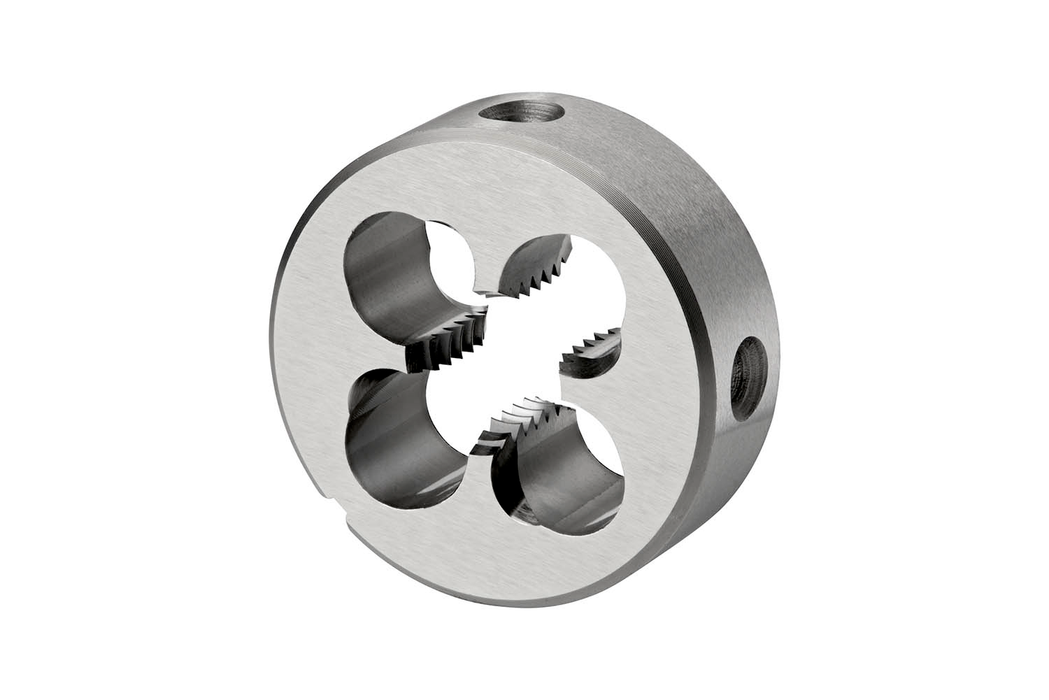

Solid round die with a gun nose, for left hand ISO-Metric thread M8 with 1.25 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 25mm outside diameter and 9mm thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$78.23 - $78.23
$78.23
$78.23 - $78.23
$78.23
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

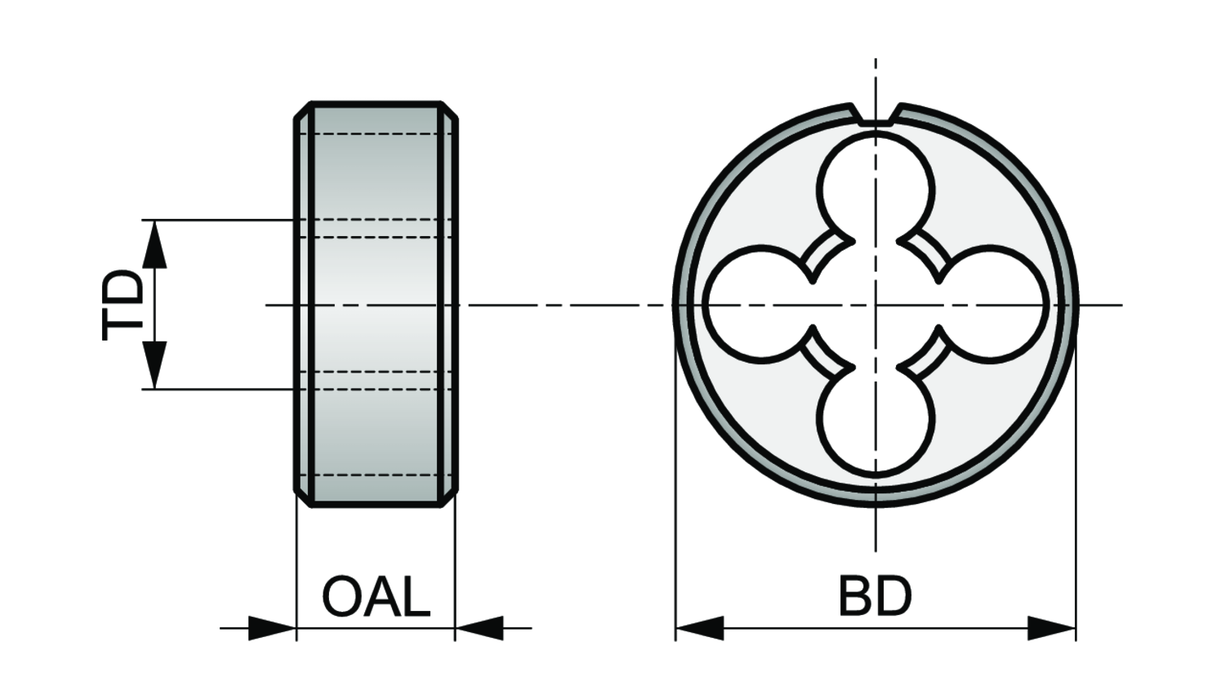

Material: HSS

Overall Length (OAL): 0.3543

Tool Direction: Left

Diameter Size: 8

Thread Diameter - mm: 8.0

Pitch - mm: 1.25

Thread Form: M - Metric coarse

Grade: Bright

EDP: 105061

EAN: 7320760105061

MFG Part Number: 5977866
