E606M3

E606M3

SKU DOR5977935
by Dormer Pramet
Primary Use: Possible Use:

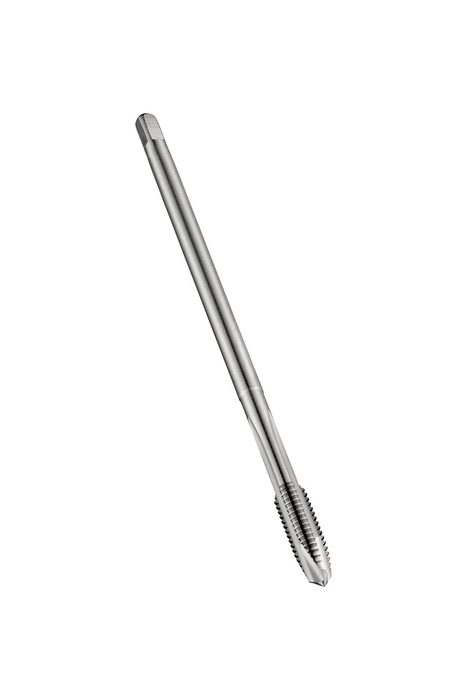

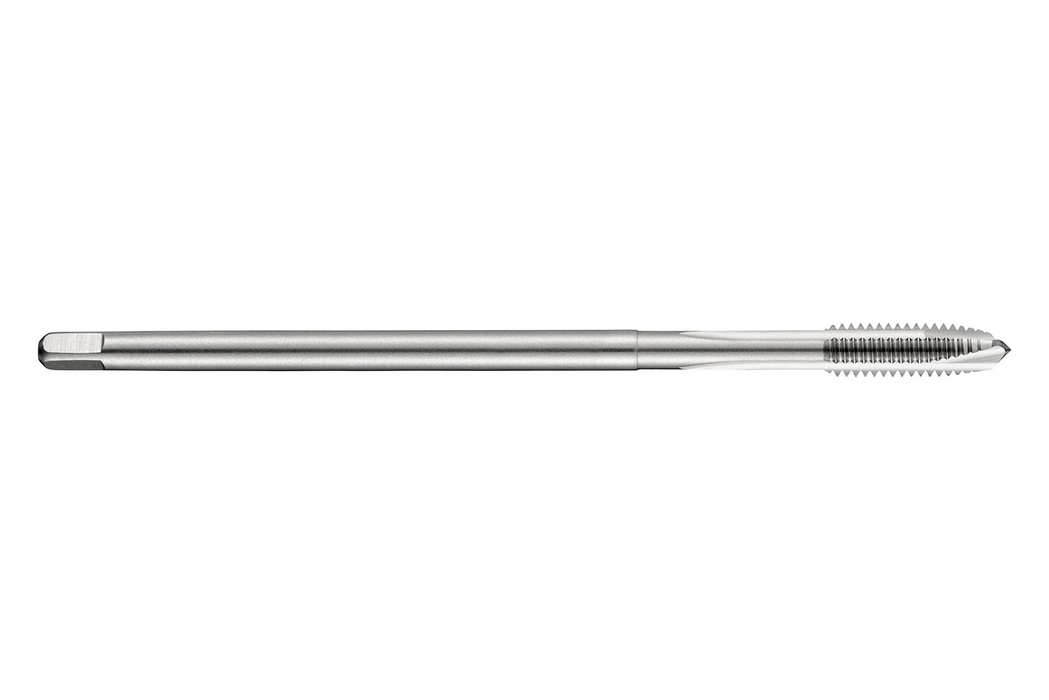

Long shank spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to ISO 2283 standard with 3.15mm shank and 2.5mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$45.44 - $45.44
$45.44
$45.44 - $45.44
$45.44
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.5984

Connetion Diameter: 0.124

Tool Direction: Right

Diameter Size: 3

Pitch - mm: 0.5

Pitch - in: 0.0197

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.7087

Grade: Bright

EDP: 123942

EAN: 7320760123942

MFG Part Number: 5977935
