E606M8

E606M8

SKU DOR5977945
by Dormer Pramet
Primary Use: Possible Use:

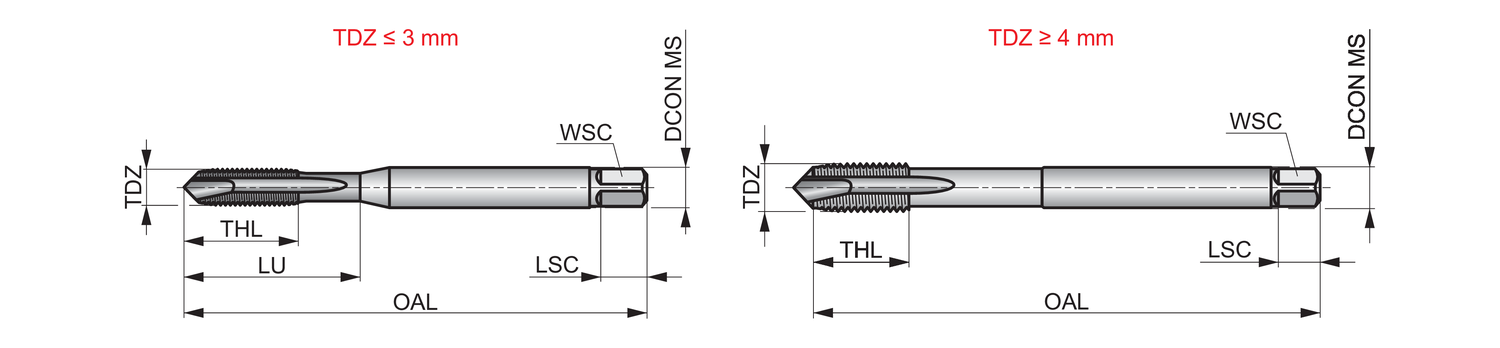

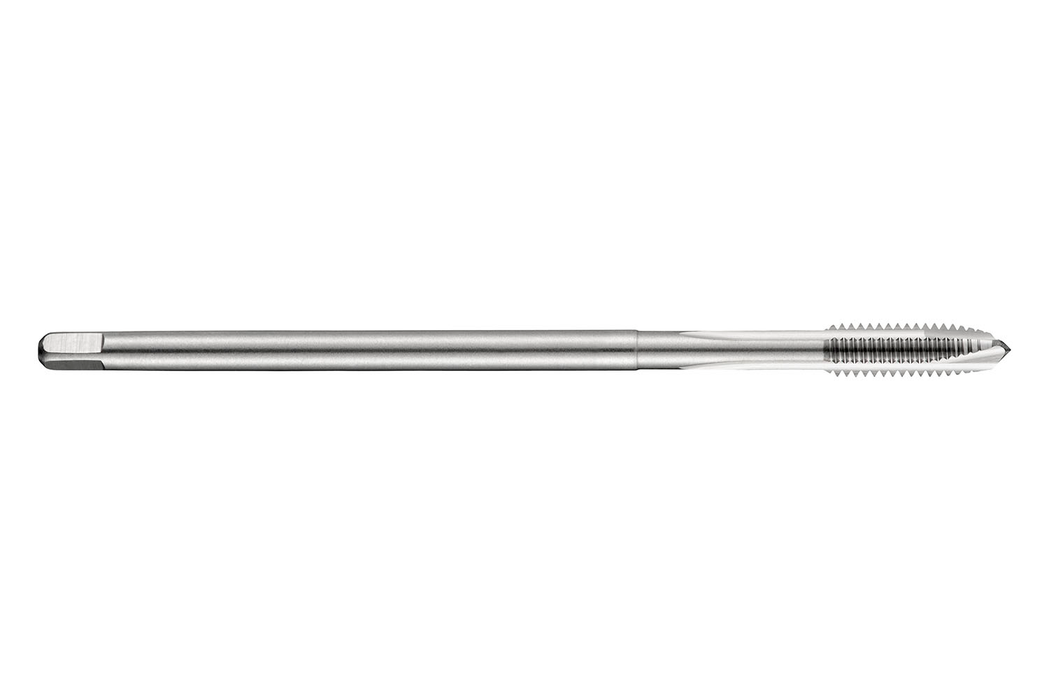

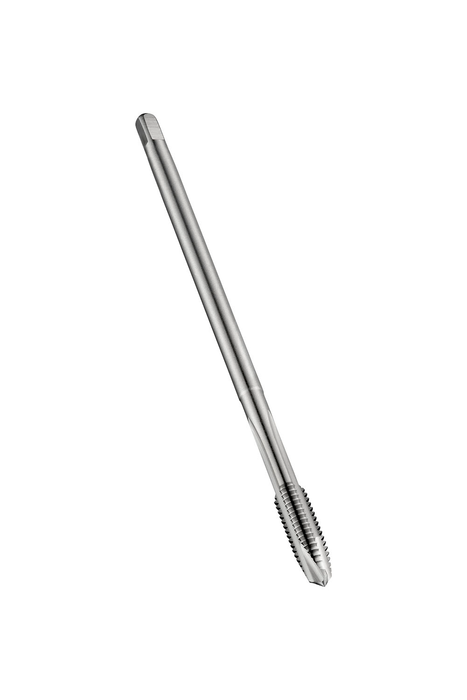

Long shank spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to ISO 2283 standard with 6.3mm shank and 5.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$43.33 - $43.33
$43.33
$43.33 - $43.33
$43.33
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.8189

Connetion Diameter: 0.248

Tool Direction: Right

Diameter Size: 8

Pitch - mm: 1.25

Pitch - in: 0.0492

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 123980

EAN: 7320760123980

MFG Part Number: 5977945
