F312M22X1.5

F312M22X1.5

SKU DOR5977954
by Dormer Pramet
Primary Use:

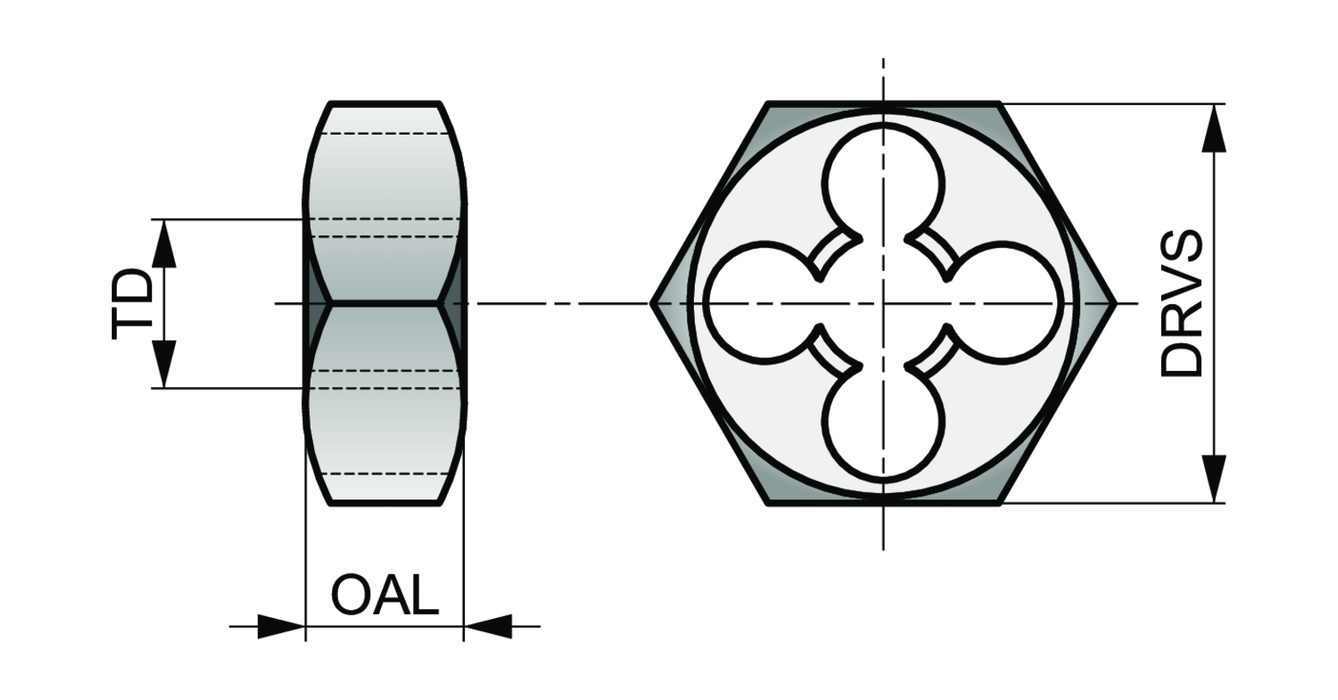

Hexagon die nut, for ISO-Metric Fine thread M22 with 1.50 mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 1.6700" width across flat and 13/16" thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$185.53 - $185.53
$185.53
$185.53 - $185.53
$185.53
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Overall Length (OAL): 0.8125

Tool Direction: Right

Diameter Size: 22

Thread Diameter - mm: 22.0

Pitch - mm: 1.5

Thread Form: MF - Metric fine

Grade: Bright

EDP: 206508

EAN: 7320760206508

MFG Part Number: 5977954
