F3201.1/8X3

F3201.1/8X3

SKU DOR5977972
by Dormer Pramet
Primary Use:

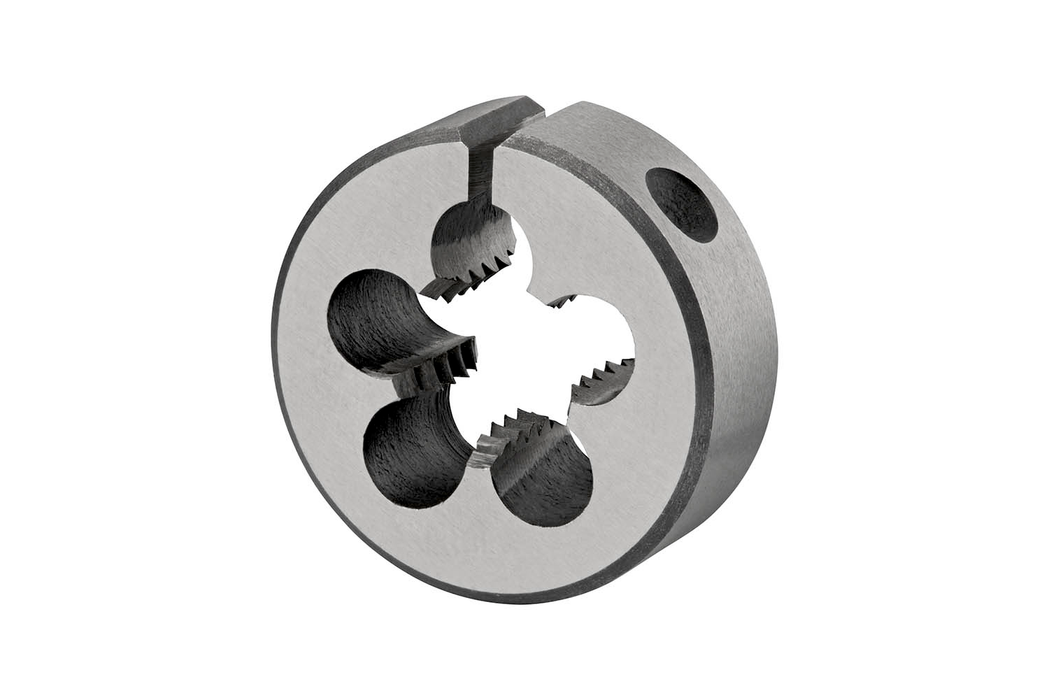

Adjustable circular split die, for Unified National Coarse thread UNC 1.1/8" with 7 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006", dimensions according to BS 1127:1950 standard with 3" outside diameter and 7/8" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$462.50 - $462.50
$462.50
$462.50 - $462.50
$462.50
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

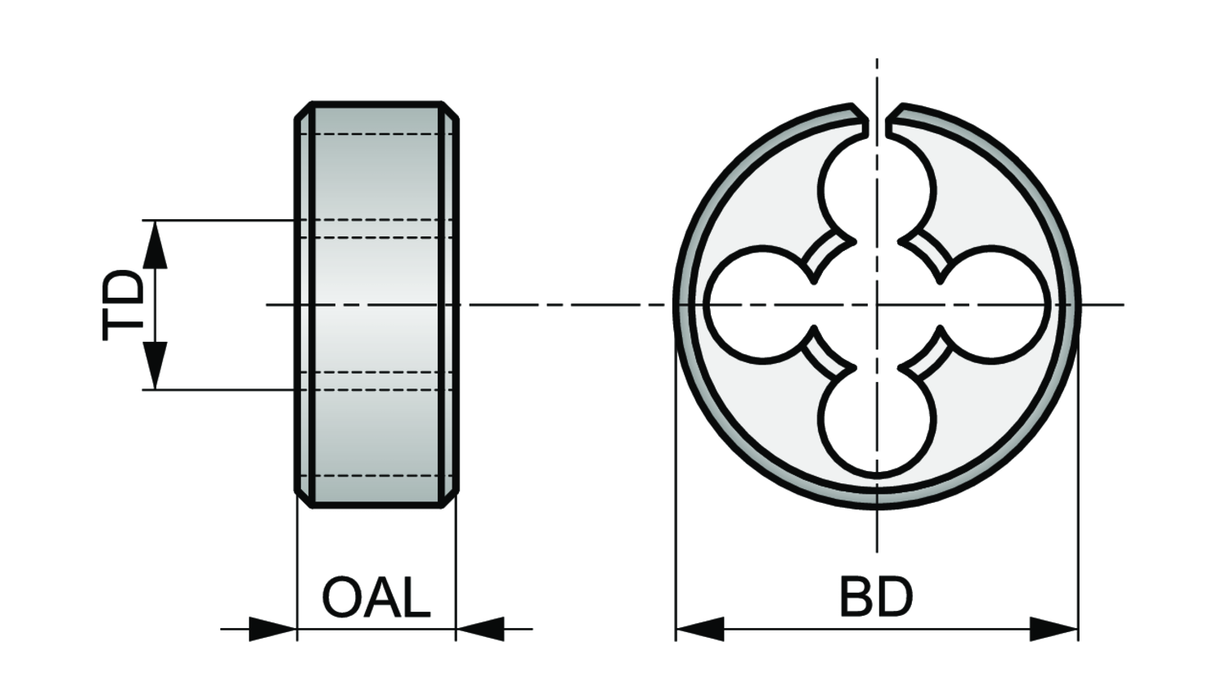

Overall Length (OAL): 0.875

Tool Direction: Right

Diameter Size: 1.1/8

Thread Diameter - mm: 28.58

TPI: 7.0

Thread Form: UNC - Unified Coarse

Grade: Bright

EDP: 206997

EAN: 7320760206997

MFG Part Number: 5977972
