E605M6

E605M6

SKU DOR5977985
by Dormer Pramet
Primary Use: Possible Use:

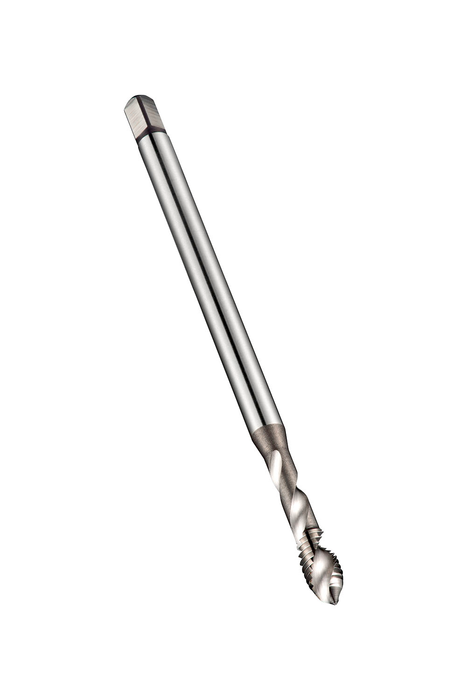

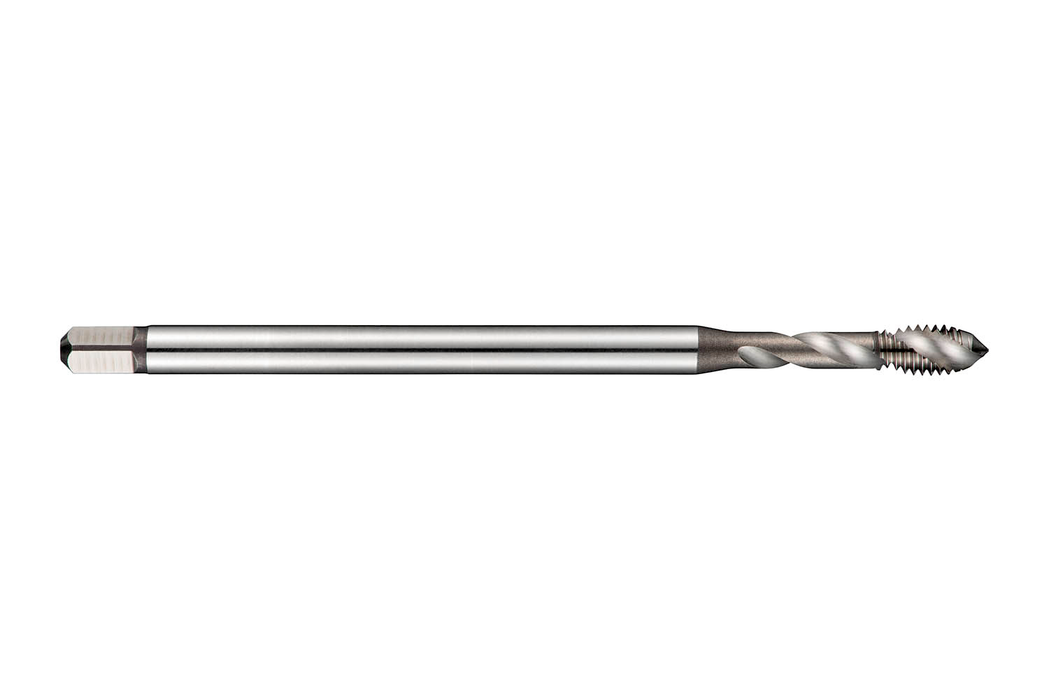

Long shank spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to ISO 2283 standard with 6.3mm shank and 5.0mm square drive, powder metallurgical HSS-E with bright finish and 40° helix angle for 2xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$81.10 - $81.10
$81.10
$81.10 - $81.10
$81.10
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

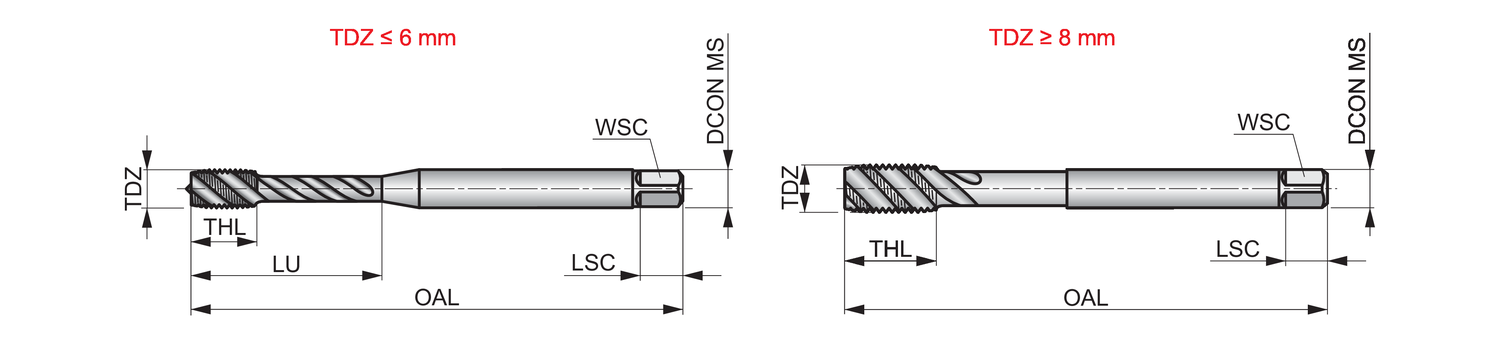

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 3.5039

Connetion Diameter: 0.248

Tool Direction: Right

Diameter Size: 6

Pitch - mm: 1.0

Pitch - in: 0.0394

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 1.1417

Grade: Bright

EDP: 123874

EAN: 7320760123874

MFG Part Number: 5977985
