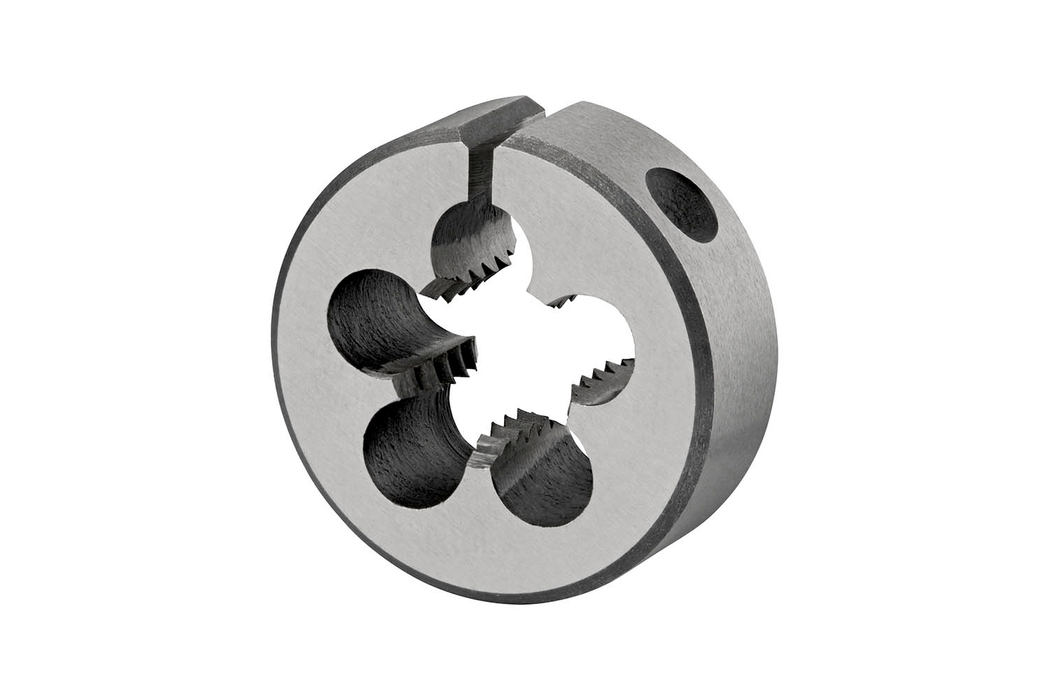

F32010-24X1

F32010-24X1

SKU DOR5978004
by Dormer Pramet
Primary Use:

Adjustable circular split die, for Unified National Coarse thread UNC 10 with 24 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006", dimensions according to BS 1127:1950 standard with 1" outside diameter and 3/8" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$71.89 - $71.89
$71.89
$71.89 - $71.89
$71.89
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

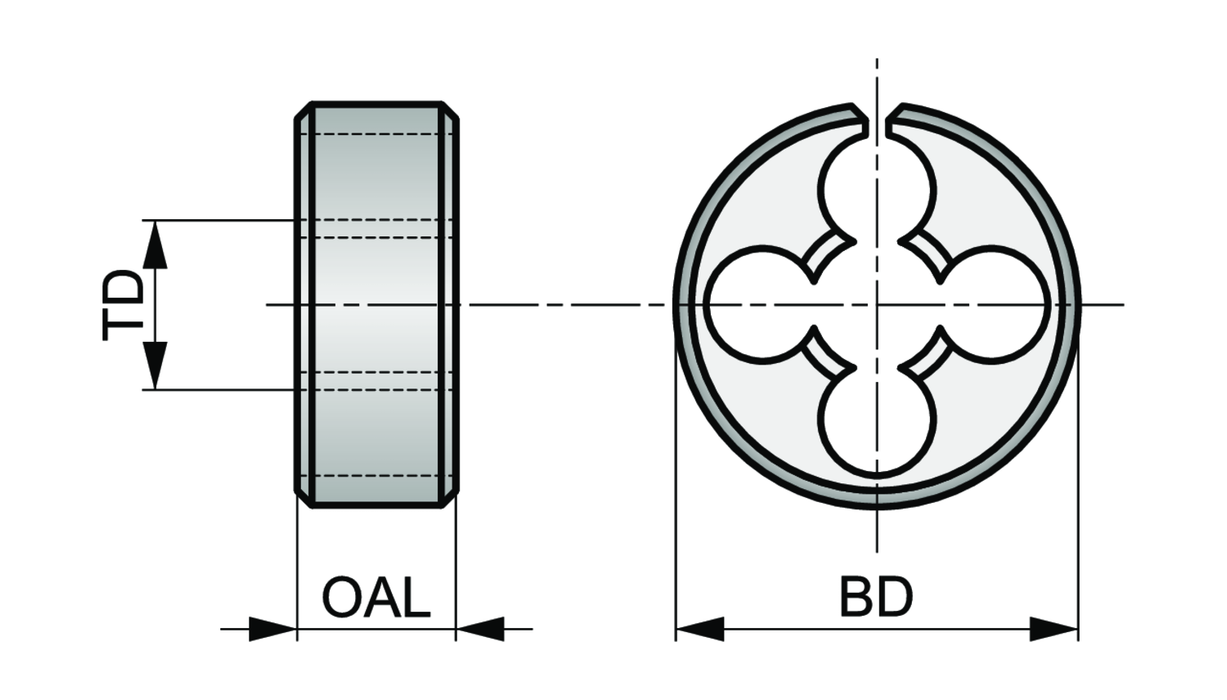

Material: HSS

Overall Length (OAL): 0.375

Tool Direction: Right

Diameter Size: 10

Thread Diameter - mm: 4.83

TPI: 24.0

Thread Form: UNC - Unified Coarse

Grade: Bright

EDP: 206690

EAN: 7320760206690

MFG Part Number: 5978004
