E606M10

E606M10

SKU DOR5978068
by Dormer Pramet
Primary Use: Possible Use:

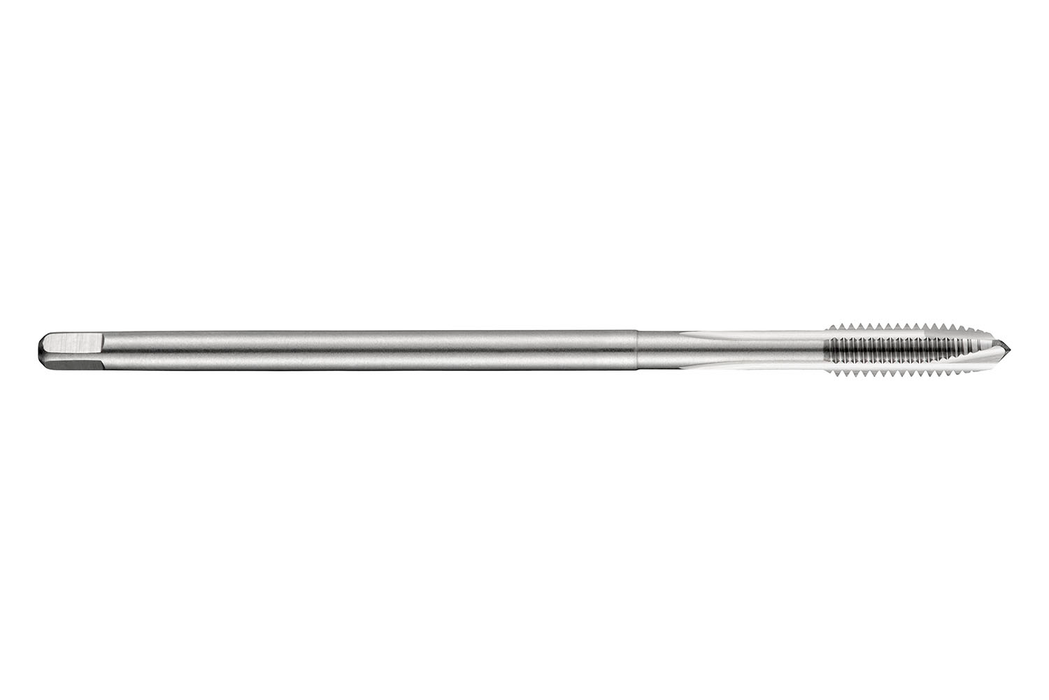

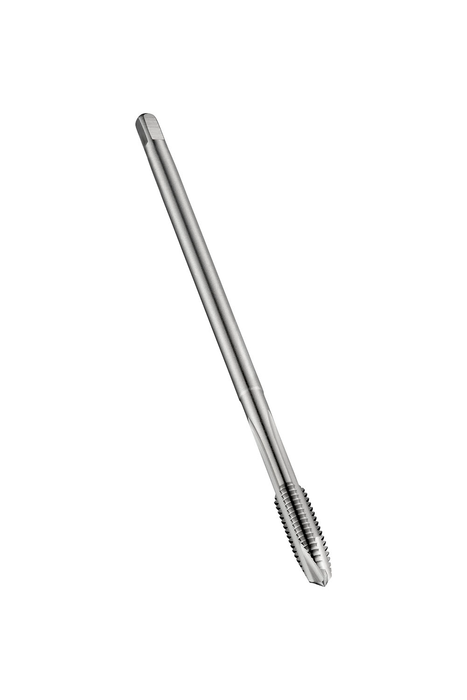

Long shank spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to ISO 2283 standard with 8.0mm shank and 6.3mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$68.59 - $68.59
$68.59
$68.59 - $68.59
$68.59
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

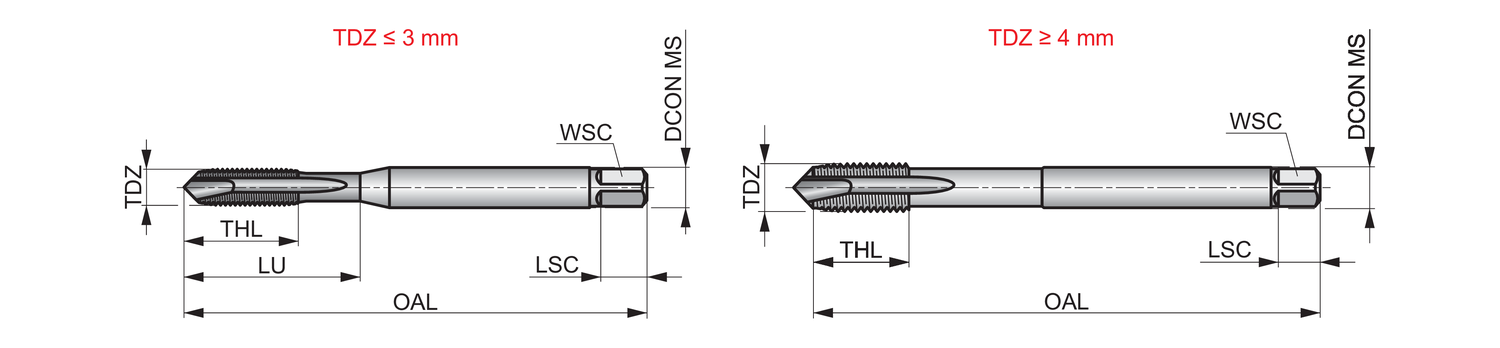

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 4.252

Connetion Diameter: 0.315

Tool Direction: Right

Diameter Size: 10

Pitch - mm: 1.5

Pitch - in: 0.0591

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 123997

EAN: 7320760123997

MFG Part Number: 5978068
