E620M4

E620M4

SKU DOR5978072
by Dormer Pramet
Primary Use: Possible Use:

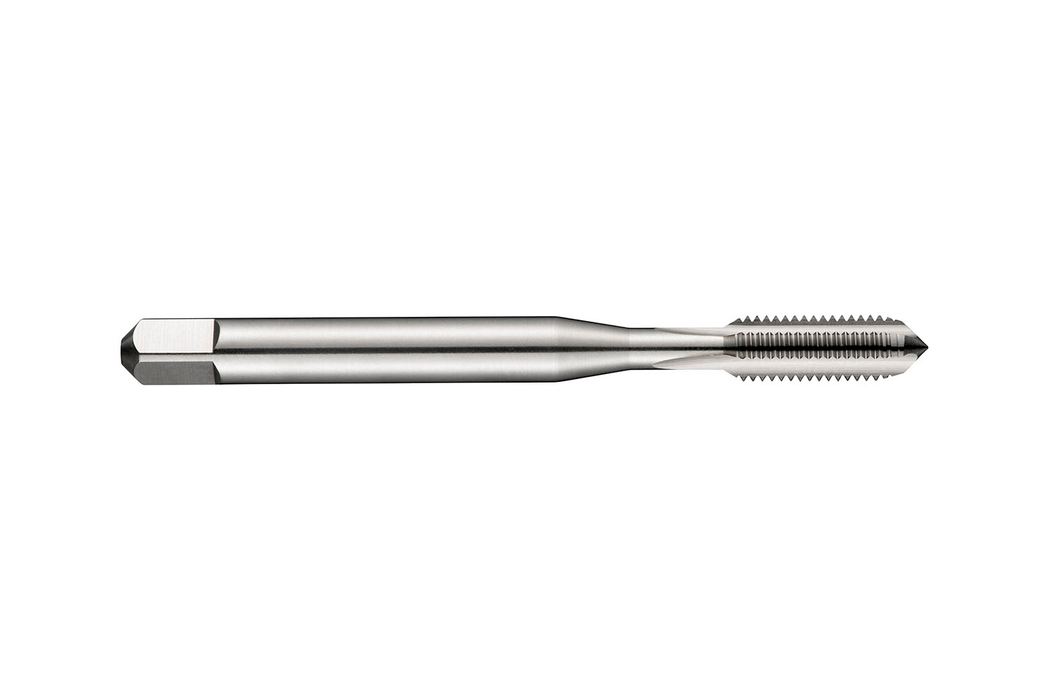

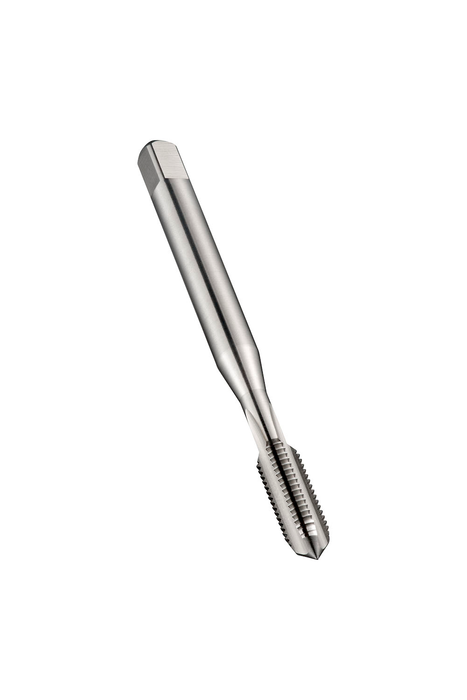

Straight flute tap with chamfer form C with a 2-3xP plug lead, for Einsatzgewinde Metrisch (metric Wire Insert thread) EGM4 with 0.70 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 5.0mm shank and 4.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$32.44 - $32.44
$32.44
$32.44 - $32.44
$32.44
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

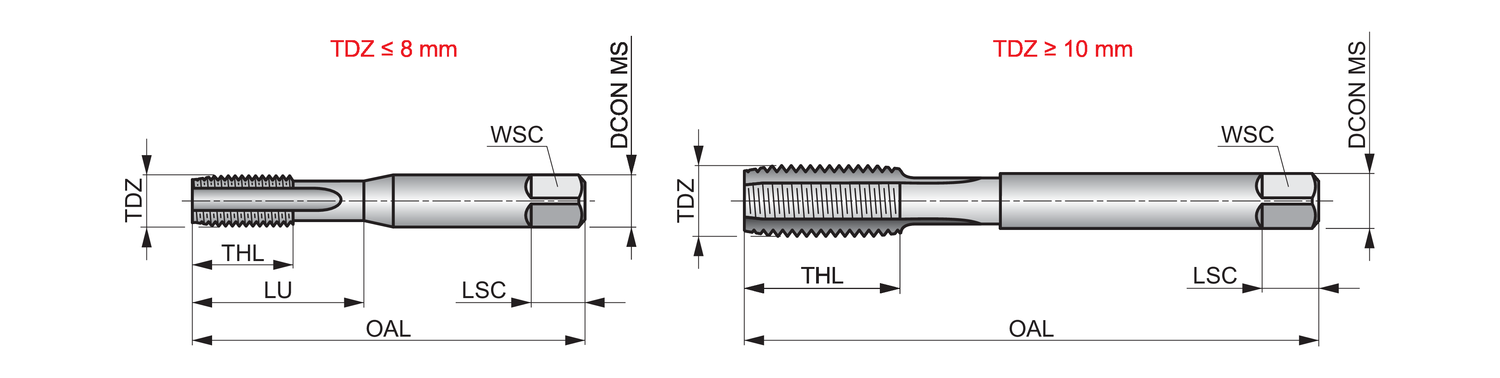

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 2.2835

Connetion Diameter: 0.1969

Tool Direction: Right

Diameter Size: 4

Thread Diameter - in: 0.1933

Thread Diameter - mm: 4.91

Pitch - mm: 0.7

Pitch - in: 0.0276

Thread Form: EGM - EGM (Wire Insert)

Shank: Cylindrical shank with Square

Usable Length: 0.7874

Grade: Bright

EDP: 384831

EAN: 7320760384831

MFG Part Number: 5978072
