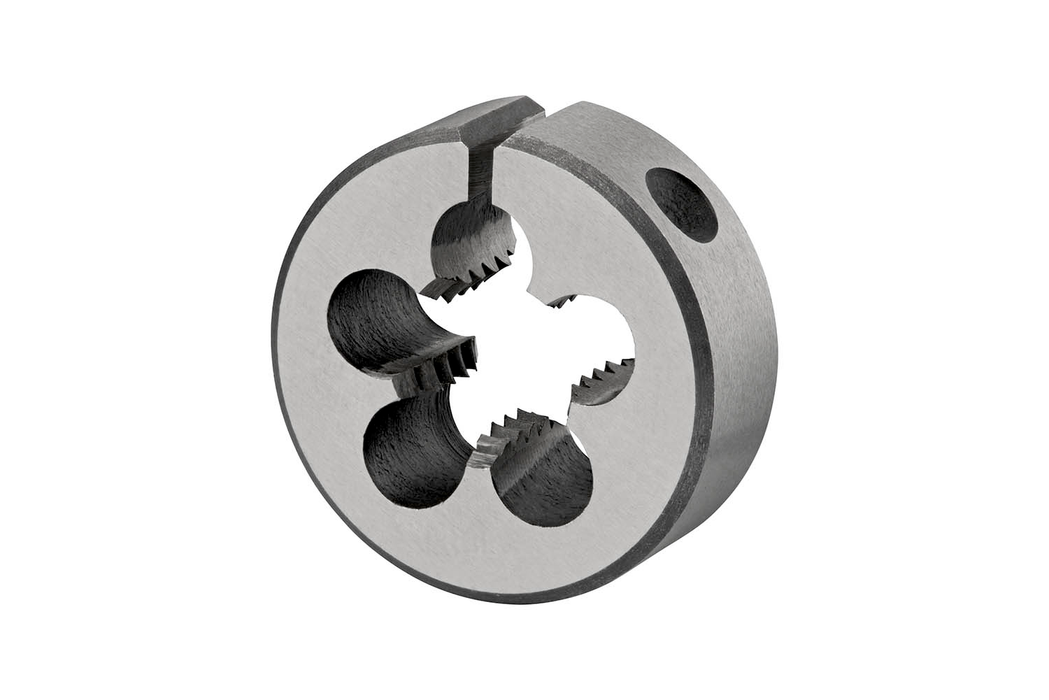

F310M6X.75X13/16

F310M6X.75X13/16

SKU DOR5978090
by Dormer Pramet
Primary Use:

Adjustable circular split die, for ISO-Metric Fine thread M6 with 0.75 mm pitch, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.15mm, dimensions according to BS 1127:1950 standard with 13/16" outside diameter and 1/4" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$124.74 - $124.74
$124.74
$124.74 - $124.74
$124.74
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

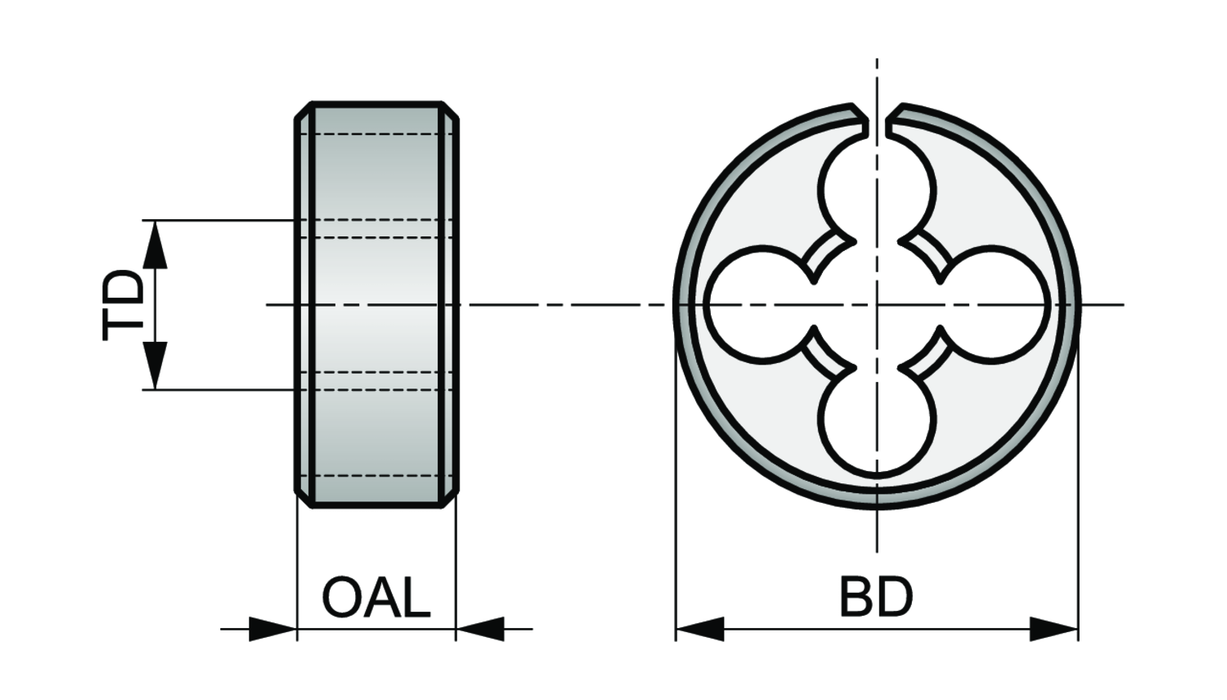

Material: HSS

Overall Length (OAL): 0.25

Tool Direction: Right

Diameter Size: 6

Thread Diameter - mm: 6.0

Pitch - mm: 0.75

Thread Form: MF - Metric fine

Grade: Bright

EDP: 205952

EAN: 7320760205952

MFG Part Number: 5978090
