E621M5

E621M5

SKU DOR5978285
by Dormer Pramet
Primary Use: Possible Use:

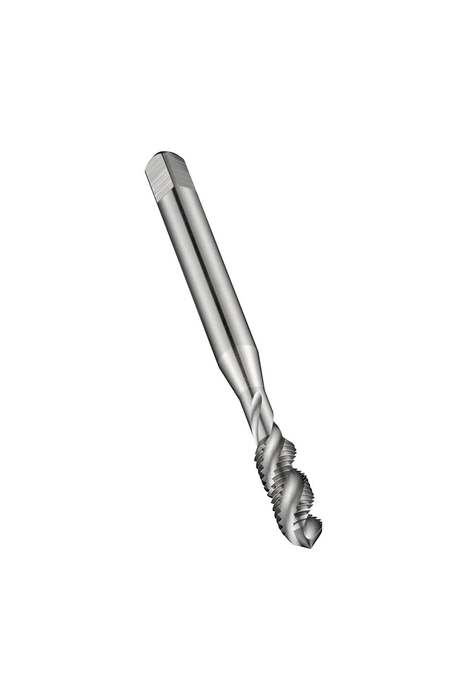

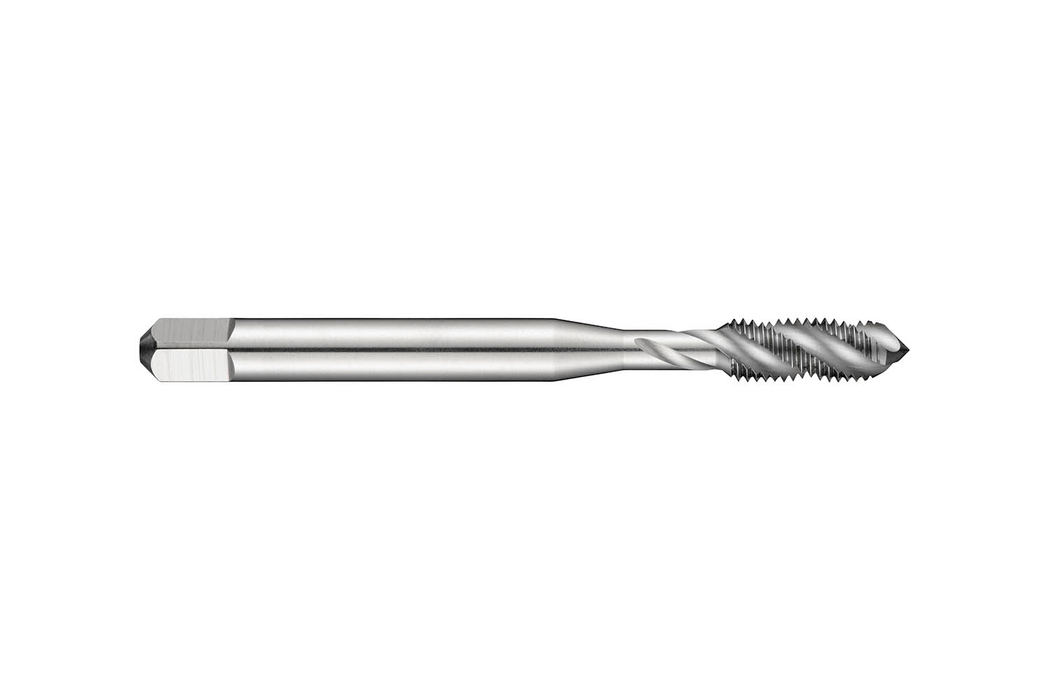

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Einsatzgewinde Metrisch (metric Wire Insert thread) EGM5 with 0.80 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 6.3mm shank and 5.0mm square drive, HSS with bright finish and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$59.87 - $59.87
$59.87
$59.87 - $59.87
$59.87
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

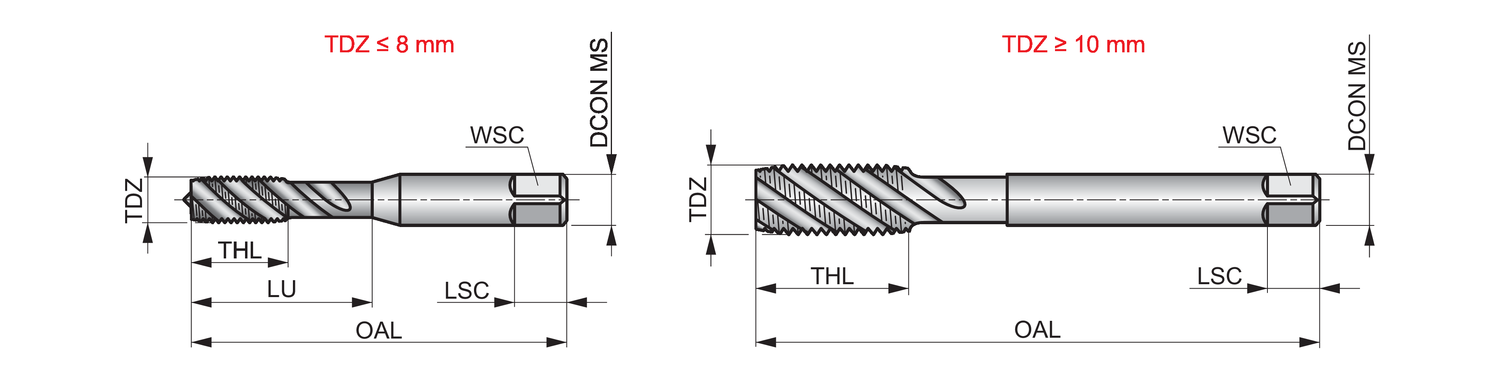

Material: HSS

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 2.5984

Connetion Diameter: 0.248

Tool Direction: Right

Diameter Size: 5

Thread Diameter - in: 0.2378

Thread Diameter - mm: 6.04

Pitch - mm: 0.8

Pitch - in: 0.0315

Thread Form: EGM - EGM (Wire Insert)

Shank: Cylindrical shank with Square

Usable Length: 1.0236

Grade: Bright

EDP: 384930

EAN: 7320760384930

MFG Part Number: 5978285
