E650M14

E650M14

SKU DOR5978313
by Dormer Pramet
Primary Use: Possible Use:

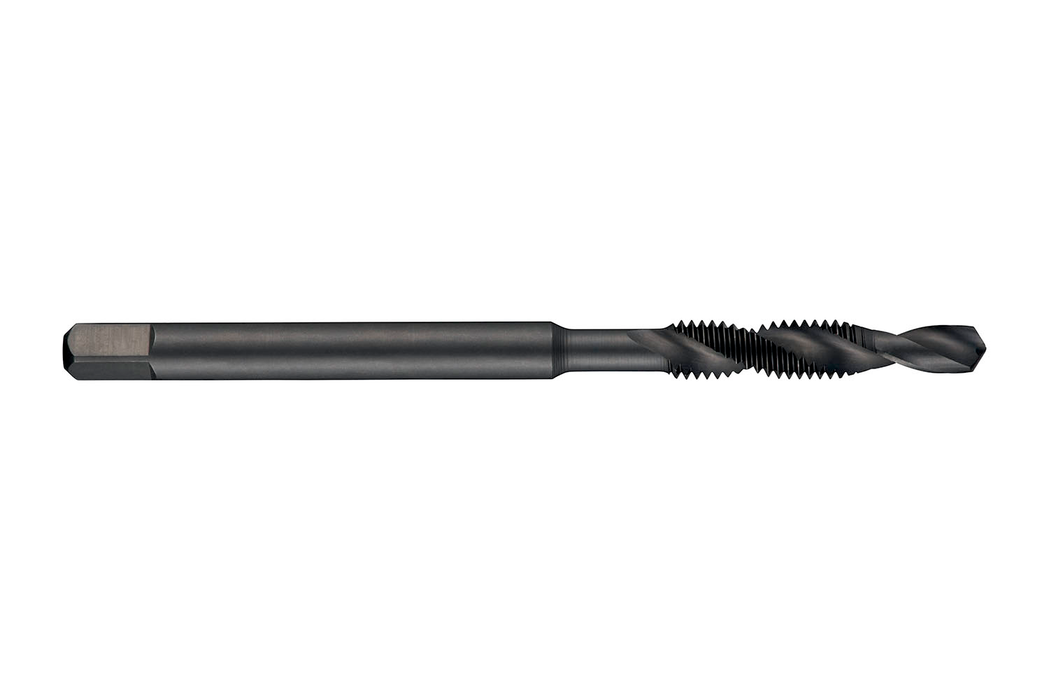

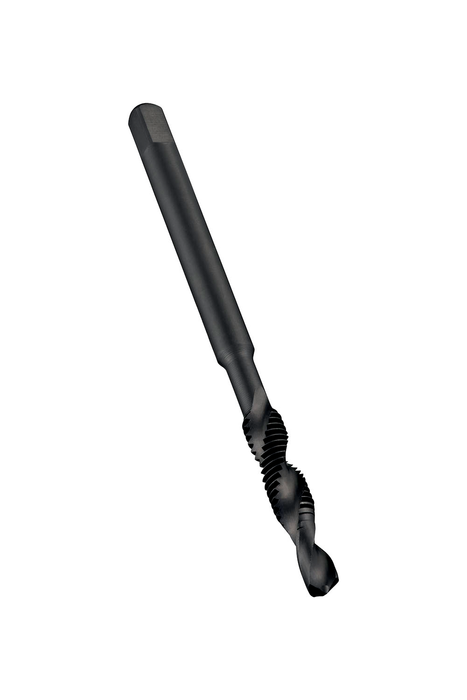

Combination drill-tap with a 30° spiral flute, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 11.2mm shank and 9.0mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$125.67 - $125.67
$125.67
$125.67 - $125.67
$125.67
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

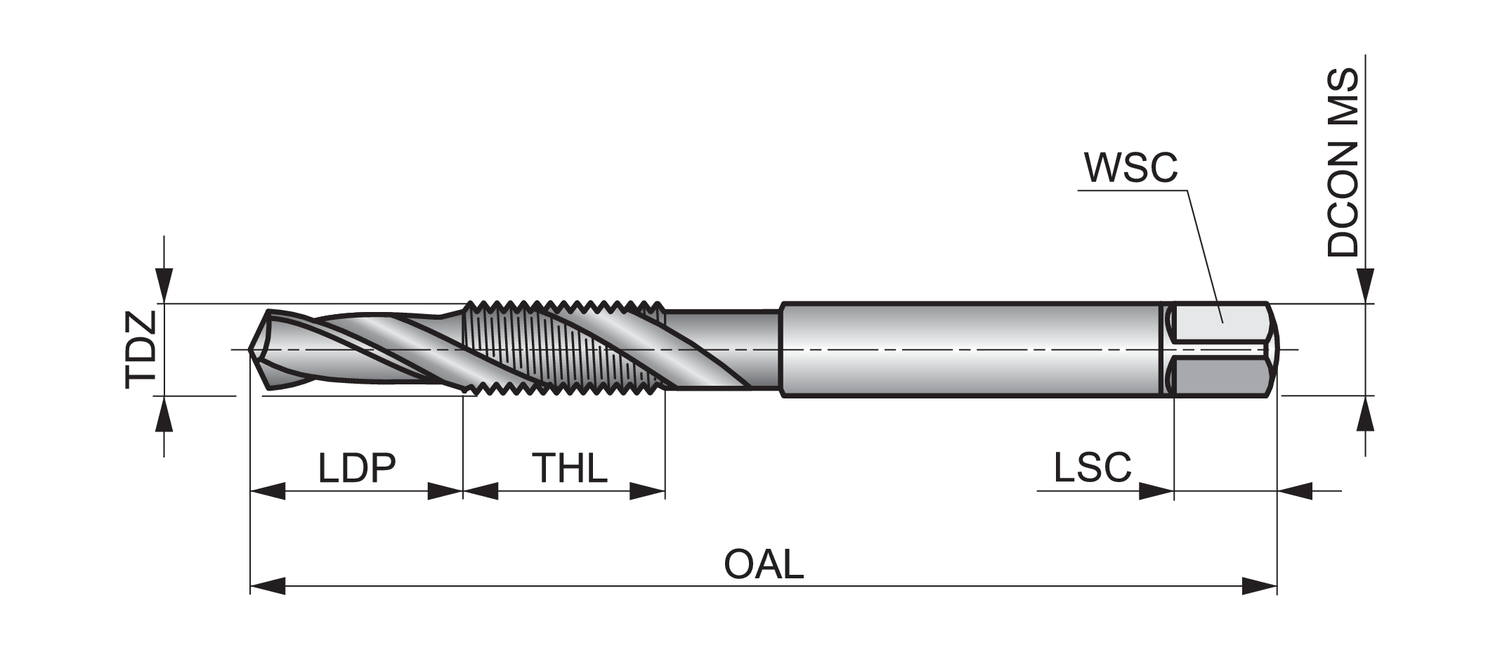

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 4.8425

Connetion Diameter: 0.4409

Tool Direction: Right

Diameter Size: 14

Thread Diameter - in: 0.4724

Thread Diameter - mm: 12.0

Pitch - mm: 2.0

Pitch - in: 0.0787

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 127537

EAN: 7320760127537

MFG Part Number: 5978313
