E650M8

E650M8

SKU DOR5978347
by Dormer Pramet
Primary Use: Possible Use:

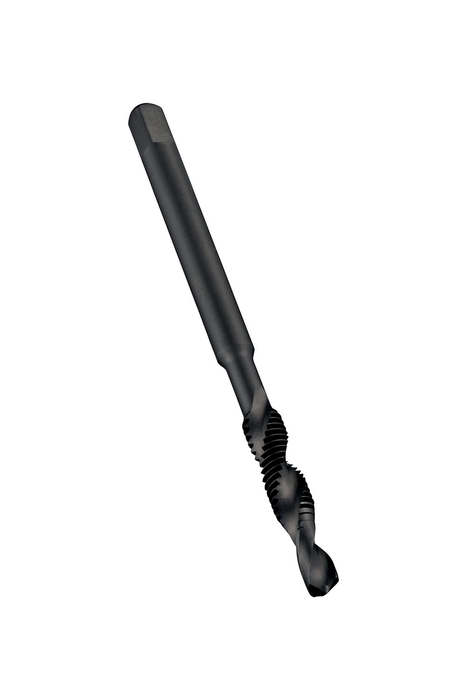

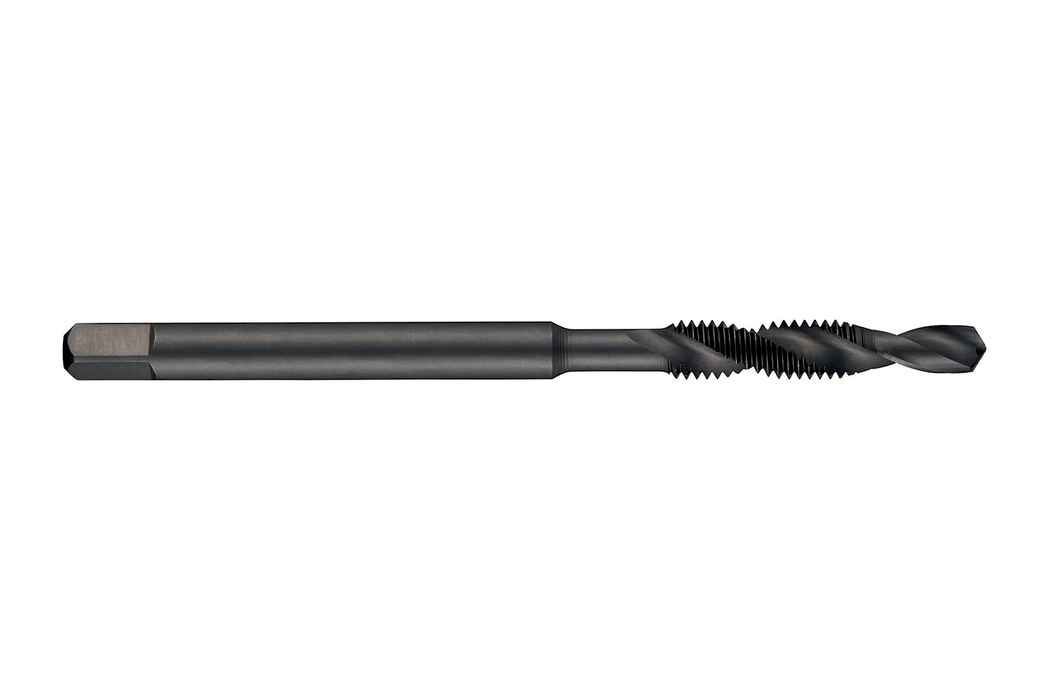

Combination drill-tap with a 30° spiral flute, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 8.0mm shank and 6.3mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$43.49 - $43.49
$43.49
$43.49 - $43.49
$43.49
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

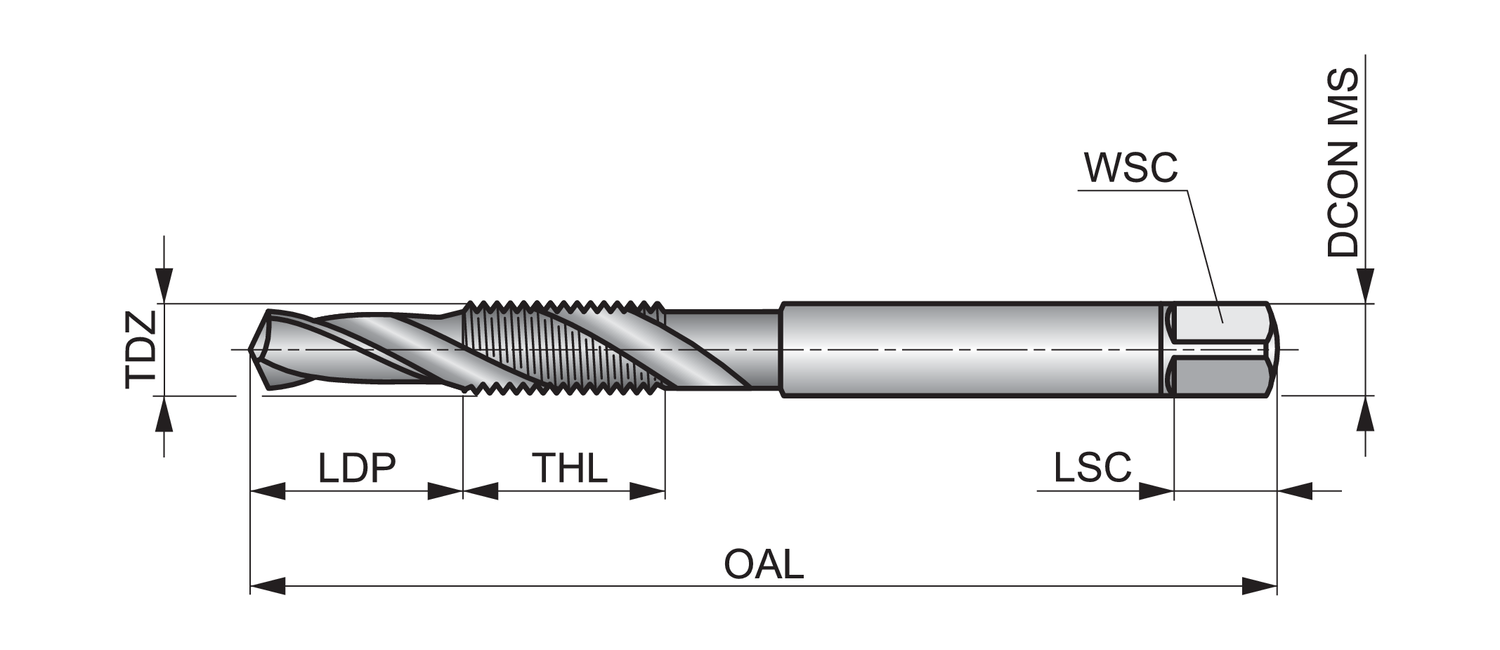

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 3.7795

Connetion Diameter: 0.315

Tool Direction: Right

Diameter Size: 8

Thread Diameter - in: 0.2677

Thread Diameter - mm: 6.8

Pitch - mm: 1.25

Pitch - in: 0.0492

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 127582

EAN: 7320760127582

MFG Part Number: 5978347
