E65112-24

E65112-24

SKU DOR5978360
by Dormer Pramet
Primary Use: Possible Use:

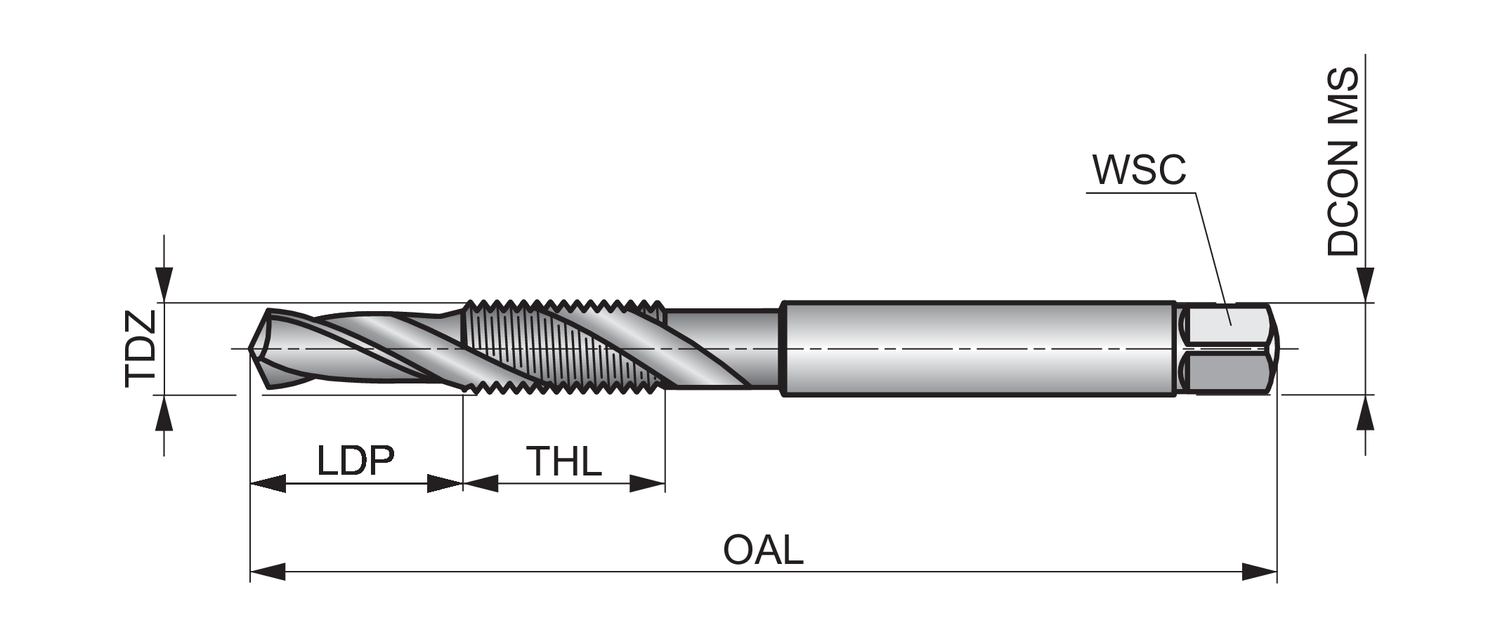

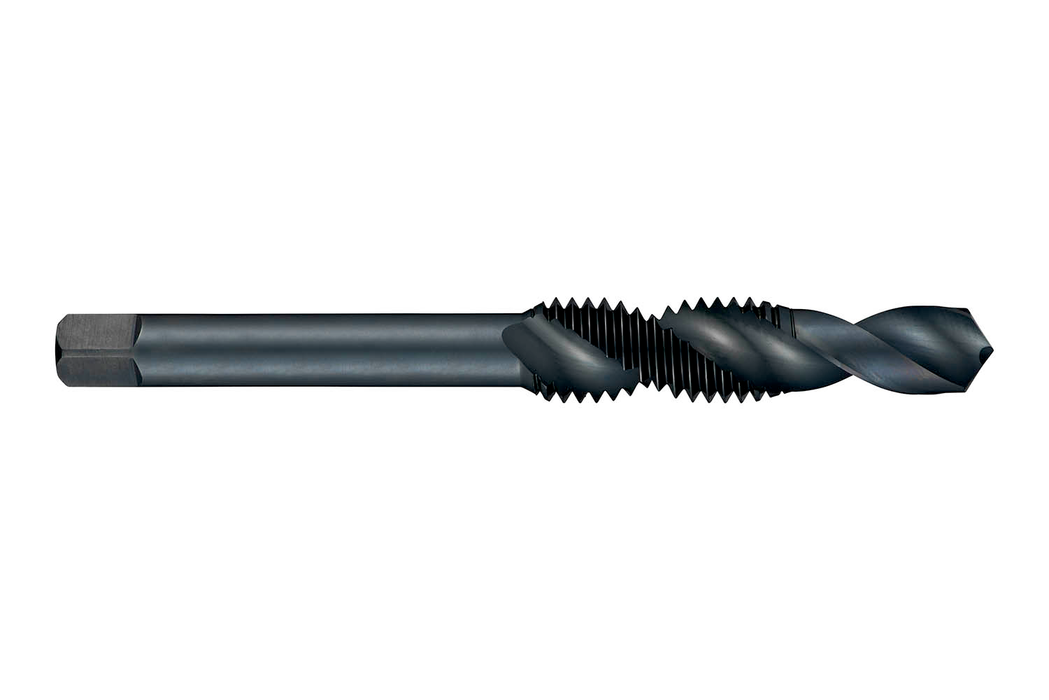

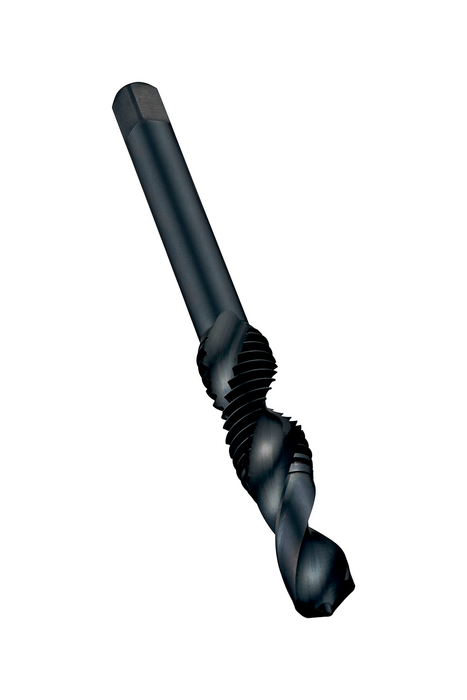

Combination drill-tap with a 30° spiral flute, for Unified National Coarse thread UNC 12 with 24 TPI and 2B class of fit, dimensions according to DORMER-DIN standard with 5.6mm shank and 4.5mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$32.96 - $32.96
$32.96
$32.96 - $32.96
$32.96
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 3.0315

Connetion Diameter: 0.2205

Tool Direction: Right

Diameter Size: 12

Thread Diameter - in: 0.1772

Thread Diameter - mm: 4.5

TPI: 24.0

Thread Form: UNC - Unified Coarse

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 273210

EAN: 7320760273210

MFG Part Number: 5978360
