E620M8

E620M8

SKU DOR5978371
by Dormer Pramet
Primary Use: Possible Use:

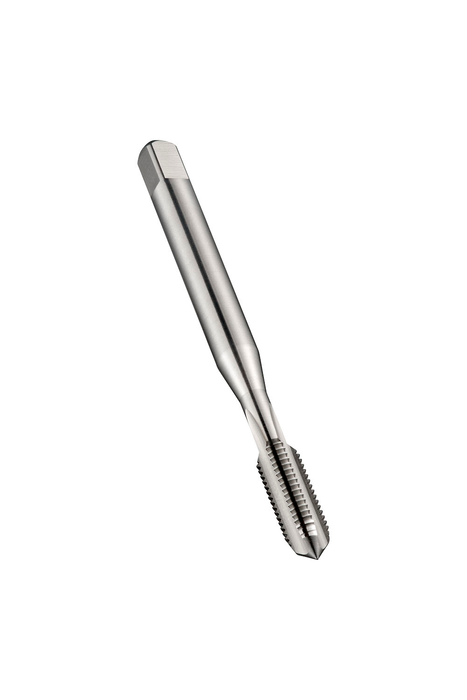

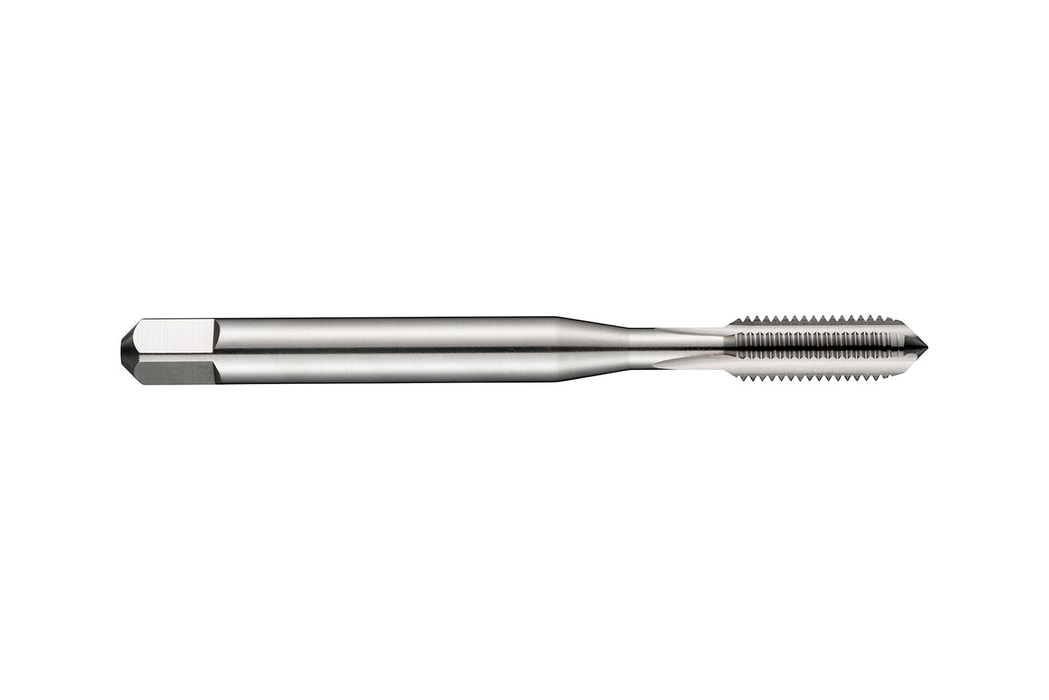

Straight flute tap with chamfer form C with a 2-3xP plug lead, for Einsatzgewinde Metrisch (metric Wire Insert thread) EGM8 with 1.25 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 10.0mm shank and 8.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$41.41 - $41.41
$41.41
$41.41 - $41.41
$41.41
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

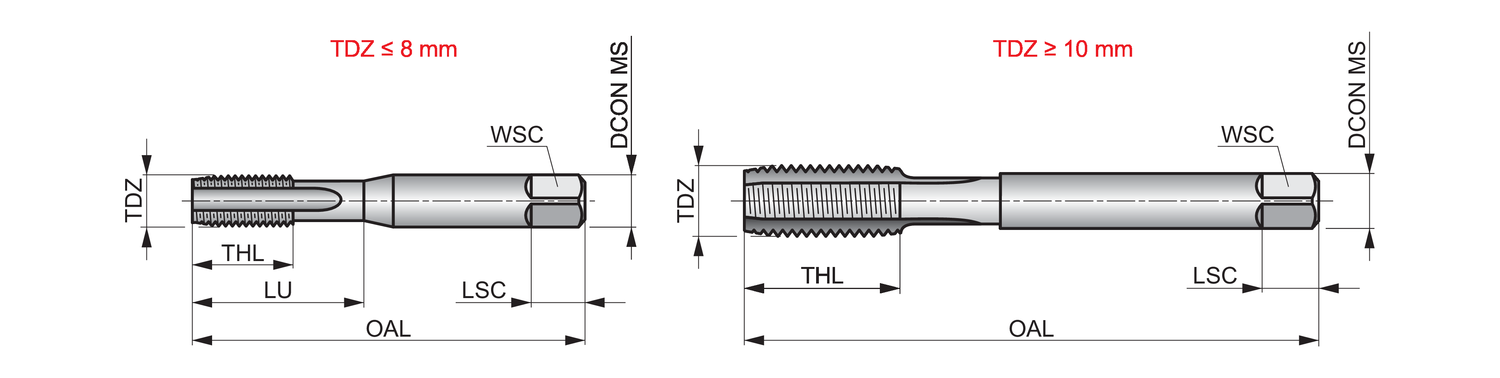

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 3.1496

Connetion Diameter: 0.3937

Tool Direction: Right

Diameter Size: 8

Thread Diameter - in: 0.3787

Thread Diameter - mm: 9.62

Pitch - mm: 1.25

Pitch - in: 0.0492

Thread Form: EGM - EGM (Wire Insert)

Shank: Cylindrical shank with Square

Usable Length: 1.2598

Grade: Bright

EDP: 384862

EAN: 7320760384862

MFG Part Number: 5978371
