E6531

E6531

SKU DOR5978386
by Dormer Pramet
Primary Use: Possible Use:

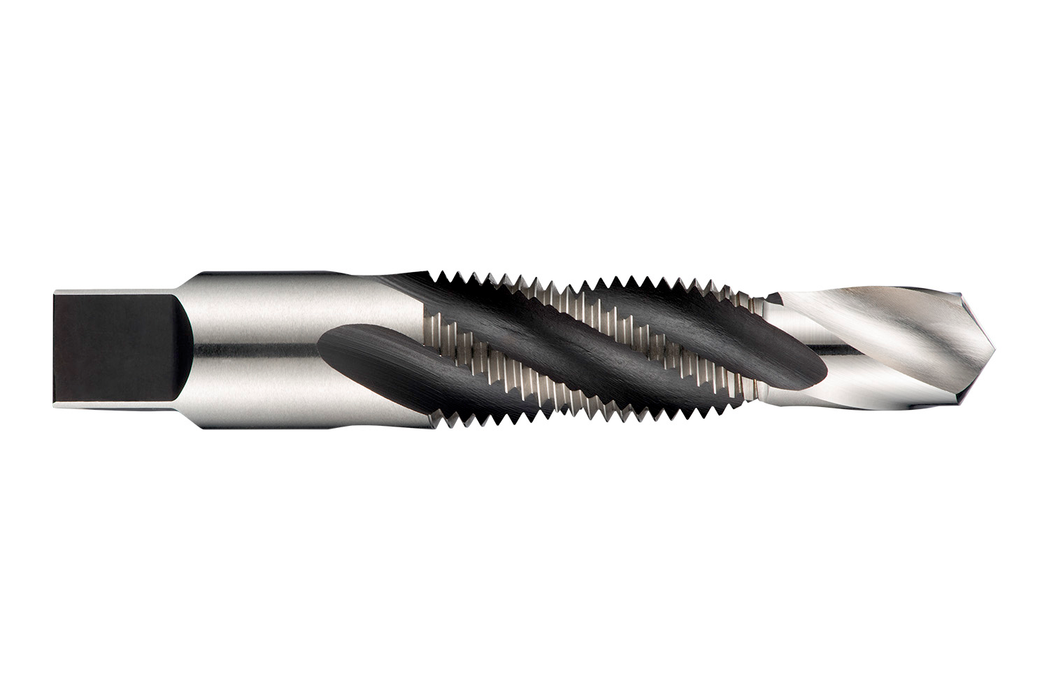

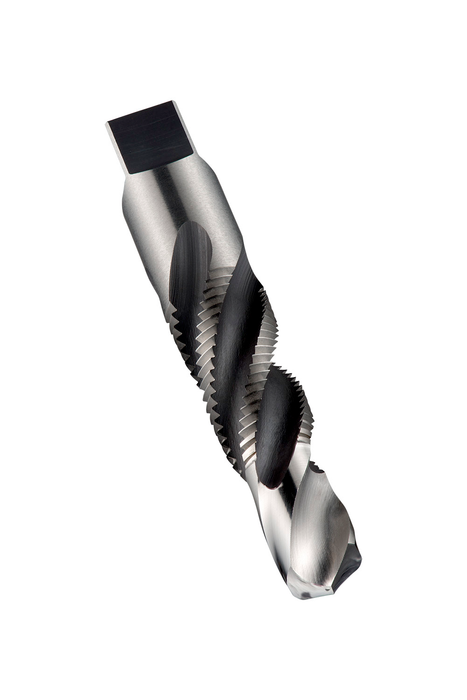

Combination drill-tap with a 27° spiral flute, for National Pipe Taper thread NPT 1" with 11.5 TPI and Normal class of fit, dimensions according to ANSI standard with 1.1250" shank and 1.1250" square drive, HSS with bright finish and 27° helix angle for 1.5xD through or blind hole threading in free machining steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$508.40 - $508.40
$508.40
$508.40 - $508.40
$508.40
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

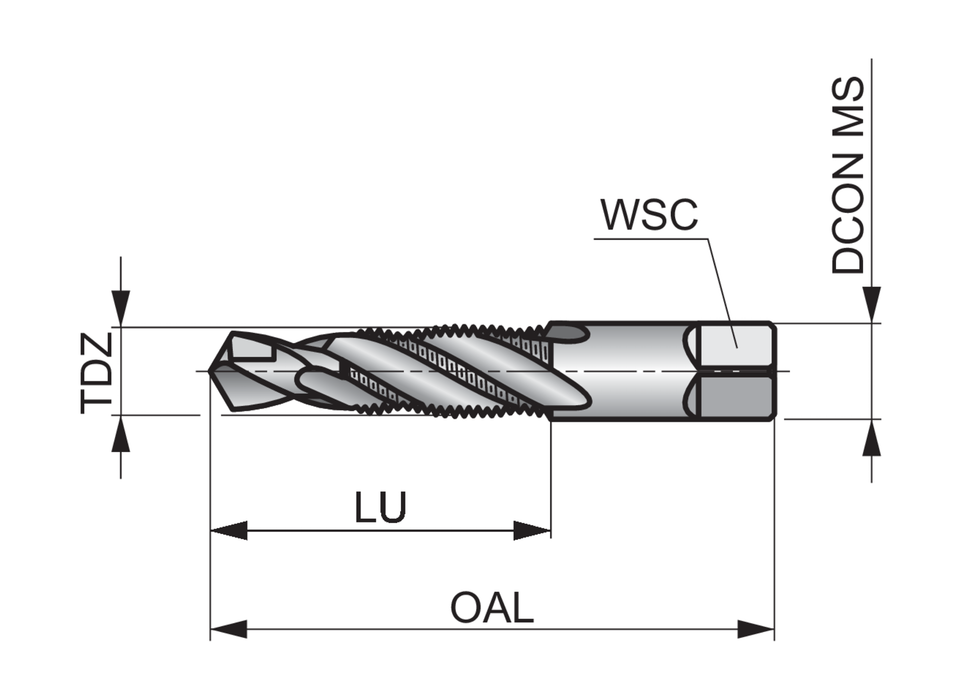

Overall Length (OAL): 5.375

Connetion Diameter: 1.125

Tool Direction: Right

Diameter Size: 1"

Thread Diameter - in: 1.1417

TPI: 11.5

Thread Form: NPT - National taper pipe

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 297247

EAN: 7320760297247

MFG Part Number: 5978386
